CWL Marine Horizontal Centrifugal General Pump

CWL Marine Horizontal Centrifugal General Pump

Overview

CWL series Marine centrifugal pumps are suitable for Marine fire pump, cooling pump, sanitary pump, domestic sewage pump and daily water pump.

When equipped with suction device, it can be used as bilge pump. It can also be used in factories, mines, urban water supply and rural irrigation

Model Explanation 32CWL-4

32—Inlet diameter 32 mm

CWL—Marine horizontal centrifugal pump

4—Integral of the pump specific speed divided by 10

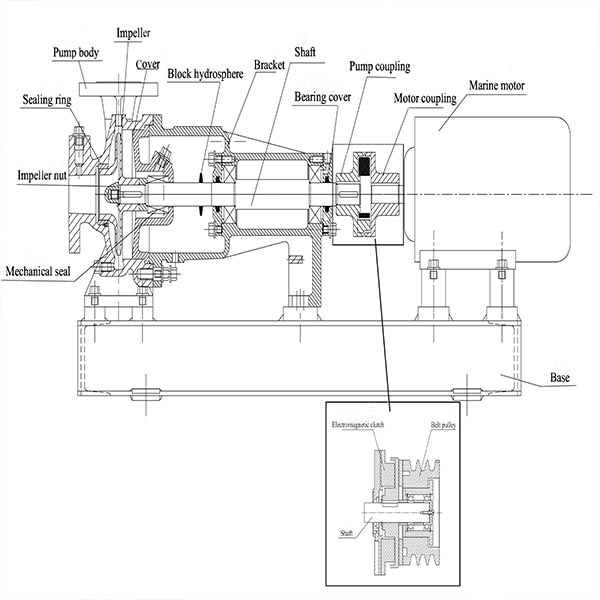

Structural Specifications

Performance Parameter

CWL	50HZ				60HZ				50HZ/60HZ
Type	Capacity (m3/h)	Head (m)	Power/Motor (kW)	Weight (kg)	Capacity (m3/h)	Head (m)	Power/Motor (kW)	Weight (kg)	Efficiency (%)	(NPSH)r (m)	Inlet/out dia. (mm)
32CWL-4	4	21	1.1/Y802-2H	62	5	30	2.2/Y90L-2H	72	53	4	32/25
32CWL-3	4	30	1.5/Y90S-2H	60	5	43	2.2/Y90L-2H	75	42	4	32/25
40CWL-5	8	21	1.1/Y80L2-2H	50	10	30	2.2/Y90L-2H	60	59	4	40/32
40CWL-4	8	30	2.2/Y90L-2H	65	10	43	3/Y100L-2H	77	50	4	40/32
40CWL-3	8	42	3/Y100L-2H	87	10	60	4/Y112M-2H	100	43	4	40/32
50CWL-6	12	21	1.5/Y90S-2H	60	14	30	3/Y100L-2H	75	69	4	50/32
50CWL-4.5	12	30	3/Y100L-2H	82	14	43	4/Y112M-2H	97	55	4	50/32
50CWL-4	12	42	4/Y112M-2H	101	14	60	5.5/Y132S1-2H	126	50	4	50/40
50CWL-8	21	21	2.2/Y90L-2H	65	25	30	4/Y112M-2H	90	67	4	50/40
50CWL-7	21	30	4/Y112M-2H	95	25	43	5.5/Y132S1-2H	120	63	4	50/40
50CWL-5	21	42	5.5/Y132S1-2H	125	25	60	7.5/Y132S2-2H	130	59	5	50/40
50CWL-3.5	21	60	7.5/Y132YS2-2H	134	25	86	15/Y160M2-2H	192	55	5	50/40
65CWL-11	35	21	4/Y112M-2H	96	43	30	7.5/Y132S2-2H	126	72	4	65/50
65CWL-8	35	30	5.5/Y132S1-2H	118	43	43	11/Y160M1-2H	173	70	4	65/50
65CWL-6	35	42	7.5/Y132S2-2H	131	43	60	15/Y160M2-2H	189	67	5	65/50
80CWL-14	60	21	5.5/Y132S1-2H	124	72	30	11/Y160M1-2H	179	75	4	80/65
80CWL-11	60	30	7.5/Y132S2-2H	132	72	43	15/Y160M2-2H	190	75	4	80/65
80CWL-8	60	42	11/Y160M1-2H	192	72	60	22/Y180M-2H	240	73	5	80/65
80CWL-6	60	60	18.5/Y160L-2H	224	72	86	30/Y200L1-2H	340	68	5	80/65
80CWL-5.5	60	75	22/Y180M-2H	260	72	108	37/200L2-2H	325	71	3.8	80/65
100CWL-18	100	21	11/Y160M1-2H	154	120	30	15/Y160M2-2H	212	78	4	100/80
100CWL-14	100	30	15/Y160M2-2H	213	120	43	22/Y180M-2H	252	78	4	100/80
100CWL-11	100	42	18.5/Y160L-2H	242	120	60	37/Y200L2-2H	365	77	5	100/80
100CWL-8	100	60	30/Y200L1-2H	255	120	86	55/Y250M-2H	440	75	5	100/80
100CWL-6	100	85	37/Y200L2-2H	350	120	122	75/Y280S-2H	640	71	5	100/80
150CWL-18	160	13	11/Y160M-4H	286	192	18.5	15/Y160L-4H	312	81	5	150/125
200CWL-12	300	30	37/Y225S-4H	493	360	43	75/Y280S-4H	526	81	5	200/150
200CWL-18	400	21	30/Y200L-4H	472	480	30	55/Y250M-4H	508	83	5	200/150

The Picture of CWL Marine Horizontal Centrifugal General Pump
