Accommodation Ladder for Vessels

Accommodation Ladder for Vessels

Description:

Accommodation Ladder is widely used on various of vessels. It is a kind of ladder with upper and lower platform that are attached to the side of a ship and is used to provide access between ship and dock. Our accommodation ladder is designed totally in consistent with the ISO standard and IMO standard. According to clients’ requirements, kinds of Classification Society’s are optional. It is flexible enough to rig the accommodation ladder alongside one of the ship’s sides or at an angle by adjusting the lower platform of the ladder and resting its quay roll on the jetty.

Features:

1. Material: aluminum

2. Step: fixed arc and anodized

3. Handrail: rope / aluminum

4. Length: customized

5. Usage Angle: 0-55 degree

6. Standard: ISO 5488-1979 & CB/T14360-93

7. Optional IACS Certificates: CCS, NK, RINA, BV, LR, DNV·GL, ABS, etc.

Reference Specification:

Number of Steps

L1 (mm)

Max. Height (H:mm)

L (mm)

H (mm)

Weight (kg)

12

3600

3500

5290

250

320

14

4200

4100

5890

250

330

16

4800

4590

6490

250

340

18

5400

5080

7090

250

530

20

6000

5800

7690

250

560

22

6600

6300

8290

250

580

24

7200

6800

8890

250

600

28

8400

7800

10090

250

780

32

9600

8800

11290

250

850

36

10800

9800

12490

320

890

40

12000

10800

13690

320

970

44

13200

11800

14890

350

1180

48

14400

12800

16090

350

1260

52

15600

13800

17290

420

1370

Optional IACS Certificates:

Products Showing:

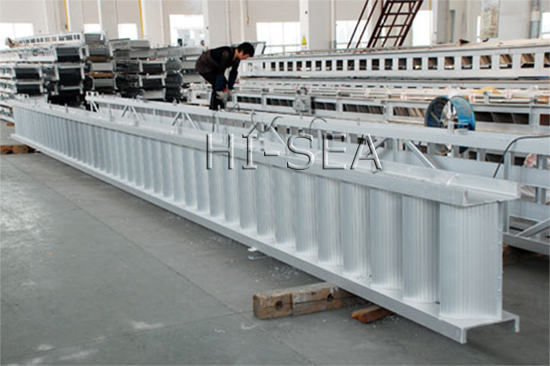

/uploads/image/20180606/Photo of Accommodation Ladder for Vessels.jpg

/uploads/image/20180606/Picture of Accommodation Ladder for Vessels.jpg

Displaying of Supporting Steel Parts and Winch:

/uploads/image/20180606/Supporting Steel Parts.jpg

/uploads/image/20180606/Winch.jpg
