1. 80 persons Marine Waste Water Processor Preface

(1) This marine wastewater treatment plant system is applicable to treat the sewage, which means human body wastes and the wastes from the toilets on vessels and which is also called "black water", to meet the effluent standards of IMO MEPC.159(55), and discharge the effluent to overboard. It is also applicable to treat galley & shower drainage which is called "grey water" on condition that the "grey water" should be pretreated or should select a bigger capacity model to match with.

(2) Ships Waste Water Treatment belongs to the key devices for prevention of pollution form shipsin seas and oceans according to the revised Annex IV of the International Convention of thePrevention of Pollution (MARPOL 73/78). The MEPC.2 (VI) resolution adopted on 3th, December,1976 is the present guidelines on implementation of effluent standards and performance tests for STP, which is called "old standards". This device is according to the MEPC.159(55) resolution enacted on 13 October 2006, which is called "new standards". The convention (MARPOL 73/78)provides that all STPs installed on board on or after 1 January 2010 should meet the MEPC.159(55)resolution.

(3) The SWCM type marine wastewater treatment plant uses activated sludge, contact oxidizing and principle of biologic membrane to digest the organic pollutant, which can treat sewage effectively and reach at the IMO new effluent standard or other stricter requirements.

2. 80 persons Marine Waste Water Processor Main Technical Characteristics

(1)Model: SWCM-80 Type
(2)Capacity: Rated capacity: 80persons
Max capacity: 86 persons
(3)Average treatment load: 6020L/d
(4)Discharge standard: The discharge water should meet the requirements of IMO MEPC.159（55） resolution.
TSS≯35mg/l
BOD5≯25 mg/l
COD≯125 mg/l
Coliform ≯100个/100ml
pH=6～8.5
(5)Discharge water pressure: 0.15 MPa
(6)Ambient temperature：5～50℃
(7)Relative humidity：≤95％
(8)Discharge style: Automatic discharge

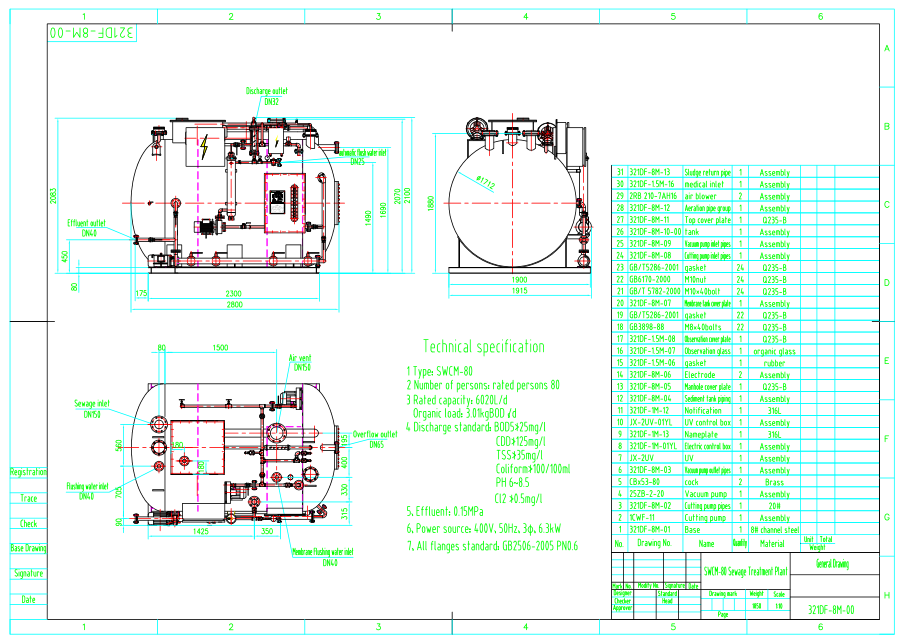

3. 80 persons Marine Waste Water Processor General Drawing

4. Several Class Certificates Supply

ABS, BV, DNV.GL, LR, RINA, NK, USCG, and CCS class certificates.
