5kN Electric Fixed Boom Crane

5kN Electric Fixed Boom Crane

Application

5kN Electric Fixed Boom Crane is designed for general cargo handling and use as marine, offshore, shipboard, and dock cranes. The term "fixed boom" indicates that the crane has a fixed-length boom that cannot be extended or retracted. This type of crane is often used in situations where a specific lifting height and reach is required. Without the knuckle function, it can't telescopic freely. Marine fixed boom cranes are available with electric motor.

Material

Carbon steel, stainless steel and aluminum.

Advantages and Featurres

1. Electric drive.

2. Working load from 0.5KN to 300KN.

3. Easy for maintenance, lubrication and inspection.

4. High strength construction, high efficiency gearbox.

5. Can be designed and manufacture to suit customers applications and special operating requirements.

6. General motor or explosion-proof motor.

7. Automatic & manual overload protection system.

8. Certificate: BV, LR, RINA...

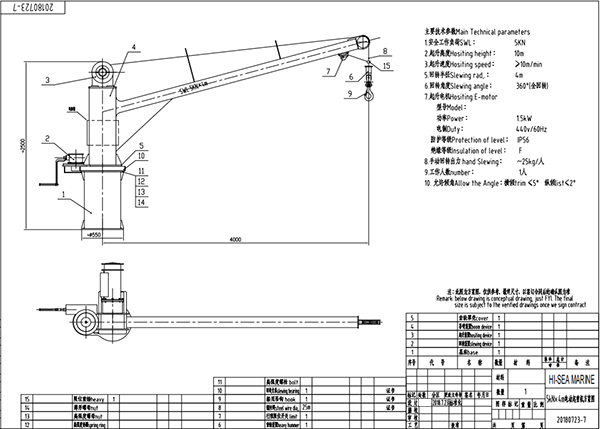

Drawing of 5kN Electric Fixed Boom Crane

Technical Parameter

Specifications
SWL	5KN
Working Radius	4m
Hoisting Speed	≥10m/min
Hoisting Height	10m
Slewing Angle	360°
Luffing Time	~120s
Tirm	≤2°
Heel	≤5°
Motor Power	1.5KW
Power source	440V, 60Hz, 3P
Protect Class	IP56
Insulate Class	F
