15KN Knuckle Boom Crane

15KN Knuckle Boom Crane

Application

15KN Knuckle Boom Crane is one of the most important equipment of every vessel, it's have widely applications, such as lifting....15KN knuckle boom crane works in the same way you bend your finger. The knuckles on the crane make it easy to fold and reduce its size. This kind of crane is suitable for the ship with small space, especially the marine area and small ship.

Material

Aluminum, carbon steel and stainless steel.

Advantages and Features

1. Contract structure, high strength;

2. Saving space, multi-function;

3. Easy for maintenance, lubrication and inspection.

4. Corrosion resistance, long lifespan.

5. Can be designed and manufacture to suit customers applications and special operating requirements.

6. Local control or remote control.

7. General motor or explosion-proof motor.

8. Automatic & manual overload protection system.

9. 360° continuous rotation with limits available

10. Certificate: ABS, BV, LR...

Drawing of 15KN Knuckle Boom Crane

Loading Curvy of 15KN Knuckle Boom Crane

Main specification

SWL	15KN-5m
Working Radius	2-5m
Hoisting Speed	0~12m/min
Hoisting Height	6.5m
Slewing Speed	0~1.2r/min
Slewing Angle	360°
Luffing Time	70s
Tirm	≤2°
Heel	≤5°
Motor Power	18.5KW
Motor Speed	1470r/min
Power source	380V/50Hz
Protect Class	IP56

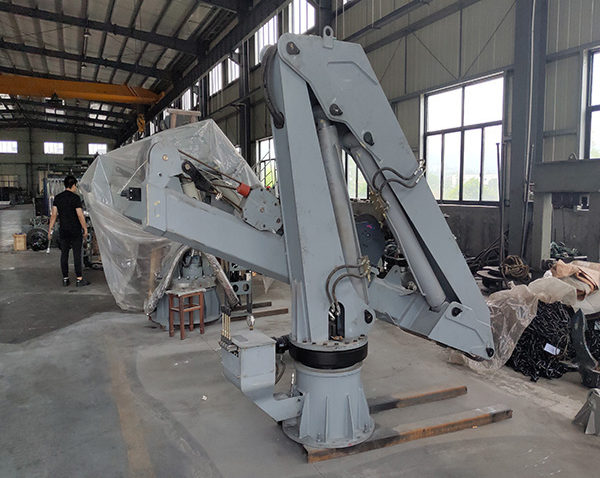

Finished Images of 15KN Knuckle Boom Crane
