0.5 m³ Hot Well Unit Module

0.5 m³ Hot Well Unit Module

Application

The marine hot well unit is suitable for steam condensate and boiler feed water systems of ships and drilling platforms. It is the essential equipment of steam condensate water closed loop circulatory system.

Technical Specifications
Type Hot-well Capacity m³ Cooled Area ㎡ Outline Dimension
0.5 0.5 2.0  1500*700*1050

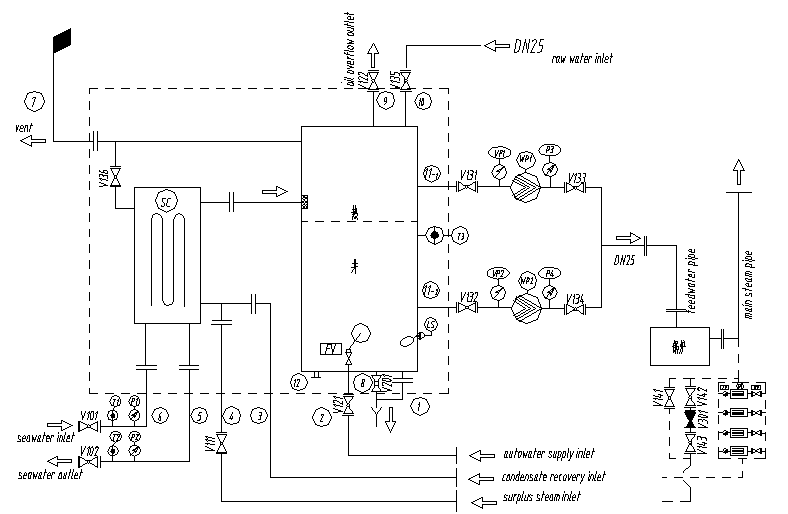

System Composition and Working Principle

The Unit is composed with public base, marine atmosphere condenser, condensate water observation cabinet, hot water well, automatic replenish water valve, thermometer, liquid level controller, valve an etc.

The Unit is necessary part of steam-condensate closed circulation system. The surplus steam produced by boiler and condensate-water produced when the steam passing through the steam using devices, they are cooled when passing through atmosphere condenser, then flow into hot well unit.
