YCB Series Marine Fuel Oil Pump

Introduction of YCB Series Marine Gear Fuel Oil Pump

YCB Series marine gear fuel oil pump applies to deliver non-corrosive lubricating-oil or equivalent liquid without solid particles and fibers at temperature below 300℃ and with the viscosity of 5×10-6～1.5×10-3m2s (5-1500cSt). Reducing the speed, the pumps can delivery the liquid that the viscosity can be up to 5×104cSt.

Model Explanation: YCB0.6-1.6

YCB—Arc gear pump(containing backflow valve)

0.6—Flow 0.6 m3/h

1.6—Exhaust Pressure 1.6MPa

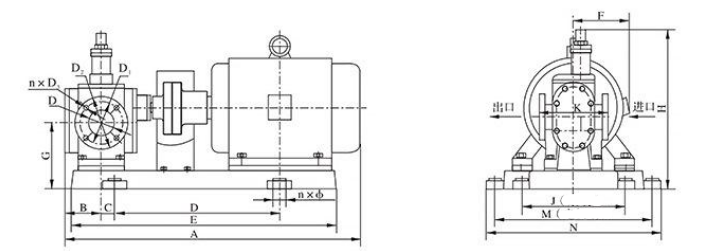

Structure Specifications

Performance Parameter

Type	Caliber	Capacity	Speed	Exhaust Pressure	(NPSH)r	Efficiency	Motor (kW)
		(m3/h)	(rpm)	(MPa)	(m)	(%)	(Hz)	Power	Type
YCB0.6-0.6	φ25	0.6	910	0.6	5.5	60	50	0.75	Y90S-6
		1	1390				50	0.75	Y802-4
		0.7	1130				60	0.75	Y90S-6
		1.2	1710				60	0.75	Y802-4
YCB0.6-1.6	φ25	0.6	910	1.6	7	70	50	1.1	Y90L-6
		1	1400				50	1.5	Y90L-4
		0.7	1130				60	1.1	Y90L-6
		1.2	1710				60	1.5	Y90L-4
YCB1.6-0.6	φ32	1.6	910	0.6	5.5	63	50	0.75	Y90S-6
		2.5	1400				50	1.1	Y90S-4
		1.9	1130				60	1.1	Y90L-6
		3	1710				60	1.1	Y90L-4
YCB1.6-1.6	φ32	1.6	940	1.6	7	71	50	2.2	Y112M-6
		2.5	1400				50	4	Y112M-4
		1.9	1150				60	2.2	Y112M-6
		3	1750				60	4	Y112M-4
YCB3.3-0.6	φ40	3.3	940	0.6	5	60	50	1.5	Y100L-6
		5	1420				50	2.2	Y100L1-4
		4	1150				60	1.5	Y100L-6
		6	1730				60	2.2	Y100L1-4
YCB3.3-1.6	φ40	3.3	960	1.6	7	72	50	5.5	Y132M2-6
		5	1440				50	7.5	Y132M-4
		4	1170				60	5.5	Y132M-6
		6	1750				60	7.5	Y132M-4
YCB4-0.6	φ50	4	940	0.6	5	60	50	1.5	Y100L-6
		6	1420				50	2.2	Y100L1-4
		4.8	1150				60	2.2	Y112M-6
		7.2	1730				60	3	Y100L2-4
YCB4-1.6	φ50	4	960	1.6	7	72	50	5.5	Y132M2-6
		6	1440				50	7.5	Y132M-4
		4.8	1170				60	5.5	Y132M-6
		7.2	1750				60	7.5	Y132M-4
YCB8-0.6	φ65	8	960	0.6	5	61	50	3	Y132S-6
		12	1440				50	5.5	Y132S-4
		9.6	1170				60	4	Y132M1-6
		14.4	1750				60	5.5	Y132S-4
YCB8-1.6	φ65	8	970	1.6	7	75	50	11	Y160L-6
		12	1460				50	15	Y160L-4
		9.6	1170				60	11	Y160L-6
		14.4	1760				60	15	Y160L-4
YCB10-0.6	φ65	10	960	0.6	5	62	50	4	Y132M1-6
		15	1440				50	5.5	Y132S-4
		12	1170				60	5.5	Y132M2-6
		18	1750				60	7.5	Y132M-4
YCB10-1.6	φ65	10	970	1.6	7	76	50	11	Y160L-6
		15	1470				50	15	Y160L-4
		12	1170				60	11	Y160L-6
		18	1770				60	18.5	Y180M-4
YCB20-0.6	φ80	20	970	0.6	5	68	50	7.5	Y160M-6
		24	1170				60	7.5	Y160M-6
YCB25-0.6	φ100	25	970	0.6	5.5	69	50	11	Y160L-6
		30	1170				60	11	Y160L-6
YCB30-0.6	φ100	30	970	0.6	5.5	65	50	11	Y160L-6
		36	1170				60	11	Y160L-6
YCB40-0.6	φ125	40	970	0.6	5.5	66	50	15	Y180L-6
		48	1180				60	15	Y180L-6
YCB50-0.6	φ125	50	970	0.6	5.5	66	50	22	Y200L2-6
		60	1180				60	22	Y200L2-6
YCB60-1	φ125	60	970	1	5.5	65	50	30	Y225M-6
		73	1180				60	37	Y250M-6
YCB80-0.6	φ150	80	970	0.6	5.5	65	50	30	Y225M-6
		97	1180				60	37	Y250M-6

Picture of YCB Marine Fuel Oil Pump
