Welded Opening Ship Window is a kind of welded ship window with storm cover. It can be opened. Used on sea-going vessels, naval vessels and inland ships, this kind of window can be made of aluminum, brass and steel, as different types required. Clear size and Class Society’s Certificates are selectable. Glass is transparent or frosting. Products are produced high quality, up to the standard of GB/T14413-93.

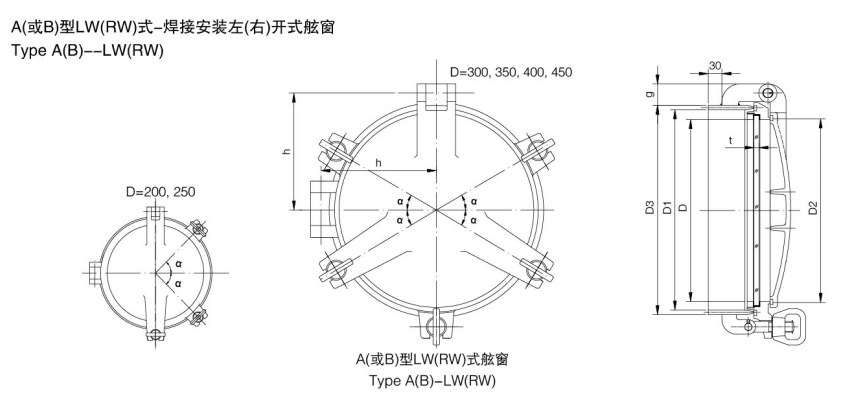

Drawing:

/uploads/image/20180724/Drawing of Welded Opening Ship Window.jpg

Dimensions:

clear size D D1 D2 D3 D4 D5 h t gmax bolt cutout in steel wall
A B whorl qty
Φ200 Φ245 Φ204 Φ250 Φ350 Φ310 155 10 8 50 M16(12) 8 253
Φ250 Φ295 Φ254 Φ305 Φ400 Φ364 182 12 8 47.5 M16 8 308
Φ300 Φ350 Φ304 Φ360 Φ450 Φ414 207 15 10 45 M16 12 363
Φ350 Φ400 Φ354 Φ410 Φ500 Φ464 232 15 12 45 M18 12 413
Φ400 Φ450 Φ404 Φ460 Φ550 Φ514 257 19 12 45 M18 12 463
Φ450 Φ500 Φ454 Φ510 Φ600 Φ564 282 - 15 45 M20 12 513

heavy & medium


clear size D D1 D3 D4 D5 h gmax bolt cutout in steel wall
t whorl qty
Φ200 Φ245 Φ250 Φ350 Φ310 155 8 50 M16(12) 8 253
Φ250 Φ295 Φ305 Φ400 Φ364 182 8 47.5 M16 8 308
Φ300 Φ350 Φ360 Φ450 Φ414 207 10 45 M16 12 363
Φ350 Φ400 Φ410 Φ500 Φ464 232 12 45 M18 12 413
Φ400 Φ450 Φ460 Φ550 Φ514 257 12 45 M18 12 463
Φ450 Φ500 Φ510 Φ600 Φ564 282 15 45 M20 12 513

light


Optional Certificates: CCS, NK, BV, RINA, RMRS, IRS, LR, ABS, DNV.GL
