Type A Aluminum Honeycomb Wall Panel

Type A Aluminum Honeycomb Wall Panel

1. Introduction:

Aluminum honeycomb panel is a high-end building decoration material, which was only used in the aerospace field with high requirements.

The surface layer of this board is an aluminum alloy sheet, and the middle layer is a honeycomb structure made of aluminum foil, which has excellent rigidity and is currently the best product among metal curtain wall materials.

This product is widely used in modern building decoration, trains, automobiles and ships and other manufacturing industries.

2. Features:

Lightweight, high strength

Not easy to deform

Sound insulation, anti-vibration, fireproof and moisture-proof

Easy to install and maintain

The finish paint is durable, resistant to weathering and chemical corrosion

Durable

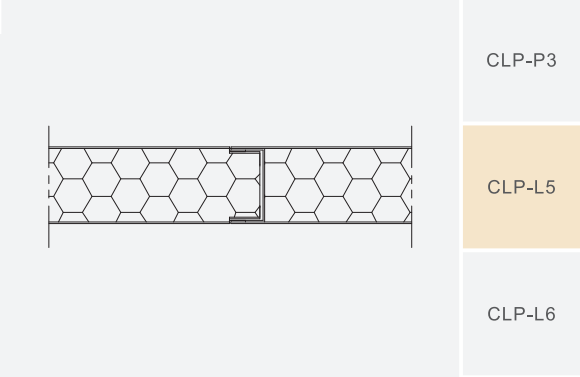

3. Section:

4. Technical Parameters:

Type	CLP-P3	CLP-L5	CLP-L6	CLP-P4	CLP-L10	CLP-L9
Fire Class	B-15	B-0	B-0	B-0	/	/
Sound Reduction	/	/	/	/	/	/
Weight	13.1kg/㎡	12.4kg/㎡	12.2kg/㎡	7.4kg/㎡	6.8kg/㎡	6.7kg/㎡
Thickness	50mm	30mm	25mm	50mm	30mm	25mm
Core material	Aluminum Honeycomb
Surface finish	PVC film/powder pained/galvanized steel plate			PVC film/powder pained/aluminum plate
Dimension	Thickness*550mm Width*Required Length (Max 3500mm)
Tolerances	Width(-1,0), Height±3, Thickness(-1,0)

5. Product Showing:
