TONGCHAI Series Industrial Genset

TONGCHAI Series Industrial Genset

Application
The series products are using the engine from NanTong Diesel Engine Co.,Ltd.,this series is suitable for the authorities,enterprises,buildings,schools,hotels,banks,post and telecommunication,construction and power generation equipment or standby emergency power.The power of products covers 100KW-630KW, each component of the unit is installed on the public plate,compact structure,strong bearing capacity,highly enjoyed by the majority of users.

Features
1.The engines are approved by ISO9001 international standard.
2.High quality,personalized products and promt,attetive,professional pre-sale and after-sale.
3.Powered by WEICHAI engine coupled with Marathon alternator,Sunvim,Stamford,Siemens alternator are optional.

Technical Parameter

Main technical data of Genset
Model	Related Output (KW/KVA)	Cylinder number	Displacement (L)	piston Stroke (mm)	Fuel Consumption (g/kw.h)
HS-100	100/125	6	8.6	135/140	≤199
HS-120	120/150	6	8.6	135/140	≤199
HS-150	150/187.5	6	12.9	135/140	≤199
HS-200	200/250	6	12.9	135/150	≤199
HS-250	250/312.5	6	12.9	135/168	≤199
HS-300	300/375	12	25.8	138/168	≤199
HS-350	350/437.5	12	25.8	138/168	≤199
HS-400	400/500	12	25.8	138/168	≤198

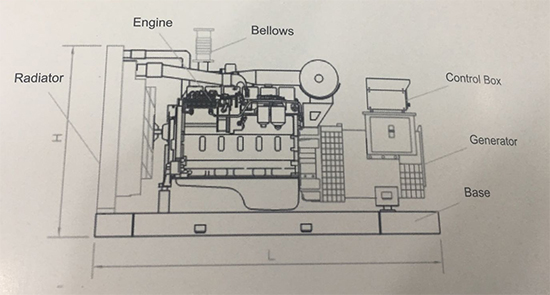

Outside Viewing
