Stag Horn Type Bollard

Stag Horn Type Bollard

Description:

Mooring bollards have various types. They are different in shapes, load ratings and materials. Stag horn bollard is stag horn shaped type dock bollard. It is commonly used to guarantee the security of marine vessels by mooring ropes. We also supply other shapes of dock bollards for your choice: K head dock bollard, T head dock bollard, J type dock bollard, R type dock bollard, single bitt bollard, etc.. If you are interested in any of our products, please feel free to contact us.

Features:

A Stag Horn Type Bollard is a type of marine bollard that is used for mooring ships and boats. Here are some of its features:

1. Shape: The Stag Horn Type Bollard gets its name from its shape, which resembles the antlers of a stag or deer. It is also sometimes called a double bollard because of its two horns.

2. Material: Stag Horn Type Bollards are typically made of cast iron, cast steel, or ductile iron. Some modern bollards may also be made of aluminum or other lightweight materials.

3. Capacity: The capacity of a Stag Horn Type Bollard depends on its size and the material it is made of. It is designed to withstand the forces of a ship or boat pulling against it, so it must be strong enough to resist bending or breaking.

4. Installation: Stag Horn Type Bollards are typically installed on a quay or wharf using bolts or other fasteners. They may also be embedded in concrete for added stability.

5. Function: The primary function of a Stag Horn Type Bollard is to secure a ship or boat to a quay or wharf. The horns of the bollard are designed to allow for easy tying and untying of ropes or cables.

5. Size: Stag Horn Type Bollards come in a range of sizes to accommodate different types of ships and boats. They can range from a few inches in diameter to several feet.

6. Maintenance: Like all marine equipment, Stag Horn Type Bollards require regular maintenance to ensure they remain in good condition. This may include regular inspections, cleaning, and lubrication.

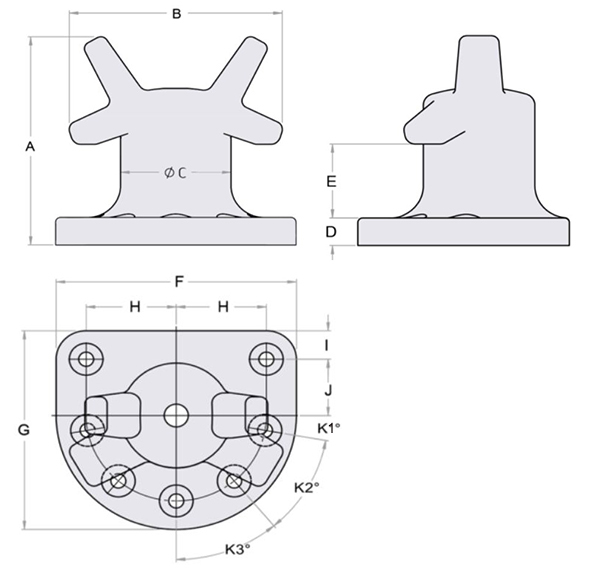

Drawing of Stag Horn Type Bollard:

Parameters of Stag Horn Type Bollard:

Capacity

(Tons)

A

B

C

D

E

F

G

H

I

J

K1

K2

K3

Bolt

10T

320

320

160

40

125

320

270

120

40

70

30

60

-

M20*5(450mm)

15T

385

410

210

45

145

420

355

160

50

95

30

60

-

M24*5(500mm)

20T

400

415

210

50

150

530

365

165

50

100

30

60

-

M24*5(500mm)

30T

430

455

230

55

165

450

380

170

55

100

30

60

-

M30*5(600mm)

50T

525

500

300

65

195

620

525

240

70

145

30

60

-

M36*6(700mm)

75T

580

630

320

75

215

650

550

255

70

155

15

50

25

M42*6(800mm)

100T

660

730

370

80

250

780

660

300

90

170

10

40

40

M42*7(800mm)

125T

705

790

400

85

275

840

710

320

100

190

10

40

40

M48*7(900mm)

150T

750

850

430

90

290

900

760

350

100

210

10

40

40

M48*7(900mm)

200T

800

900

460

100

310

990

850

380

115

245

38

36

18

M56*8(1000mm)

Features:

Model Type: Stag Horn Type Bollard;

Bolts Quantity: 5-8;

Material: Casting Steel, Casting Iron, Ductile Iron;

Certificates: CCS, ABS, BV, LR, NK, RINA, etc..

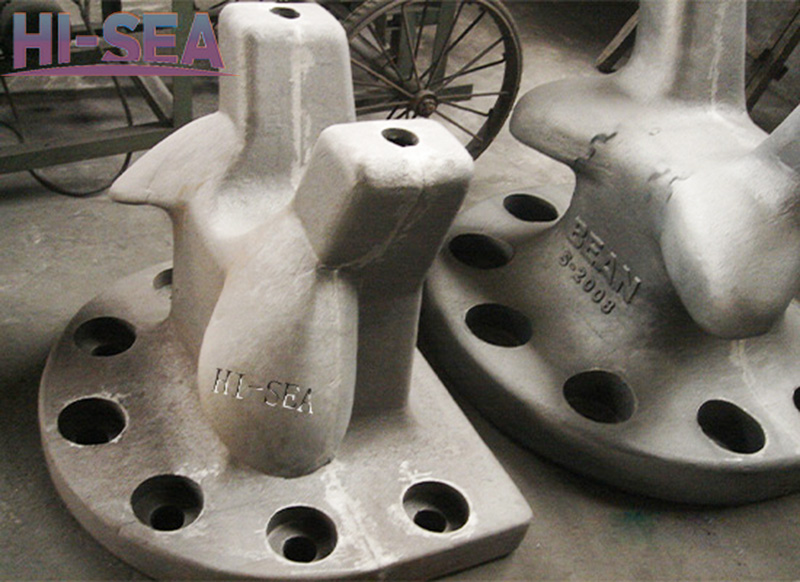

Stag Horn Type Bollard before Painted:
