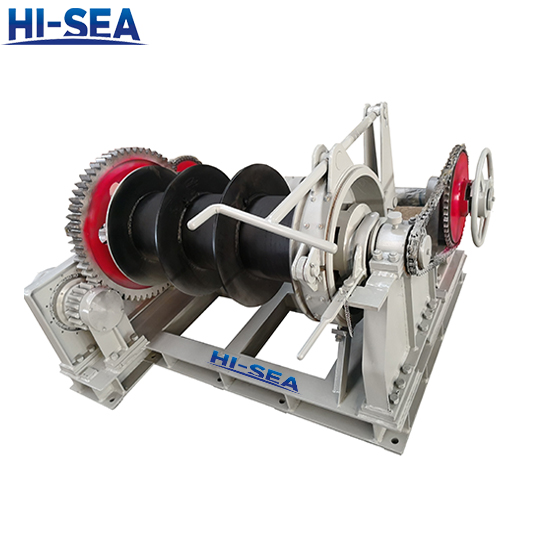

Single Warping Head Windlass

Single Warping Head Windlass

Application
Windlass is installed in the ship's stern main deck used for ship setting sailing and anchor mooring.We supply various types of marine windlass,such as symmetrical windlass,single electric windlass,single hydraulic windlass,symmetrical hy-combined windlass mooring winch,etc.

Advantages
HI-SEA marine's line of anchor windlass offer all kinds of models to meet your anchor qpplication.Electric,diesel or hydraulic drives are available along with warping drum.The brakes are easily adjustable,and all transfer of external forces to the deck construction is for the foundation bolts.

Features
1.Compact structure,high efficiency.
2.Corrosion resistance,simple and safe operation.
3.We can modify the windlasses to suit your special requirements.

Specification
1.Chain cable diameter:19mm to 73mm
2.Nominal pull:15.3kN to 226.5kN
3.Anchor depth:82.5m
4.Nominal drum load;15kN to 160kN
5.Wire rope diameter:13mm to 32mm

DWG.NO.	Part Of Weighing
	Chain Cable Dia.	Working Load	Anchor Depth	Nom.Speed	Drum Load	Wire Rope Dia.	Capacity	W.E.Load
	mm	kN	m	m/min	kN	mm	m	kN
226HS640-00	44	82.3	82.5	≥9	50	13	110	15
	46	89.9
	48	97.9
226HS650-00	50	106.3	82.5	≥9	80	22	80	20
	52	114.9
	54	123.9
226HS660-00	56	133.3	82.5	≥9	80	22	140	30
	58	143.3
	60	153.3

Certificates
The products approved by CCS,ABS,DNV-GL,BV,RINA,LR,NK,etc.
