Shaped Strand Steel Wire Rope

Shaped Strand Steel Wire Rope

Description：

Shaped strand steel wire rope is a steel wire with a cross-section of a specific shape other than round shape. Its section is triangular, oval or fan-shaped. This steel wire rope increased contact between strand and strand, with high anti-extrusion and breaking pulling limit. Compared with other steel wire ropes with similar functions, the shaped strand steel wire rope has the advantages of high strength, good toughness, no noise and easy to use.

Detailed Information :

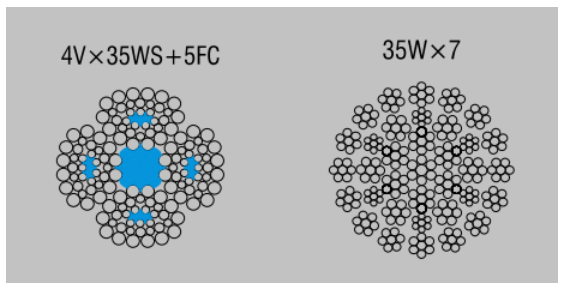

Common Structure: 4 V×39, 6V×7, 6V×19, 6V×37, 6V×39, 6Q×19+6V×21, etc.
Surface treatment: galvanized, bright, oiled, etc. (as requirements)
Material: carbon steel, stainless, etc.
Diameter : Customized according to customer needs.
Breaking load : Customized according to customer needs.
Packaging: Wood disc packaging, ABS shaft packaging, according to customer's specific requirements.
Application: Mining, petroleum, ports, forestry, shipping, construction, lifting machinery, transportation , etc.
Dimensional accuracy: ±0.2mm
Certificate & Standard:

Certificate: ABS, LR, CE, CCS, BV, DNV.

Standard : GB8919 , GB/T 20067, ISO, ASTM, EN, JIS, etc.

The Type of Shaped Strand Steel Wire Rope
triangular strand rope	Usually, strands are formed by winding steel wire around the core of an approximately equilateral triangle, and then winding strands around the core of a fiber cord to form a rope. The core is composed of multiple steel wires, and usually one to three layers of steel wire with different diameters are wound around the core.
oval strand wire rope	Oval section wire rope. The number of strands of elliptical circular strand wire rope is different, usually composed of 3 ~ 8 strands. The number of elliptic circular strands is more than 2 layers, but also a single layer. The wire rope made of oval circular strand is not rotating wire rope.
flat strand wire rope	The section of flat strand wire rope is flat. Flat strand wire rope is divided into thought - consistent flat strand wire rope and double - layer flat strand wire rope.
Fan strand wire rope	The section of the fan-shaped strand wire rope is fan-shaped. Fan strand and flat strand wire rope for non - rotating wire rope.

Superiority:

1.High strength

2. High toughness

3.low relaxation

4. Corrosion resistance

5. Fatigue resistance

6. Wear resistance

7. Free cutting and saving material

Shaped strand steel wire rope VS Round strand steel wire rope:

1. The contact area between the shaped strand steel wire rope and the rope groove is large, so the contact pressure is reduced and the wear resistance is improved.

2. The metal section coefficient of shaped strand steel wire rope is large, and the breaking force is 20%-25% higher than that of wire contact round strand wire rope.

3. The price of shaped strand steel wire rope is about 1.3~1.4 times of round strand wire rope.

4. Shaped strand steel wire rope has great rigidity. It need to use large diameter drum or friction wheel.
