Rigid Fast Rescue Boat


Rigid Fast Rescue Boat


Description:

1. Boat body material: unsaturated polyesternresin and glass fiber.

2. Install the self-aligning device. It can right itself when it capsizes.

3. Fit the off-load release mechanism with the safety pin.

4. Lifesaving fittings is equipped according to SOL AS requirement.

5. The surface for walking is the antiskid.

6. Equip a manual pump remove the ponding in the boat.

7. Rubber fender is fitted around the boat.

8. The deck can self-motion drainage.

9. Running time of rescue boat when fulloaded & full-speed is more than 4 hours.

10. Speed:28knots(3P),20knots(full loaded).


Adopt Standard:

Comply with the requirements and rules of SOLAS and amendment 1996, LSA Code, MSC.218(82), MSC.272(85), MSC.320(89) & MSC.81(70), MSC.

226(82), MSC.274(85), MSC.321(89)

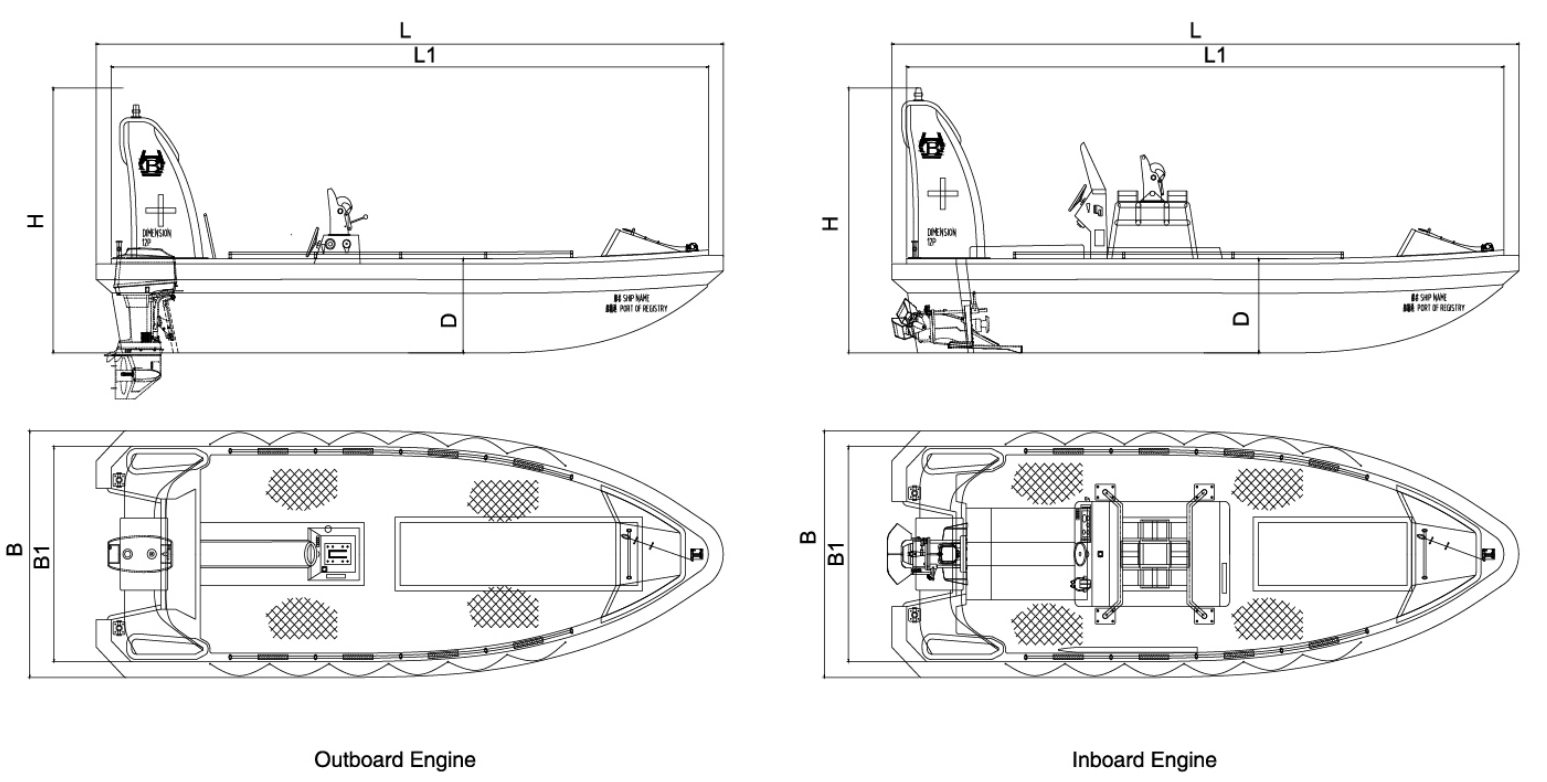

Drawing of rigid fast rescue boat:



Particulars

Outboard Engine

Inboard Engine

Length

L(m)

6.32

6.32

FRP Length

L1(m)

6.02

6.02

Breadth

B(m)

2.35

2.35

FRP Breath

B1(m)

2.05

2.05

Height

H(m)

2.53

2.53

Depth

D(m)

0.90

0.90

Fender

Foam

Foam

Empty weight

(kg)

1235

1730

Persons

P(82.5kg/p)

12

12

Full Load (kg)

2225

2720

Speed

(knots)

8(12P)/≥20(3P)

8(12P)/≥20(3P)

Engine

MERCURY 60/75/90/115

YANMAR: 4LHA-HTP/DTP/STP

STEYR:164M40/144M38/236K43

Power (kw)

44.1/55.1/66.2/84.5

YANMAR:118/147/177

STEYR:120/106/185


Picture of rigid fast rescue boat:
