Recessed Bitts

Recessed Bitts

Application: Generally the recessed bitts are used on vessels using the Panama and Suez Canal or where the rope needs to be attached to a ships hull without any protrusion. The recessed bitts play a critical role in the mooring and towing fittings on containers. The new international standard for recessed bitts is ISO13799-2012 which includes definite rules for the recessed bitts.For more informationplease do not hesitate to contact us.

Features:

Model Type: Recessed Bitts

Nominal Size:850mm,920mm

Material: Casting Steel/Ductile Iron/SG Iron

Certificates: CCS,ABS,BV,LR,NK,RINA,etc.

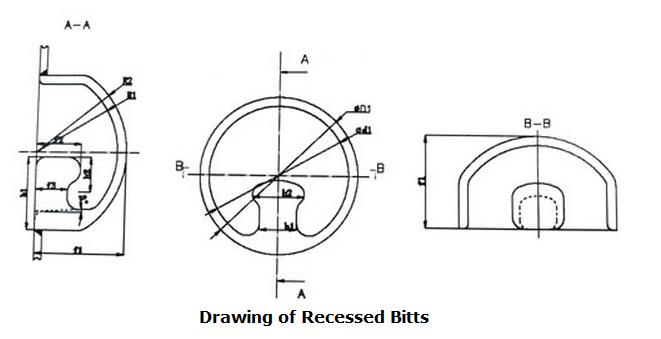

Drawing of Recessed Bitts:

Recessed bitts

Nominal Size Dn D1 d1 b1 b2 R1 R2 f1 f2 f3 h1 h2 Type Material SWL KN Calculated weight
850 850 750 200 280 450 500 500 250 180 400 190 75 235N/mm2 736 770
850 850 750 200 280 450 500 500 250 180 400 190 110 350N/mm2 1079 770
850 850 750 200 280 450 500 500 250 180 400 190 135 430N/mm2 1324 770
920 920 812 216 300 490 544 544 270 195 430 205 100 235N/mm2 981 826
920 920 812 216 300 490 544 544 270 195 430 205 150 350N/mm2 1472 826
920 920 812 216 300 490 544 544 270 195 430 205 180 430N/mm2 1766 826

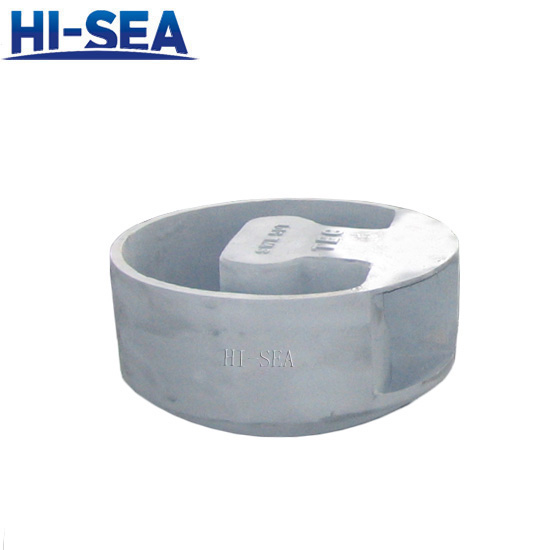

Mooring Bollard in Factory:

Recessed bitts
