Portable Fire Water Monitor

Portable Fire Water Monitor

Description:

Portable fire water monitor is used for the places which are far from water and no firefighting truck can get into. It is mainly composed of mobile chassis, mop, inlet pipe, rotary body and monitor head. Under the same pressure, the flow rate of the water monitor is adjustable. And it can be changed from water column to water mist, so that to better extinguish the fire.

Product Superiority:

1. Adjustable

2. Small size

3. Good performance

Product Detail:

PSY:

Model	Flow range(L/S)	Jettin range(≥m)	Working pressure(Mpa)	Pitching angle(°)	Rotation angle(°)	Spraying angle(°)	Connecting way
PSY20	20	48	0.5～1.0	-30～＋70	0-360	0-110	connecting flange
PSY25	25	50
PSY30	30	55
PSY40	40	60
PSY50	50	65

PSKDY:

Model	Flow range(L/S)	Jetting range （≥m)	Working pressure(Mpa)	Pitching angle(°)	Rotation angle(°)	Voltage	Remote control distance(≥m)	Weight(≤kg)	Connecting way
PSKDY30	30	50	0.8	+30～＋70	±90	24V/DC	150	30	KY80 or KYK80
PSKDY40	40	55
PSKDY50	50	60
PSKDY60	60	65	1
PSKDY80	80	85	1.1

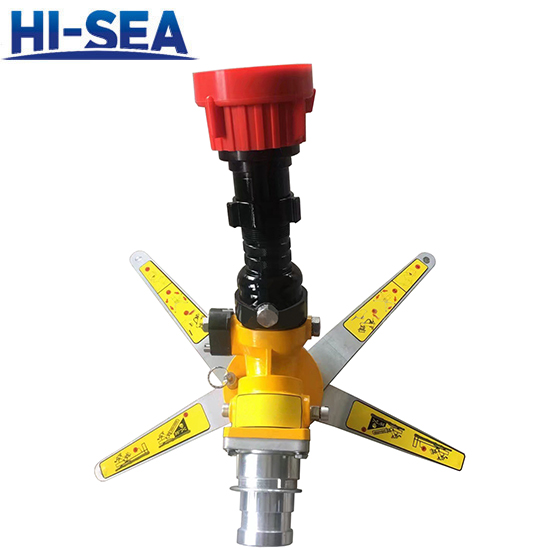

Photo 1 of PSY:

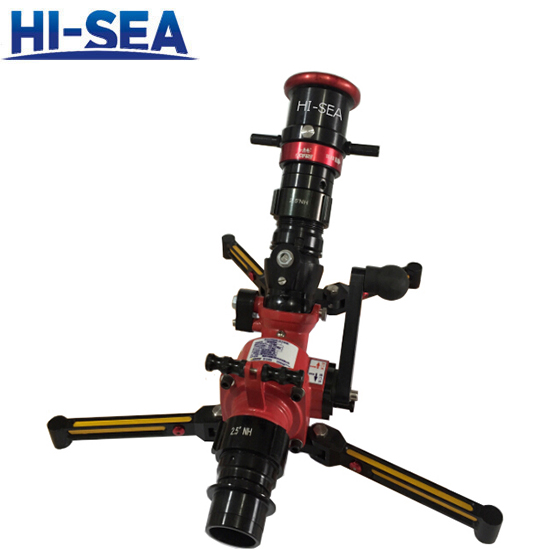

Photo 2 of PSY:

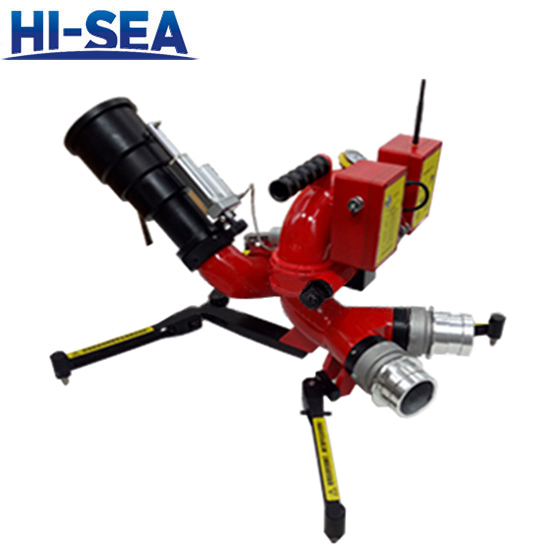

Photo 1 of PSKDY:

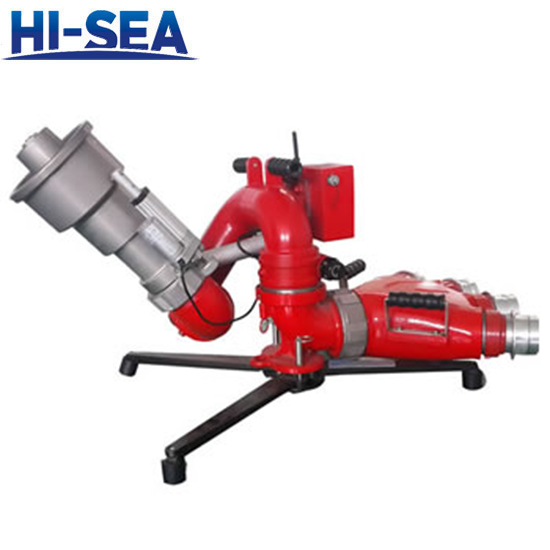

Photo 2 of PSKDY:
