Offshore Hydrophore

Offshore Hydrophore

Offshore Hydrophore

1. Offshore Hydrophore Breif Description

    The offshore hydrophore is used for oil platform on sea.

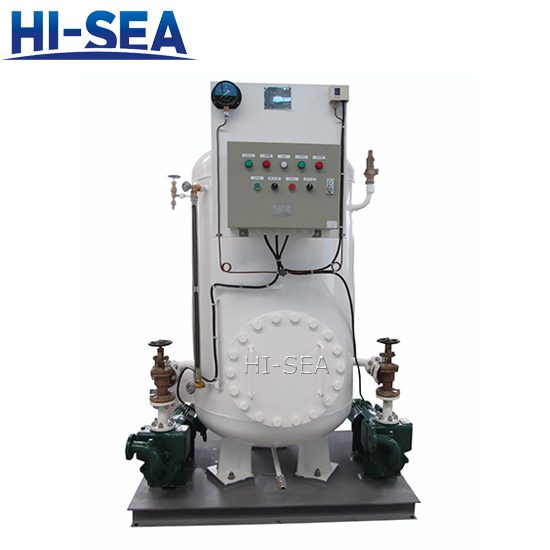

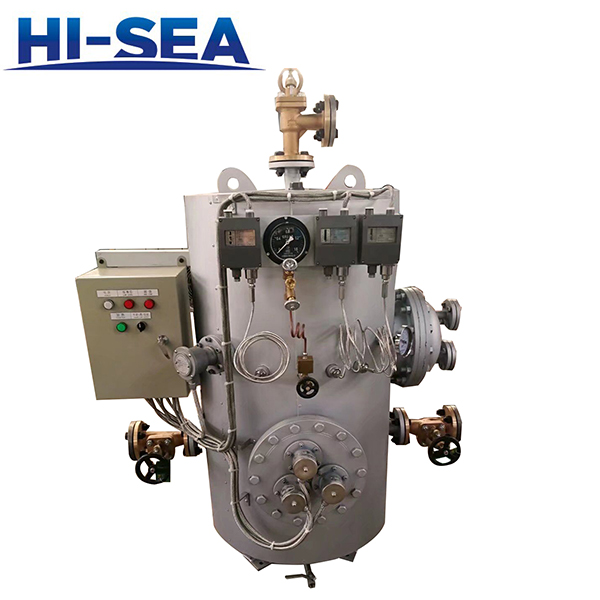

    This series hydrophore is suitable for ship fresh water pipes and sea-water pipes. The unit combines hydrophore, water pumps, valves and pipes together. It is modular, compact and beautiful, easy to install and maintain. So it is an ideal unit for water supply system.
    The hydrophore unit has the vertical and horizontal water pump configurations for customer to choose.

2. Offshore Hydrophore Principle Description
    The device uses the pressure water pumped by water pump in tank to compress air so as to keep the water in tank under a proper pressure for the use on board.
    Liquid level meter: to show the water level condition in tank.
    Pressure gauge: to show the pressure in tank.
    Pressure controller: to control the start and stop of water pump. When the pressure in tank is under 0.3Mpa, the water pump will start to feed water into tank until the pressure reaches 0.4Mpa.
    Safety valve: When the pressure in tank is more than 0.42Mpa, the safety valve will open to release the pressure in tank.
    Charge valve: to charge the compressed air into tank.
    Discharging valve: to empty the water in tank when maintaining.
    Control box: The control box is designed with two control modes, one is manual control, the other one is auto control. It is equipped with main water pump, spare water pump and change-over switch SA3. If select the main water pump, please turn the change-over switch SA3 to “Main”, if select spare water pump, please turn SA3 to “Spare”. When the change-over SA2 is turned to “manual”, the main water pump or spare water pump will be start to work manually. When the change-over switch SA2 is turned to “auto”, the device will enter into auto work. When the high pressure controller detects the pressure in tank has reached 0.4MPa, the main water pump or spare water pump will stop working.

3. Offshore Hydrophore Technical Datas

Model

ZYG-

0.12

0.2

0.3

0.5

1.0

1.5

2.0

Volume(m3

0.12

0.2

0.3

0.5

1.0

1.5

2.0

Working pressure(MPa)

0.4

Design pressure (MPa)

0.44

Test pressure (MPa)

0.66

Take-off pressure of safety valve(MPa)

0.42

Working temperature()

0~45

Design temperature()

50

Water

pump

Model

1.5CWX-1.5/1.5A

1.5CWX-2/2A

1.5CWX-3/3A

Flow rate(m3/h)

3

6.5

10

Pumping head (m)

40

40

40

Power(kW)

2.2

3

4

4. Quantity be approved by IMO, all kinds class certificate can be supply.
