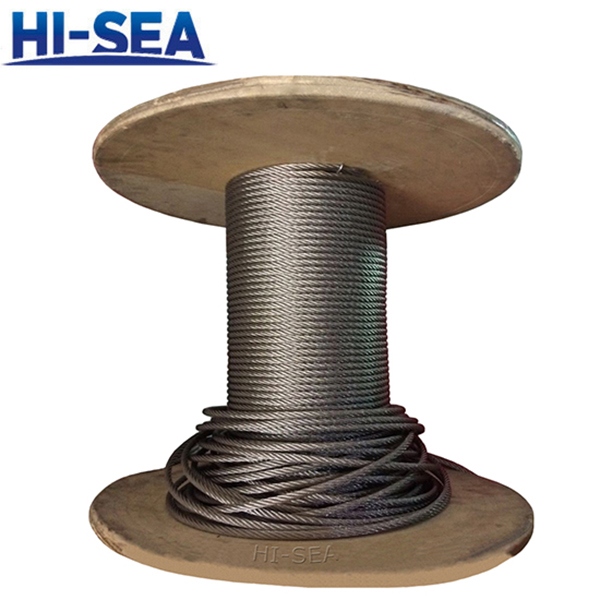

Non-rotating Wire Rope

Non-rotating Wire Rope


Description:

The inner and outer layers of non-rotating wire rope have opposite direction of lay. When the outer layer is subjected to the force in the opposite direction, the rotational force of the outer strand will be limited because the inner strand and the outer strand are twisted in the opposite direction. This will appropriately reduce the rotation angle of the load-bearing object in the air. It is mainly used for dock cranes, tower cranes, crawler cranes, mining winches, electric hoists, etc.

Product Superiority:

1. Non-rotating

2. Soft and safe

3. Low counter-force

Product Detail:

Class
Structure
Min.dia.of wire rope drum(mm)
18×7
17×7+FC,17×7+IWS
34×d
18×7+FC,18×7+IWS
18×19
18×19W+FC,18×19W+IWS
26×d
18×19S+FC,18×19S+IWS
35W×7
35W×7,24W×7
27×d
4V×36WS
4V×36WS+FC
26×d
4V×39S
4V×39S+5FC
4V×48S
4V×48S+FC


Picture of Sectional Drawing:
