Marine Wet Unit

Introduction of Marine Wet Unit

Marine Wet unit is a unit wet cabin that can be installed as a whole is composed of all necessary sanitary equipment, wall panels, etc. on the ship. Its shell is mostly assembled by glass fiber reinforced plastics, and it also has a structural form of integral molding. After the shell of the ship guard unit is formed, the watertightness test should be carried out before assembly to ensure its performance. The ship sanitary unit has the advantages of complete functions, light weight, beautiful appearance, corrosion resistance, and no leakage. It is a sanitary facility widely used by ships and civil ships.

Classification of Marine Wet Unit

The form of the wet unit is divided into two categories: bathtub type and shower type according to the characteristics of use. The shower type is divided into two types: single use and two-room sharing.

Sanitary units shall use steel frames or other frames of equivalent strength. The steel used in the wet unit needs to be rust-removed and rust-proof.

The chassis of the wet unit should be made of steel plate with a thickness of not less than 3mm, the depth of the chassis should not be less than 75mm, and the chassis must be watertight.

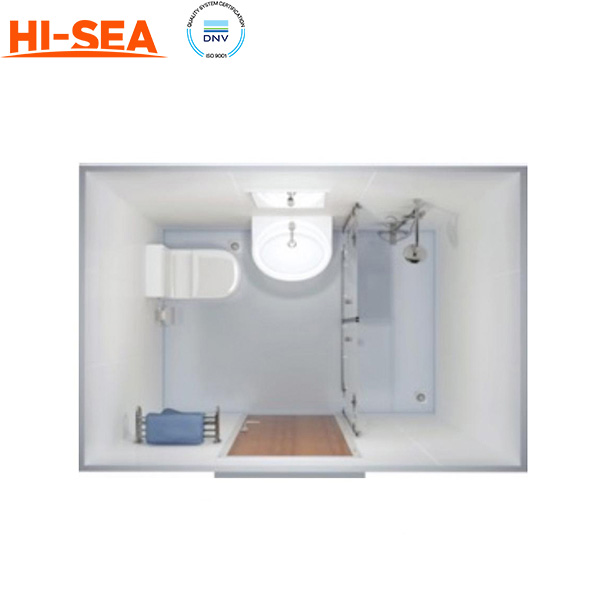

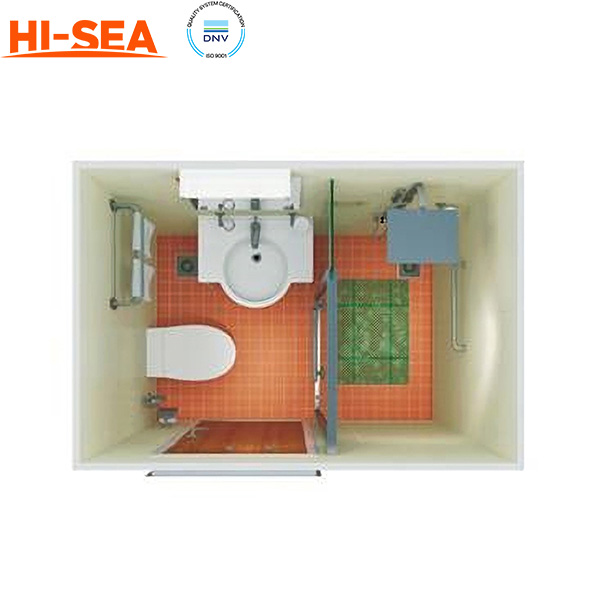

Layout

Floor Type

Type		Features
PVC Floor		Green environmental protection, ultra-light and ultra-thin, super wear-resistant, super anti-skid, fire and flame retardant
Ceramic Tile Floor		Simple cleaning and maintenance, good fireproof, waterproof, anticorrosive performance, environmental protection, rich shape, long service life. But High cost, easy to slip
GRP Floor		Strong wear resistance, anti-corrosion and insulation properties
Epoxy floor		Acid and alkali resistance, wear resistance, impact resistance, mildew resistance, dustproof, skid resistance and so on. Bright and varied colors, easy to clean.

Equipment and Materials List of Wet Unit

Equipment list of wet unit(Type C)
NO.	NAME	DESCRIPTION	REMARK
Panel System
1	Floor	Slip-proof ceramic tiles covering 3.0mm bottom plate
2	Wall panel	PVC covering galv.steel plate+rockwool+0.6mm galv.steel plate
3	Ceiling panel	PVC covering galv.steel plate+rockwool+0.6mm galv.steel plate
4	Door leaf	PVC covering galv.steel plate+rockwool+PVC covering galv.steel plate T=38mm
5	Door frame	Baked enamel on 1.5mm steel plate
6	Lock	Can show use or not
Sanitary
1	Vacuum toilet	vitreous china（wall-hang type，White）
2	Wash basin	vitreous china（wall-hang type，White）
3	Water basin faucet	Chromium plated brass
4	Shower mixer with thermostatic	Chromium plated brass
Hardware
1	Mirror cabinet	Baked enamel on steel sheet
2	Towel bar	SUS304
3	Grab rail	SUS304
4	Soap dish	SUS304
5	Corner basket	SUS304
6	Paper holder with ashtray	SUS304
7	Trash	SUS304
8	Hat & coat hook	SUS304
9	Exhaust valve	Baked enamel on steel sheet
10	Toilet brush with holder	Ass.
11	Door stopper	SUS304
12	the trap of S type	SUS304
13	Clothesline	SUS304
14	Shower curtain	Nylon, aluminum alloy
Electric
1	Mirror light	With safety shaver socket, isolation transformer
2	Cable for marine
3	Cable junction box	Nylon
4	Speaker		Shipyard supply, Seller install
Pipe
1	Fresh&hot water pipe	red copper pipes with insulation
2	Ball valve	brass
3	Triangle valve	Chromium plated brass
4	Gray water pipe	SUS304 pipe with flexible pipe & clamp
5	Black water pipe	PVC pipe with flexible pipe & clamp	Accessories of vacuum toilet
Others
1	Scupper	SUS304
2	Adjusting bolt	galv.steel
3	Shower coaming	SUS304

Specific material can be replaced as required
