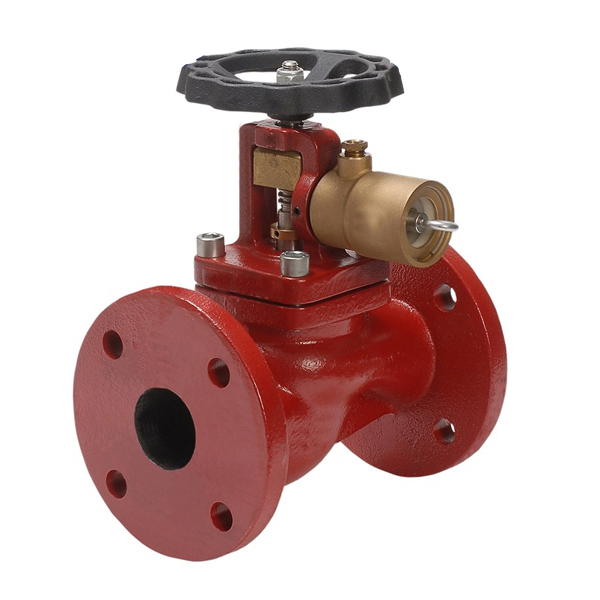

Marine Quick Closing Valve

Marine Quick Closing Valve

Introduction

A Marine Quick Closing Valve (QCV) is a type of valve used on ships and other marine vessels to rapidly shut off the flow of fluids such as water, oil, or chemicals in the event of an emergency.

The QCV is typically located in the pipeline system that carries fluids through the ship, and is designed to close quickly to prevent spills or leaks that could endanger the crew, damage the environment, or cause damage to the ship itself.

The valve can be operated manually or automatically, and is usually located in a readily accessible location for quick and easy operation.

In addition to emergency shut-off capabilities, QCVs are also used for routine maintenance tasks such as isolating sections of the pipeline for repairs or modifications. They are typically constructed of high-quality materials such as stainless steel or bronze to withstand the harsh marine environment and to ensure long-lasting, reliable performance.

Advantage

The advantages of using a Marine Quick Closing Valve are:

1. Safety: The main advantage of using a Marine Quick Closing Valve is the safety it provides to the crew and the vessel. It helps to prevent flooding and spillage of liquid or gas in case of an emergency.

2. Quick Action: The valve can be closed quickly in case of an emergency, thus preventing any further damage.

3. Ease of Operation: The valve is easy to operate, and the crew can quickly close the valve in case of an emergency.

4. Reliability: The Marine Quick Closing Valve is a reliable component, and it has a long service life.

5. Low Maintenance: The valve requires minimal maintenance, and it is easy to clean and maintain.

Nominal Diameter & Pressure

Diameter: DN15--DN125

Pressure: PN10/16

Configuration Selection

Part name

Material

Advantages / Disadvantages

Valve Body

Bronze

1. Seawater corrosion resistance;
2. The price is slightly higher than that of cast steel and cast iron;

Cast Steel

1. High mechanical strength and toughness;
2. It has special properties such as heat resistance, corrosion resistance and wear resistance;
3. The price is lower than that of bronze and higher than that of cast iron;

Cast Iron

1. Not corrosion resistant;
2. The price is lower than that of bronze and cast steel;

Spool

Bronze

1. Strong low temperature resistance;
2. Seawater corrosion resistance is stronger than stainless steel (304, 316);
3. The price is slightly higher than that of stainless steel;

Stainless Steel

1. It has strong tensile, anti-wear and corrosion resistance, and will not produce corrosion, pitting, corrosion and wear;
2. Stronger than copper;
3. High temperature resistance;

Valve Stem

Stainless Steel 304

1. Acid and alkali resistance;
2. High temperature resistance;
3. The price is lower than stainless steel 316;

Stainless Steel 316

1. It is more corrosion-resistant and acid resistant than stainless steel 304;
2. The price is slightly higher than that of stainless steel 304;

Valve Cover

Bronze

1. Seawater corrosion resistance;
2. The price is slightly higher than that of cast steel and cast iron;

Cast Steel

1. High mechanical strength and toughness;
2. It has special properties such as heat resistance, corrosion resistance and wear resistance;
3. The price is lower than that of bronze and higher than that of cast iron;

Handwheel

Csat Iron

The price is lower than that of bronze and cast copper

The differences are as follows

Product drawings of other low-quality suppliers

Our factory manufactures products

Low quality product features

Consequence

Features of our products

Achieve results

1. Insufficient raw materials;
2. The processing method is not standard

The wall thickness is uneven, the material distribution is uneven, the valve body is easy to be damaged, and the service life is short

It is processed in strict accordance with the standard, with uniform wall thickness and material

The product has high safety factor and long service life

1. Made of iron and carbon steel;
2. Use the recovered scrap valve to repair and then sell it again;

The hardness and accuracy of the valve cannot meet the needs of use, and the shell is easy to crack, resulting in running, emitting, dripping and leakage, and even causing oil and gas pipeline explosion

Select high-quality materials according to customer needs, and make new products in strict accordance with standards

The hardness and accuracy of the valve meet the standard quality requirements to ensure the normal operation of the equipment

To improve profit margin, purchase cheap unqualified bolts

Unqualified valve bolts lead to safety hazards, which is easy to cause accidents

Make new valves in strict accordance with the material requirements of customers, and never substitute inferior products for good ones

Meet the hardness and accuracy requirements of standard valves, ensure the quality of valves and ensure the normal operation of equipment

Flange manufacturing quality is poor, with cracks, pores, insufficient thickness and other problems

It leads to wear resistance and poor pressure bearing of the valve, and the valve is prone to quality problems, which makes

short service life

Adopt standard bolts with quality assurance in strict accordance with customer requirements

Improve safety factor and prolong service life

In order to reduce the cost, cast iron valve core is used instead of bronze valve core

Cast iron valve core is easy to be corroded and damaged

Select standard materials in strict accordance with customer requirements

The product structure is reasonable and the safety factor is high

In order to reduce costs, ordinary round steel valves are used instead of stainless steel valves

1. The diameter of valve rod fails to meet the requirements;
2. The performance of alternative materials is unstable, without heat treatment, the quality can not meet the standard, and the service life is short

1. Made of stainless steel;
2. The diameter of valve rod meets the design requirements;
3. High temperature quenching and tempering heat treatment

The product has reasonable structure, high safety factor and long service life

Drawing

Body: Cast Iron

Seat: Rubber

Disc: Stainless Steel

Stem: Stainless Steel

Parameter performance

Product Showing

Certificates
