Marine Cabin Unit with Circular Diffuser

Marine Cabin Unit with Circular Diffuser

1. Description

Marine cabin unit with a circular diffuser is a ventilation system designed specifically for use in marine environments, such as ships, boats, or offshore structures. It provides conditioned air and ventilation to individual cabins or enclosed spaces within the marine vessel.

2. Main Components:

Fan Unit: The fan unit is responsible for drawing in fresh air from outside the vessel and pushing it through the system. It may include filters to remove dust, pollutants, and odors from the incoming air.

Heating/Cooling Element: Depending on the system's design, the marine cabin unit may have a heating or cooling element. This element helps regulate the temperature of the air before it is distributed into the cabin.

Circular Diffuser: The circular diffuser is the outlet component of the system. It is mounted on the cabin's ceiling or wall and distributes the conditioned air into the space. The circular shape of the diffuser allows for even air distribution in all directions.

Control Panel: The marine cabin unit may have a control panel that enables users to adjust the temperature, fan speed, and other settings. This allows occupants to customize the airflow and temperature according to their preferences.

3. Functions

The circular diffuser plays a vital role in ensuring proper air distribution within the cabin. It is designed to provide 360-degree airflow, ensuring that conditioned air is evenly dispersed throughout the space. The diffuser may have adjustable blades or louvers to allow occupants to control the direction and intensity of the airflow.

4. Specification

Specification	A	D	Y	C	L	W	B	P	M	H	Flow-rate m3/h
CMJ-25	160	78	260×260	185	450	450	150	225	240	50-75 75-95 100-120	0-250
CMJ-35		98									0-350
CMJ-45		123									0-450
CMJ-50	200	123	320×320	230	600	500	200	200	284		0-500

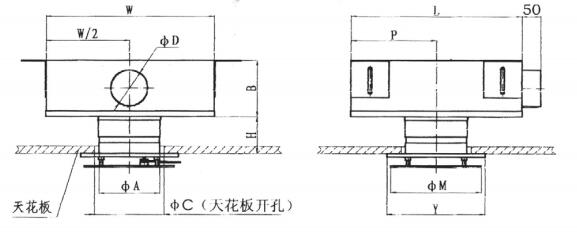

5. Process drawing
