JCZ-90A Marine Fan

JCZ-90A Marine Fan

Introduction:

The JCZ-90A marine fan is a type of centrifugal fan commonly used on board ships and other marine vessels to provide ventilation and air circulation. It is designed to operate in harsh marine environments and is made of high-quality marine-grade materials to resist corrosion and wear.

The fan features a high-efficiency impeller and a streamlined casing that directs airflow in a single direction. It is driven by an electric motor and can be controlled using a variable frequency drive (VFD) to adjust the fan speed and airflow rate as needed.

The JCZ-90A marine fan is suitable for a wide range of applications on board ships, including ventilation of engine rooms, cargo holds, and other enclosed spaces, as well as supply and exhaust air for HVAC systems. It is known for its reliability, durability, and energy efficiency, making it a popular choice among ship owners and operators.

Material:

The JCZ-90A Marine Fan is a type of axial flow fan commonly used in marine applications for ventilation and air conditioning. The material used for its construction can vary depending on the specific manufacturer and application, but typically it is made of corrosion-resistant materials such as stainless steel or aluminum alloys. These materials can withstand the harsh marine environment and are durable enough to provide long-lasting performance. The blades of the fan may also be coated with anti-corrosion materials to further enhance their resistance to corrosion.

Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			D₁	D₂	D₃	L	n*d		Weight ≈㎏
					Freq Hz	Power Kw	Type	Ø900	Ø970	Ø1010	850	16	Ø19	260
JCZ-90A	24000	705	635	1460	50	7.5	Y132M-4H
	27000	570	490
	30000	490	390
	33000	350	225
	28000	1010	910	1750	60	15	Y160L-4H							310
	32000	815	705
	36000	705	560
	40000	510	325

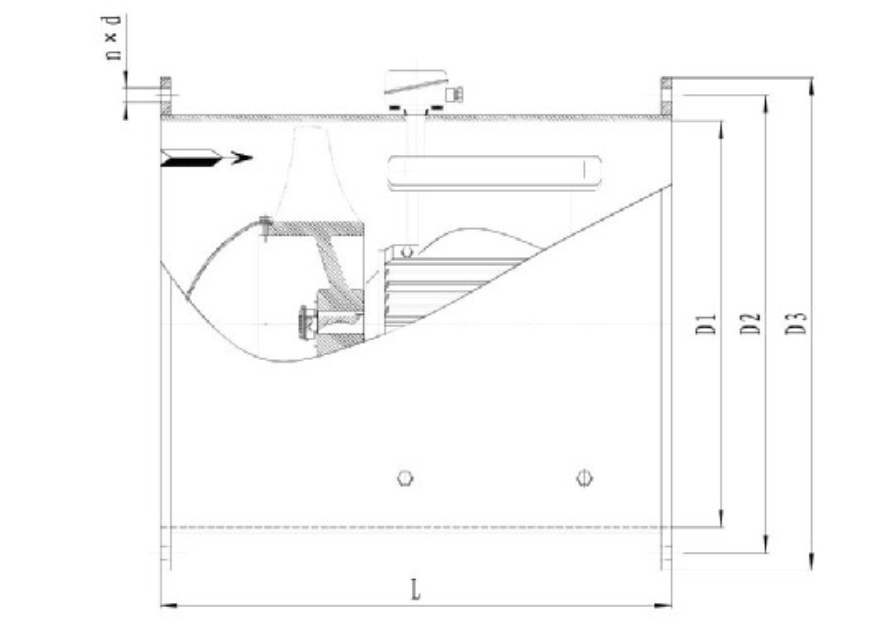

Outline Drawing:

Product Showing:
