1. Introduction:

JCL series marine or navy centrifugal fans are capable of blowing air, ocean air containing salt vapor, and corrosive air which contains oil vapor and a small quantity of acid steam generated by the natural evaporation oft the batteries. They are suitable for cabin air ventilating and exchanging as well as boiler ventilation on the ocean-going vessels. They are also applicable in other places that suit.

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			A	A₁	A₂	A₃	B	B₁	B₂	B₃	D₃	D₁	D₂
					Freq Hz	Power Kw	Type	400	488	448	330	540	626	586	460	Ø580	Ø666	Ø630
JCL-56	13500	1017	900	970	50	11	Y160L-6H
	15000	1060	830
	18000	1010	690
	20000	860	520
	12000	860	720	870	60	7.5	Y160L-8H
	13500	850	670
	16000	810	550
	18000	810	490
	16000	1530	1290	1160		15	Y180L-6H
	18000	1500	1180
	21500	1440	980
	24000	1230	740

Type	Motor type	n1*d1	n2*d2	4-K	L₁	L₂	L₃	L₄	h	h₁	h₂	H	M₁	M	L	Weight ≈㎏
JCL-56	Y160L-6H	12-Ø15	14-Ø15	4-Ø15	260	319	254	254	160	449	344	1106	442	975	1011	267
	Y160L-8H															265
	Y180L-6H					332	279	279	280						1066	315

3. Outline Drawing:

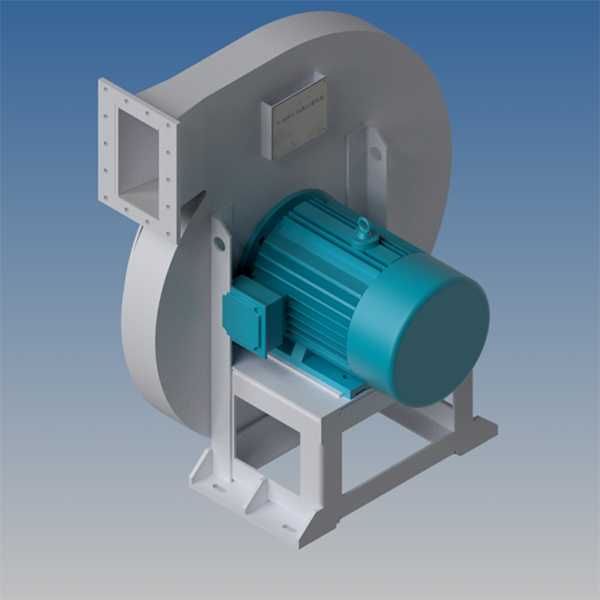

4. Product Showing:

5. Why Choose Us?

High quality design team to provide professional basic design.

The enterprise has strong financial strength.

sincere negotiation leads to cooperation.

professional supervision team to ensure product quality.

perfect system to provide global translation services.

Please contact us and get detailed Technical parameters and Drawings.

We could design and produce the marine fan, industrial fan, and other ventilation equipment according to your detailed requirement.
