JCL-27 Marine Fan

JCL-27 Marine Fan

1.Introduction:

JCL series marine or navy centrifugal fans are capable of blowing air, ocean air containing salt vapor, and corrosive air which contains oil vapor and a small quantity of acid steam generated by the natural evaporation oft the batteries. They are suitable for cabin air ventilating and exchanging as well as boiler ventilation on the ocean-going vessels. They are also applicable in other places that suit.

2. Features:

Small size and light weight, low noise and low vibration, good anti-corrosive, good airtight, small starting torque, strong resistance against swing, vibration and shock.

3. Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			A	A₁	A₂	A₃	B	B₁	B₂	B₃	D₃	D₁	D₂
					Freq Hz	Power Kw	Type	200	265	235	120	250	313	285	190	Ø280	Ø343	Ø315
JCL-27	2300	520	440	1460	50	1.1	Y90S-4H
	2500	510	390
	3000	510	340
	3300	430	260
	1800	330	280	1160	60	0.75	Y90S-6H
	2000	320	250
	2400	320	220
	2600	270	160
	2750	750	640	1750		1.5	Y90L-4H
	3000	730	560
	3600	730	490
	3900	620	370

Type	Motor type	n1*d1	n2*d2	4-K	L₁	L₂	L₃	L₄	h	h₁	h₂	H	M₁	M	L	Weight ≈㎏
JCL-23	Y90S-4H	8-Ø12	10-Ø12	4-Ø10	153	164.5	100	140	90	221.5	175	553	220	481.5	531.5	43
	Y90S-6H
	Y90L-4H						125	140							596.5	48

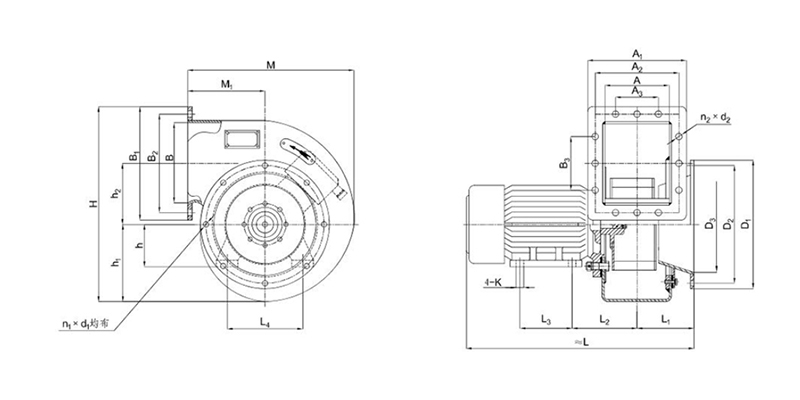

4. Outline Drawing:

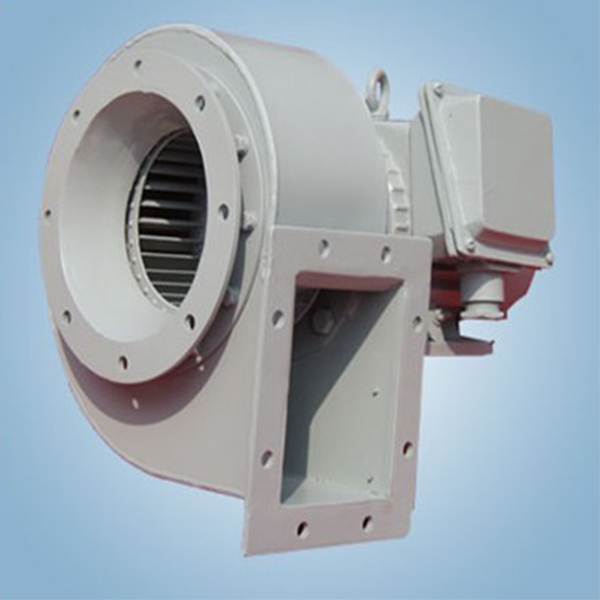

5. Product Showing:
