Inflatable PVC Oil Containment Boom - oil boom - Hi-sea

Inflatable PVC Oil Containment Boom

Inflatable PVC Oil Containment Boom

Description:

Inflatable PVC oil containment boom is a vertical floating boom. Compared with ordinary solid float boom, it has smaller storage volume and lighter weight. It can be folded and stored or wound on the captor for instant noodle transportation and use, which is convenient for storage. It can be placed with high speed towing by boat, especially suitable for emergency occasion. After using, it can be easily recycled, and can also provide simple, convenient and effective oil spill protection for ports and wharves, coastal waters, harbors, rivers and other equal waters.

Details of Inflatable PVC Oil Containment Boom:

Details of Inflatable PVC Oil Containment Boom



Technical Data:

Specification

WGV900Z

Overall Height(mm)

910

Draft line Height(mm)

300

Draft Depth(mm)

610

Weight(kg/m)

6

Overall Strength(kn)

>=165

Drag Speed(straight line)(knot)

10

Drag Speed(containment oil)(knot)

1

Length of Per Section(m)

20

Feature:

1. WGV900Z containment boom is made of foam floating plate filled between two layers of oil-proof and sea-corrosion resistant PVC fabric.

2. The boom has longitudinal reinforcement belt to ensure the boom is firm. The body is made of PVC high-strength double-sided coated reinforced plastic cloth, which is composed of floating body covering cloth and main body.

3. The oil-resistant solid foam float is installed vertically in the cloth, and the counterweight block is hung at the lower end of the main body.

4. Support plates are installed at intervals between floats to ensure vertical stability of booms.

5. The boom floats in the water, and the upper part of the float and the floating body wraps to form the part above the water surface. The boom is maintained by the counterweight block and support sheet to maintain vertical stability, forming the underwater part.

6. Booms consisting of multiple floats are generally 20 meters long and are connected by joints. One end of the joint has an anchor seat for connecting the anchor rope when laying the containment boom.

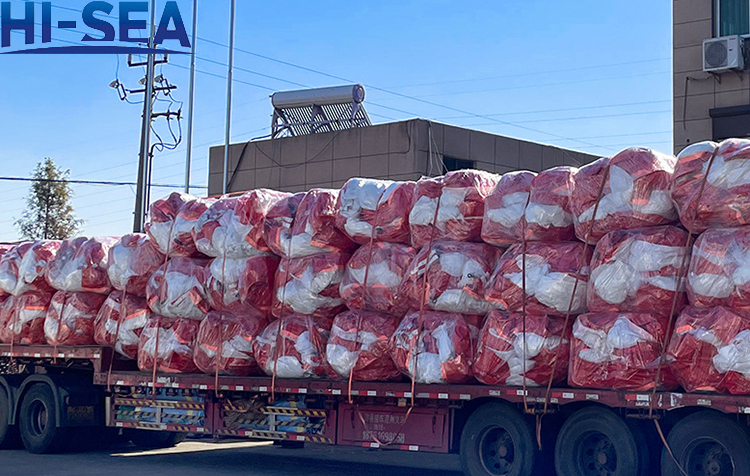

Inflatable PVC Oil Containment Boom for Transportation:

Marine Inflatable PVC Oil Containment Boom:
