Horizontal Sheave Fairlead

Horizontal Sheave Fairlead

Appilication: Deck mounted horizontal sheave is another name of horizontal sheave fairleads because of its position. This fairlead has different structure from vertical sheave but same location during operation, and it is also located at the back of swivel fairlead. It can be delivered with or without a foundation as a vessel needs. Same as vertical type, it can control tension and movement of wire ropes both for anchors and for general mooring purposes.

Features:

Model Type: Horizontal Fairlead

Material: Casting Steel

Standard: DIN

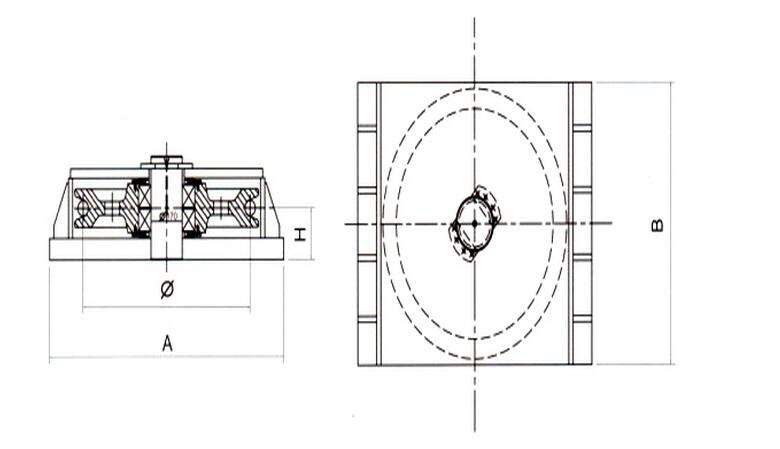

Drawing of horizontal sheave fairlead:

Horizontal Sheave Fairlead

Max Wire Dia(mm) A(mm) B(mm) H(mm) Φ(mm)
20 650 510 70 360
25 700 540 70 390
32 810 650 95 540
38 960 760 125 640
44 1080 850 160 710
52 1310 1060 175 880
60 1450 1130 185 920
68 1600 1250 195 956
76 1820 1350 220 1120

Fairlead in factory:

Horizontal Sheave Fairlead

IACS Certificates:



Related Sheave Fairlead:

                                                                        Vertical sheave Fairlead
