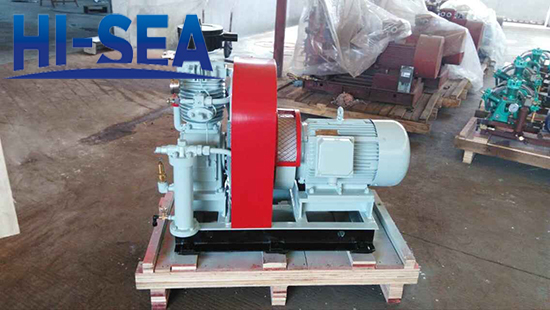

HC-65A Water Cooled Air Compressor

HC-65A Water Cooled Air Compressor

HC-65A Water Cooled Air Compressor


Application
HC-65A air compressors is widely used for shipping, offshore, and land use machinery equipment, as the staring power. They also can be compress air source for other industrial department and pressure experiment. This displacement capacity is 69-190 m3/h.The rated pressure is 3.0 Mpa. The HC-65A compressor can be used for a variety of applications, including powering pneumatic tools, providing compressed air for control systems, and supplying air for breathing apparatus and other life-support systems. Its durable construction and reliable performance make it well-suited for use in harsh marine environments. Overall, the HC-65A Water Cooled Air Compressor is a versatile and reliable compressor that is well-suited for use in a wide range of industrial and marine applications. Its water-cooled design, high pressure capabilities, and efficient performance make it a popular choice for many different industries.

Features

1. There are various models can manufacture,such as air-cooled,water-cooled,vertical type,horizontal type,etc.

2. Low exhaust temperature,small volume,reliable operation.

3. Low noise,compact structure,high efficiency,light weight.

4. Configuration: The HC-65A is a two-stage, reciprocating air compressor that uses water as a coolant to dissipate heat generated during compression. It typically has two cylinders, each with a piston that moves back and forth to compress the air.

5. Power: The compressor is typically powered by an electric motor, with power ratings ranging from 5 to 100 horsepower.

6. Pressure: The HC-65A compressor is capable of producing a maximum air pressure of 40 bar or 580 psi.

7. Capacity: The compressor has a displacement capacity ranging from 10 to 200 cubic feet per minute (CFM), depending on the specific model.

8. Cooling: The HC-65A compressor uses water as a coolant to dissipate heat generated during the compression process and maintain consistent performance.

9. Design: The water-cooled design of the HC-65A compressor helps to reduce vibration and noise during operation, while also providing efficient cooling to prolong the life of the compressor.

Technical Parameter

Compressor  Model

HC-65A

HC-265A

Type

vertical type, water-cooled type, two stage compression type

Cylinder Number

1

2

Rated  Pressure  (Mpa)

3.0

Shaft Power  (KW)

15.5

19

20.5

31

38

41

Displacement  Capacity  (m3/h)

69

82

90

137

170

190

Motor Model

Y225S-8-H

Y225M-8-H

Y200L2-6-H

Y280S-8-H

Y280M-8-H

Y280S-6-H

Frequency  (HZ)

50

60

50

50

60

50

Rated Power  (KW)

18.5

22

22

37

45

45

Rated Speed  (r/min)

730

870

960

730

870

960

Dimension  (mm)

1424x890x1263

1870x1000x1180

Engine Weight  (kg)

~700

~1400
