Gravity Pole Type Davit


Gravity Pole Type Davit


Description:

1. The davit is a gravity type davit and it lowers the boat on the water by its own weight.

2. The davit is designed for boarding the boat in stowed position. The boat could be lowered to the surface continuously and without stopping at the short time.

3. The boat is lowered by the remote control. The crew can release and stop the hand brake of the winch from inside of the boat via wire connection to the brake arm and wire

4. spoil on the small drum. Alternatively the crew can operate the hand brake on the deck.

5. There is the fastening unit at the head and end of the lifeboat for fastening the boat and avoiding the lifeboat swing on the wave.

6. The winch with the motor is used for recovering the lifeboat with 2 persons or rescue boat with 6 persons and back to the boarding deck.


Adopt Standard:

This davit conforms to the requirements of the Amendments to SOLAS1996---MSC.47(66), International LSA Code MSC.48(66), IMO Resolution MSC81(70) and MSC.216(82), MSC.218(82) and MSC.226(82).

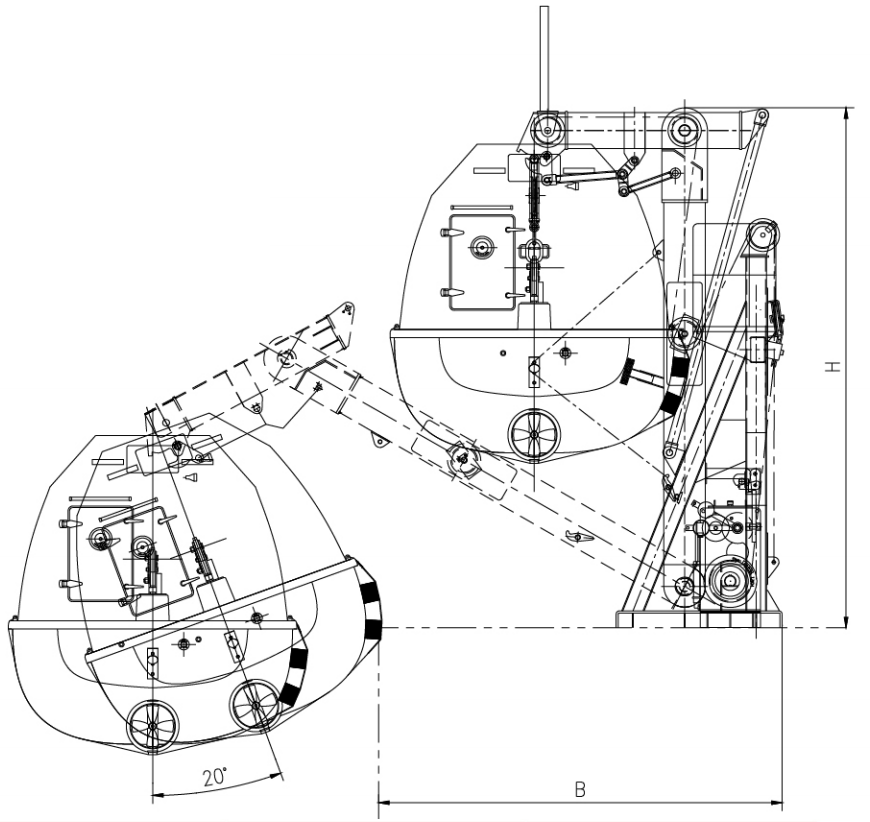

Drawing of gravity pole type davit:



Particulars

Max.Working load (KN)

65

90

120

A

(mm)

1230

1600

1800

B

(mm)

3485

3890

3880

H

 (mm)

4820

5050

5175

Totally Weight

 (kg)

4400

5400

7000

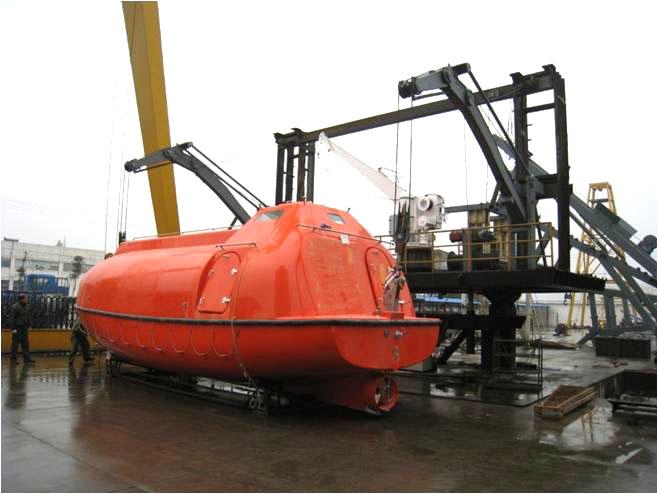

Picture of gravity pole type davit:
