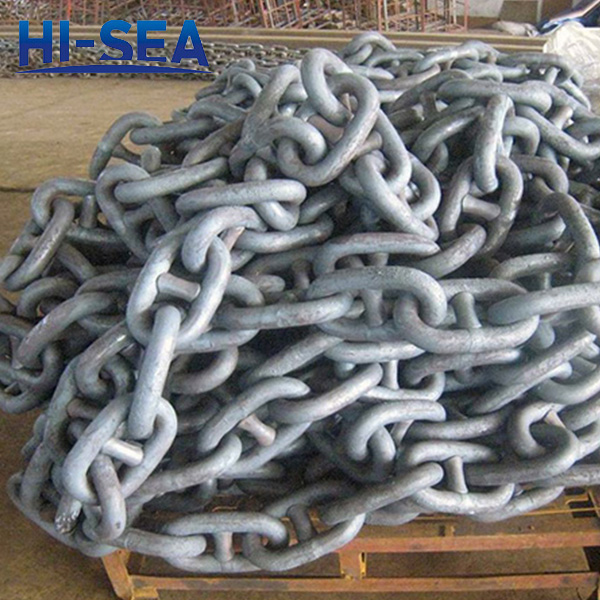

Galvanized Stud Link Anchor Chain
Galvanized Stud Link Anchor Chain
Application: Hi-Sea Marine supply all kinds of marine anchor chains with ABS, BV, DNV·GL, NK,LR,KR, RINA, CCS approvals. This anchor chains is flash butt welded. The common surface treatment is bitumen painted and hot dip galvanized. Compared with bitumen paint, hot dip galvanized surface is more corrosion-resistant. Usually the small diameter anchor chains with galvanized surface, and the big diameter anchor chains with bitumen paint.
Product Detail
1.Material: Steel for anchor chain
2.Diameter: 12.5mm to 225mm
3.Finish: hot dip galvanized. Electro-galvanized
4.Marine Certificate: CCS, ABS, LR, NK, RS, DNV·GL, KR, BV, RINA
5.Grade: U2, U3, RQ3/NVR3, RQ3S/NVR3S, RQ4/NVR4
6.Length: 27.5m or customized
Reasons for Choosing Hi-Sea Marine:
1. Experienced, Reputable Supplier;
2. Supply a Large Range of Marine Equipment;
3. High Quality Products;
4. Reasonable and Competitive Price;
5. Short Delivery;
6. Excellent One-Stop Service;
7. Meet All the Requirements of Customers;
8. Supply ABS, CCS, BV, NK or other Certificates as Required.
Drawing of Stud Link Anchor Chain:
Diameter |
U2 |
U3 |
U2 |
U3 |
Approx. mass |
mm |
kN |
kN |
kN |
kN |
kg |
12.5 |
66 |
92 |
92 |
132 |
98 |
14 |
82 |
116 |
116 |
165 |
122 |
16 |
107 |
150 |
150 |
216 |
161 |
17.5 |
127 |
179 |
179 |
256 |
193 |
19 |
150 |
211 |
211 |
301 |
227 |
20.5 |
175 |
244 |
244 |
349 |
264 |
22 |
200 |
280 |
280 |
401 |
305 |
24 |
237 |
332 |
332 |
476 |
362 |
26 |
278 |
389 |
389 |
556 |
425 |
28 |
321 |
449 |
449 |
642 |
493 |
30 |
368 |
514 |
514 |
735 |
566 |
32 |
417 |
583 |
583 |
833 |
644 |
34 |
468 |
655 |
655 |
937 |
727 |
36 |
523 |
732 |
732 |
1050 |
815 |
38 |
581 |
812 |
812 |
1160 |
909 |
40 |
640 |
896 |
896 |
1280 |
1007 |
42 |
703 |
981 |
981 |
1400 |
1110 |
44 |
769 |
1080 |
1080 |
1540 |
1218 |
46 |
837 |
1170 |
1170 |
1680 |
1331 |
48 |
908 |
1270 |
1270 |
1810 |
1450 |
50 |
981 |
1370 |
1370 |
1960 |
1573 |
52 |
1060 |
1480 |
1480 |
2110 |
1701 |
54 |
1140 |
1590 |
1590 |
2270 |
1835 |
56 |
1220 |
1710 |
1710 |
2430 |
1973 |
58 |
1290 |
1810 |
1810 |
2600 |
2117 |
60 |
1380 |
1940 |
1940 |
2770 |
2265 |
62 |
1470 |
2060 |
2060 |
2940 |
2419 |
64 |
1560 |
2190 |
2190 |
3130 |
2577 |
66 |
1660 |
2310 |
2310 |
3300 |
2741 |
68 |
1750 |
2450 |
2450 |
3500 |
2909 |
70 |
1840 |
2580 |
2580 |
3690 |
3080 |
73 |
1990 |
2790 |
2790 |
3990 |
3353 |
76 |
2150 |
3010 |
3010 |
4300 |
3634 |
78 |
2260 |
3160 |
3160 |
4500 |
3828 |
81 |
2410 |
3380 |
3380 |
4820 |
4128 |
84 |
2580 |
3610 |
3610 |
5160 |
4440 |
87 |
2750 |
3850 |
3850 |
5500 |
1762 |
90 |
2920 |
4090 |
4090 |
5840 |
5097 |
92 |
3040 |
4260 |
4260 |
6080 |
5326 |
95 |
3230 |
4510 |
4510 |
6440 |
5679 |
97 |
3340 |
4680 |
4680 |
6690 |
5920 |
100 |
3530 |
4940 |
4940 |
7060 |
6292 |
102 |
3660 |
5120 |
5120 |
7320 |
6546 |
105 |
3850 |
5390 |
5390 |
7700 |
6937 |
107 |
3980 |
5570 |
5570 |
7960 |
7204 |
111 |
4250 |
5940 |
5940 |
8480 |
7752 |
114 |
4440 |
6230 |
6230 |
8890 |
8177 |
117 |
4650 |
6510 |
6510 |
9300 |
8613 |
120 |
4850 |
6810 |
6810 |
9720 |
9060 |
122 |
5000 |
7000 |
7000 |
9990 |
9360 |
124 |
5140 |
7200 |
7200 |
10280 |
9675 |
127 |
5350 |
7490 |
7490 |
10710 |
10148 |
130 |
5570 |
7800 |
7800 |
11140 |
10635 |
132 |
5720 |
8000 |
8000 |
11420 |
10965 |
137 |
6080 |
8510 |
8510 |
12160 |
11810 |
142 |
6450 |
9030 |
9030 |
12910 |
12690 |
147 |
6840 |
9560 |
9560 |
13660 |
13600 |
152 |
7220 |
10100 |
10100 |
14430 |
14500 |
157 |
7600 |
10640 |
10640 |
15200 |
15520 |
162 |
7990 |
11180 |
11180 |
15980 |
16530 |
Marine anchor chain in factory:
IACS Certificates:
