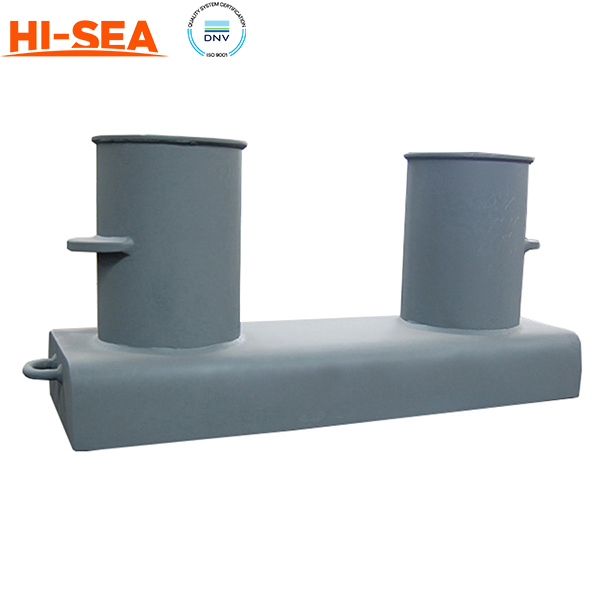

GBT554-1996 Marine Double Bollard Type C

GBT554-1996 Marine Double Bollard Type C

Description:

GBT554-1996 marine bollard has five types: type A, type B inserted bollard, type C simple bollard, type D single cross bollard, type E double cross bollard. Different types have different nominal diameters. All these bollards are produced according to the standard of GBT554-1996 and got the approval of the China Classification Society. Also, we can provide you bollard according to your specific requirements. If you are interested in any of our products, please feel free to contact us.

Advantages:

GBT554-1996 Marine Double Bollard Type C is a type of bollard that is designed specifically for marine applications, typically used for mooring and towing ships and other large vessels. This bollard has several benefits, including:

1. High Strength: The GBT554-1996 Marine Double Bollard Type C is made of high-quality materials that are specifically designed to withstand the harsh marine environment, including saltwater, extreme temperatures, and heavy loads. The bollard is typically made of cast steel or ductile iron, which makes it strong and durable.

2. Easy to Use: The design of this bollard makes it easy to use, as it has two horns or cleats that provide a secure point for tying off ropes or lines. This makes it simple for ship operators to moor or tow vessels, providing a stable and reliable anchor point.

3. Versatility: The GBT554-1996 Marine Double Bollard Type C can be used for a variety of applications, including mooring and towing, and it can be used with a variety of rope or line sizes, which makes it a versatile solution for different types of vessels.

4. Cost-effective: The GBT554-1996 Marine Double Bollard Type C is a cost-effective solution for marine applications, as it provides a reliable and durable anchor point that requires minimal maintenance. Its long lifespan also means that it can provide significant cost savings over time compared to other types of bollards.

Overall, the GBT554-1996 Marine Double Bollard Type C is a high-quality, versatile, and cost-effective solution for marine applications, making it an excellent choice for ship operators looking for a reliable and durable anchor point.vy loads. The bollard is typically made of cast steel or ductile iron, which makes it strong and durable.

Features:

Model Type: Marine Double Bollard;

Material: Steel Plate;

Certificates: CCS, ABS, BV, LR, NK, RINA, etc.;

Standard: GBT554-1996.

Drawing of GBT554-1996 Marine Double Bollard Type C:

Parameters of GBT554-1996 Marine Double Bollard Type C:

Nominal Dia. (mm)	Max. Breaking Load KN	A	b	B	D	D1	h	h1	H	L	r	t	Weight (kg)
50	13	180	32	100	50	65	9	26	115	310	20	6	4.5
75	18	275	50	125	75	95	12	43	170	430	20	7	10.8
100	25	350	65	160	100	120	14	51	220	540	25	7	18.6
125	34	430	80	200	125	145	15	60	275	676	28	9	34.3
150	43	500	100	230	150	170	16	70	330	800	35	9	49
