GB11579-89 Light Weight Anchor

GB11579-89 Light Weight Anchor

Introduction:

GB11579-89 Light weight anchor also called LWT Anchor. It is produced according to the standard GB11579-89, with weight range 14kg to 20000kg. This anchor is designed with enlarged flukes and for quick and stable penetration in sand or mud bottom. It looks like Danforth anchor or Stato anchor. If you are interested in our products, please feel free to contact us.

Drawing of GB11579-89 Light Weight Anchor:

Main Model of GB11579-89 Light Weight Anchor:

Nominal Weight(kg)

A

B

C

D

E

14

770

730

222

444

288

23

885

840

252

508

328

34

965

915

279

559

366

45

1055

1000

310

610

396

70

1185

1130

348

686

450

90

1205

1140

360

737

480

140

1345

1270

414

825

540

180

1460

1380

450

895

584

230

1560

1480

482

952

610

340

1750

1640

560

1068

680

450

1910

1800

610

1165

740

680

2190

2080

700

1340

840

910

2350

2200

762

1435

940

1140

2580

2450

825

1557

1000

1360

2750

2600

880

1680

1060

1500

2830

2680

912

1730

1080

1820

2940

2790

952

1800

1120

2270

2990

2840

984

1830

1130

2730

3150

2900

1040

1930

1200

3180

3200

3030

1070

1960

1240

3630

3250

3070

1105

1980

1276

4100

3380

3200

1150

2060

1330

4540

3490

3310

1180

2130

1370

5000

3600

3420

1226

2200

1400

5500

3710

3520

1264

2260

1450

5900

3810

3610

1296

2320

1500

6400

3910

3710

1334

2390

1540

6800

3990

3790

1362

2440

1570

7300

4080

3870

1394

2490

1610

7700

4170

3950

1422

2540

1640

8200

4240

4020

1448

2590

1670

8600

4320

4100

1474

2640

1700

9100

4390

4170

1500

2690

1730

10000

4540

4300

1546

2770

1780

11400

4730

4400

1614

2890

1860

13600

5030

4800

1716

3070

1980

15000

5200

4950

1774

3170

2050

16000

5290

5050

1804

3230

2080

18000

5540

5280

1904

3330

2180

20000

5710

5450

1950

3480

2250

For Introduction of Cast Steel Anchor Production Process Please Check the Link Below:

http://www.cqhisea.com/newsshow.php?cid=4&id=99

Comparison of Good and Bad Quality Anchors:


Good Quality

Bad Quality

Features

Effect

Features

Effect

Accurate mold size

The weight of the anchor is up to standard, and the surface is smooth and flat

The mold is worn but not replaced in time, or the water content of the wood mold is too high

There are local defects in the anchor, and the water content of the wood mold decreases after a period of use, which leads to deformation and size reduction of castings, and the weight of the cast anchor becomes lighter.

Smelting and casting with qualified raw materials

Anchor with high structural strength

Raw materials plus other scrap metal

The structural strength of the anchor is insufficient, and cracking occurs after use

Bright and even paint

Anti-rust effect is obvious and durable

Rough and uneven paint surface

The paint layer peels off and the anchor will be rusted after a period of time

Tapper pin of the anchor fixed with lead

The anchor shackle is firm and not easy to fall off

Use tapper pin to fix the anchor shackle only

anchor will lost due to the tapered pin is easy to fall off

Features:

Type: Light Weight Anchor;

Material: ZG200-400C Cast Steel;

Nominal Weight: 14KG-20000KG;

Finish: Black bitumen paint, anti-rusting paint or customized;

Packing: Carton, Plywood Case, Plywood Pallet or Nude Packing;

Certificates: CCS, ABS, BV, LR, NK, RINA,etc.

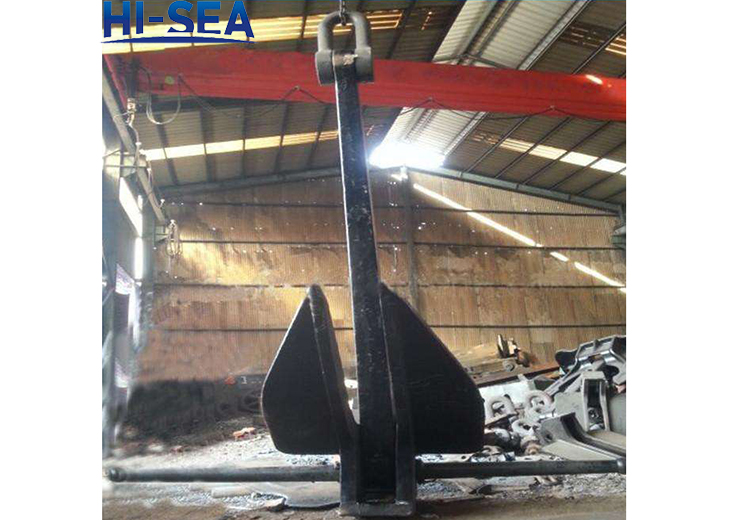

Light Weight Anchor in Factory:
