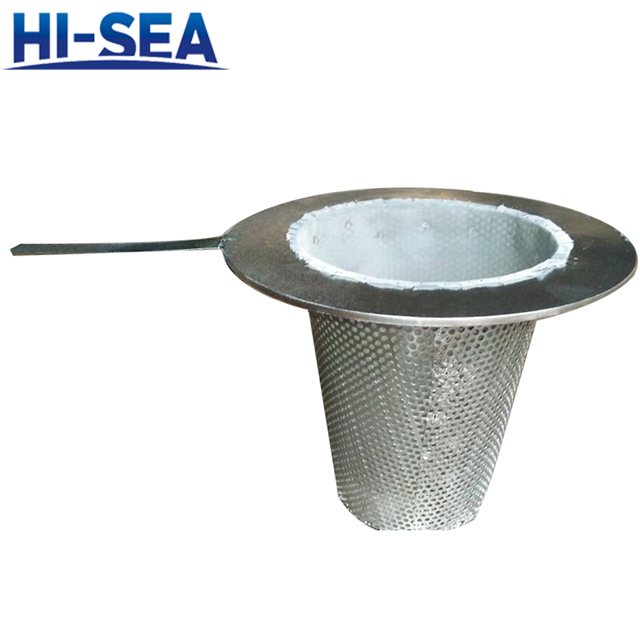

Flat Bottom Temporary Strainer.

Flat Bottom Temporary Strainer


Selection Table

DN

15~600

Shell material

Stainless SteelPP, PVC, F46

Filtration accuracy

10~500 mesh

Connection

Flange wafer

Pressure

0.25~10 Mpa, 150~600Lb


Drawing

Specification

DN

Dimension

D

D1

D2

T

L

40

92

30

20

2

65

50

107

44

32

2

65

65

127

58

38

2

80

85

142

68

50

2

90

100

162

90

64

2

115

125

192

114

82

2

140

150

218

140

102

2

165

200

272

188

144

2

215

250

329

238

184

2

255

300

384

288

226

2

305

350

444

316

258

3

330

400

495

366

298

3

355

450

555

414

344

3

380

500

617

464

382

3

430

600

724

564

458

3

510
