FH32 Shipbuilding Steel Plate

FH32 Shipbuilding Steel Plate

The steel grade is ABS grade AB/FH32, which is equivalent with CCSFH32, BVFH32, NV F32, GL-F32, KRFH32, LRFH32, KF32 and RINA-FH32. AB/FH32 shipbuilding steel plate is a kind of hot rolled high tensile strength marine steel plate, with the minimum yield strength at 315MPa. The AB/FH32 shipbuilding steel plate is ideal for the offshore oil drilling platform, the hull and ship repairing. More specifically, the thin but wide plates are used for to contribute hull of ships and the cranes of bulk cargo ships and vessels in low temperature oceans.

The size of steel plate and additional treatment including shot blasting and painting,cutting and welding can be customized as your request.

If you have any interest, please feel free to contact us.

Stock Sizes

Thickness*Width*Length  3-450mm*1220-4200mm*5000-18000mm

Surface Treatment: Hot rolled and Coated or shot blasting and painting

Test: Ultrasonic examination,Normalized,Quenched and Tempered,Z-test(Z15,Z25,Z35)

Specifications of FH32 Shipbuilding Steel Plate

Project

Data

Steel Grade

AB/FH32

Chemical Composition

C %

≦0.16

Si %

≦0.50

Mn %

0.90~1.60

P %

0.020

S %

≦0.020

Cu %

≦0.35

Cr %

0.20

Ni %

0.80

Nb %

0.02~0.05

V %

0.05~0.10

Ti %

0.02

Mo %

0.08

N %

0.009

Mechanical Property

Upper Yield strength (ReH/MPa)

315

Tensile Strength (Rm/MPa)

450~570

Elongation after Fracture

(A/%)

22

Charpy V-Notch Impact Test

Thickness: ≦50mm

Longitudinal (KV2/J)

31

Transverse (KV2/J)

22

Thickness: >50~70

Longitudinal (KV2/J)

38

Transverse (KV2/J)

26

Thickness: >70~150

Longitudinal (KV2/J)

46

Transverse (KV2/J)

31

Test Temperature ()

-60

Plate Size

Thickness (mm)

6~350

Width (mm)

900~4850

Length (mm)

3000~25000

Note

We can customize plate sizes for you.

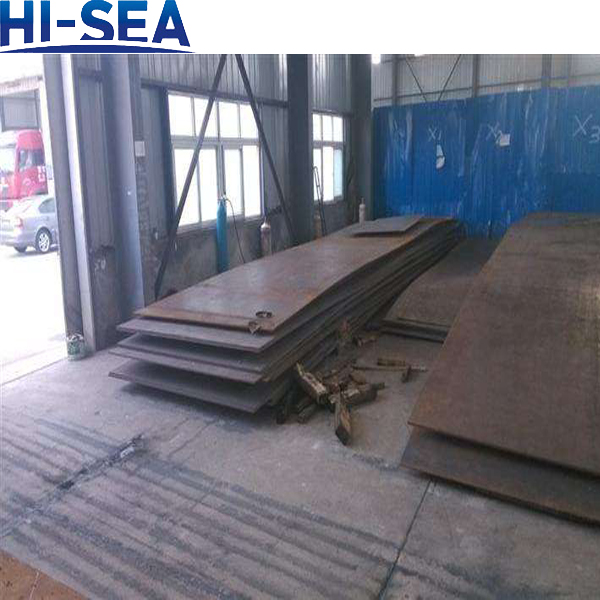

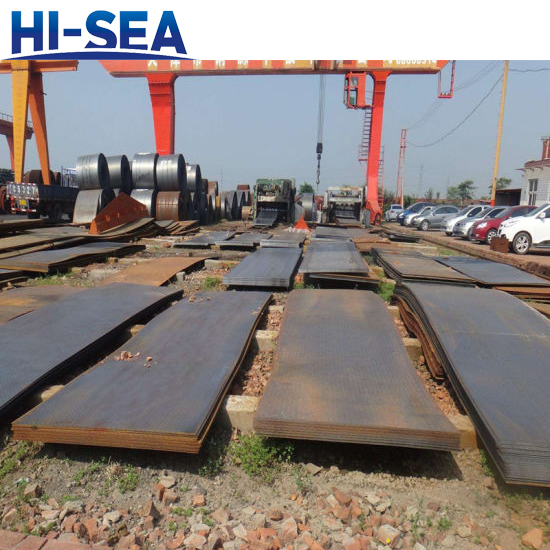

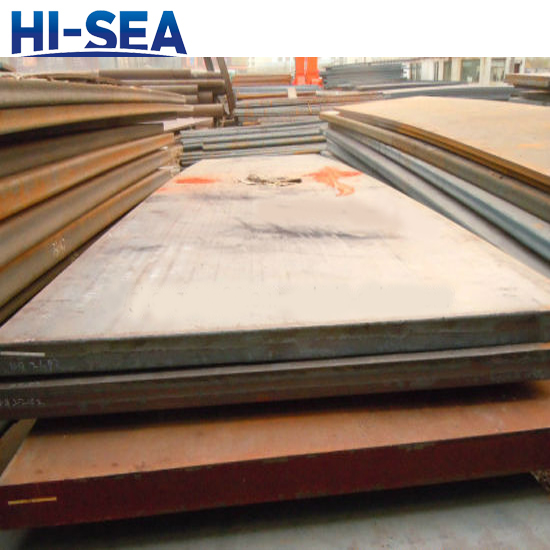

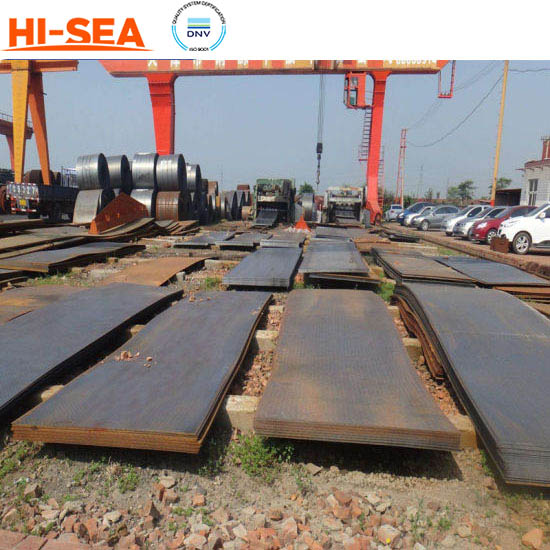

Ph
otos of FH32
Shipbuilding Steel Plate:
