F Series Boat Fender - PVC Buoy - Hi-sea

F Series Boat Fender


F Series Boat Fender

Overview

F series boat fender, a twin eye type fender. With the unique reinforced rib design, which greatly improves the crash worthiness of the fender, and allowing the fender to adapt to harsher climates and weather conditions.

Outstanding & high-quality PVC raw materials, twin eye seamless fender, the multiple rib reinforced solid rope which ensure the highest breaking strength available. Non-toxic, seawater corrosion resistance, and meets the national environmental protection requirements are the quality features of PVC materials.

Features

. Twin eye design for vertical or horizontal use

. Use for pilings, locks, concrete walls

. Anti- UV

. Anti-aging

. Low cost, low labor, low maintenance

Specifications


Model F-1 F-02 F-2 F-3 F-4 F-5
       Size          (diameter×length)        6×25 in        15×64 cm        8×27 in        20×68 cm        9×25 in        22×64 cm       9×30 in        22×76 cm      9×41 in        22×104 cm      12×30 in         30×76 cm
Eye Diameter        0.7 in        1.8 cm       0.7 in         1.8 cm

         0.9 in           2.2 cm

        0.9 in           2.2 cm        0.9 in           2.2 cm         1.0 in           2.4 cm
Circumference 18.8 in    47.1 cm       25.1 in        62.8 cm     28.3 in      69.1 cm        28.3 in          69.1 cm        28.3 in          69.1 cm    37.7 in      95.8 cm
Volume        18 lbs         8  kg          25 lbs         12 kg        29 lbs        13 kg           44 lbs          20 kg       77 lbs       35 kg        99 lbs         45 kg
Pieces Per Carton 10 10 10 10 5 5

Model F-6 F-7 F-8 F-10 F-11 F-13
        Size          (diameter×length)   12×43 in    30×109 cm  15×41 in   38×104 cm   15×58 in    38×147 cm 18.5×50 in 47×127cm       24×57 in     60×145cm    32×77 in    80×195 cm
Eye Diameter      1.0 in       2.4 cm      1.0 in        2.4 cm     1.0 in       2.4 cm       1.0 in         2.4 cm       1.1 in         2.7 cm        1.2 in         3.0 cm
Circumference     37.7 in      95.8 cm     47.1 in       119.3 cm     47.1 in     119.3 cm      58.1 in      147.6 cm      75.4 in      188.4 cm     100.5 in      251.2 cm
Volume     165 lbs    75 kg      209 lbs     95 kg     330 lbs     150 kg       340 lbs      155 kg       530 kg      240 kg     1320 lbs    599 kg
Pieces Per Carton 5 5 4 2 3 2

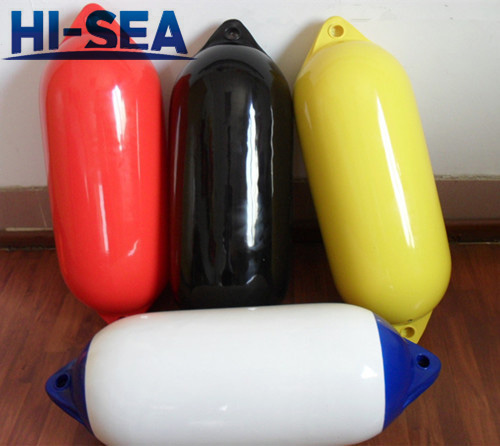

Pictures of F Series Yacht Fender
