Explosion-proof Energy-saving LED Light - Marine Explosion-proof Light - Hi-sea

Explosion-proof Energy-saving LED Light

Explosion-proof Energy-saving LED Light

The Scope of Application:

Widely used for common and working illumination in areas like ships, and offshore platform

Suitable for areas with energy-saving projects and difficult to overhaul and replace light

Suitable for moist areas with high protection requirements

Zone 1 and Zone 2

A B C

T1~T6

Product Characteristic

Adopt fin-type die casting aluminum housing. Life span last long.

Anti-glare design, high energy impact resistance, heat fusion resistance, high light transmittance

Pure flameproof structure, more reliable explosion-proof performance

Secondary optical distribution system designed by professional optical software, with reasonable light distribution and uniform illumination

Patented design protection structure to ensure normal operation in bad conditions

Production Authentication:

Approved by CCS

Specification:

Model

Power

Voltage

Ex-mark

Light Source

Protection

Class

Material

Weight

Enclosure

BAD85-S20

20

AC220V

Exd CT6 Gb

LED

IP66

Aluminium

alloy

3.7kg

BAD85-S30

30

AC220V

Exd CT6 Gb

LED

IP66

Aluminium

alloy

3.7kg

BAD85-S50

50

AC220V

Exd CT6 Gb

LED

IP66

Aluminium

alloy

6.8kg

BAD85-S70

70

AC220V

Exd CT6 Gb

LED

IP66

Aluminium

alloy

6.8kg

BAD85-S100

100

AC220V

Exd CT6 Gb

LED

IP66

Aluminium

alloy

7.8kg

BAD85-S120

120

AC220V

Exd CT6 Gb

LED

IP66

Aluminium

alloy

7.8kg

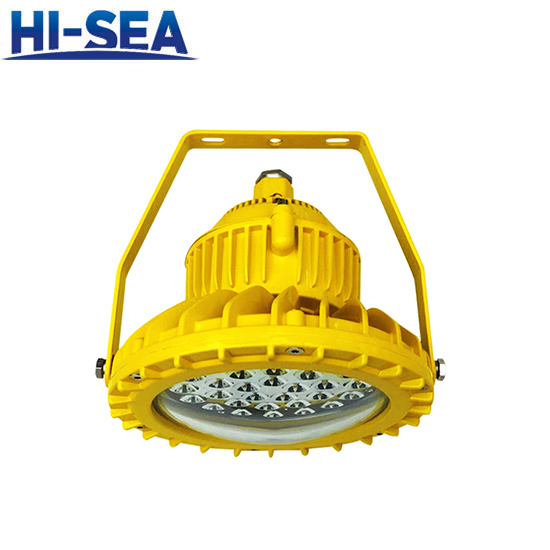

Explosion-proof Energy-saving LED Light BAT95-G:
