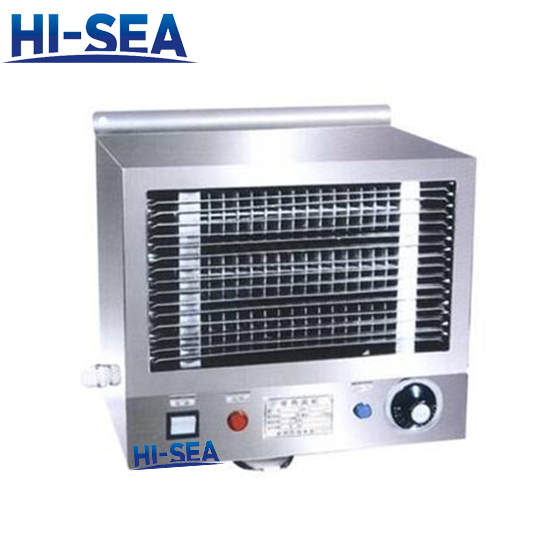

Explosion Proof Heating Fan

Explosion Proof Heating Fan

1. General
Explosion Proof Heating Fan adopts air conditioning design, base installation,beautiful appearance generous, with fault indicator light and wind speed adjustable device, is rising quickly, fast heat dissipation, high fire rating characteristics, general 0.3 MPa saturated steam, heating medium or 60-90℃ hot water, must enable the equipment to make the cabin temperature maintained at the required temperature, equipment and piping of the quarantee hold freezing, for the ship line. Can be customized production according to customer's specific requirements.
2. Performance Parameter

Voltage V	Frequency Hz	Motor Power Hz	Air Volume M3/h	Steam Pressure MPa	Heat Release Kcal/h	Condensation Water Kg/h	A1 (mm)	A2 (mm)	B1 (mm)	B2 (mm)
220/380	50/60	130	1300	≤0.4	4300	7.5	650	450	320	160
220/380	50/60	180	2500	≤0.4	15120	22.5	750	500	420	260
220/380	50/60	250	3000	≤0.4	21150	30	850	550	420	260

Access Tube DN	Protection Grade	Noise
20	IP44	55
25	IP44	65
32	IP44	70

REMARK: Any detail is acceptable if it is necessary for you.
3. IACS Certificate: ABS, KR, CCS, DNV▪GL, LR, BV, CE, NK
