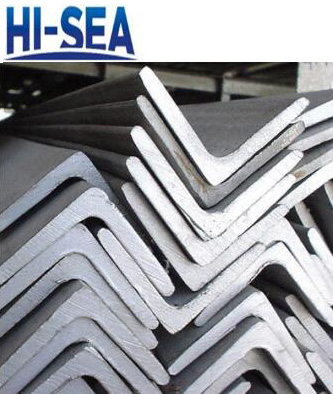

European Standard Equal Leg Angles

European Standard Equal Leg Angles

Application:

Equal leg angles are described by giving both leg length and the wall thickness (mm), for example: 25×25×3. The European standard equal leg angles are made of structural steel and engineering steel, including following steel grades: S185, S235, S275, S355, S450, E295,E355, E360. They are manufactured by Chinese excellent steel mills strictly according to European standard EN 10056. The European standard equal leg angles can be used for shipbuilding, bridges, large buildings, power transmission towers. In addition to the European standard equal leg angles, we also supply European standard unequal leg angles, Chinese standard steel angles, Japanese standard steel angles, American standard steel angles, stainless steel angles, galvanized steel angles and etc. We provide you with diverse dimensions. If you have any specific requirements, and we are pleased to hear from your need.

Features of European Standard Equal Leg Angles:

• Comply with standard EN 10025 and EN 10056;

• Made of structural steel, engineering steel or marine steel;

• wide and complete dimensions;

• Fast delivery;

• Precision-made, reliable and economical.


Dimensions of European Standard Equal Leg Angles:

Designation

Mass

kg/m

Sectional Area

cm2

Dimensions

a

mm

t

mm

rroot

mm

20×20×3

0.882

1.12

20

3

3.5

25×25×3

1.12

1.42

25

3

3.5

25×25×4

1.45

1.85

25

4

3.5

30×30×3

1.36

1.74

30

3

5

30×30×4

1.78

2.27

30

4

5

35×35×4

2.09

2.67

35

4

5

40×40×4

2.42

3.08

40

4

6

40×40×5

2.97

3.79

40

5

6

45×45×4.5

3.06

3.90

45

4.5

7

50×50×4

3.06

3.89

50

4

7

50×50×5

3.77

4.80

50

5

7

50×50×6

4.47

5.69

50

6

7

60×60×5

4.57

5.82

60

5

8

60×60×6

5.42

6.91

60

6

8

60×60×8

7.09

9.03

60

8

8

65×65×7

6.83

8.7

65

7

9

70×70×6

6.38

8.13

70

6

9

70×70×7

7.38

9.40

70

7

9

75×75×6

6.85

8.73

75

6

9

75×75×8

8.99

11.4

75

8

9

80×80×8

9.63

12.3

80

8

10

80×80×10

11.9

15.1

80

10

10

90×90×7

9.61

12.2

90

7

11

90×90×8

10.9

13.9

90

8

11

90×90×9

12.2

15.5

90

9

11

90×90×10

13.4

17.1

90

10

11

100×100×8

12.2

15.5

100

8

12

100×100×10

15.0

19.2

100

10

12

100×100×12

17.8

22.7

100

12

12

120×120×10

18.2

23.2

120

10

13

120×120×12

21.6

27.5

120

12

13

130×130×12

23.6

30.0

130

12

14

150×150×10

23.0

29.3

150

10

16

150×150×12

27.3

34.8

150

12

16

150×150×15

33.8

43.0

150

15

16

160×160×15

36.2

46.1

160

15

17

180×180×16

43.5

55.4

18.

16

18

180×180×18

48.6

61.9

180

18

18

200×200×16

48.5

61.8

200

16

18

200×200×18

54.3

69.1

200

18

18

200×200×20

59.9

76.3

200

20

18

200×200×24

71.1

90.6

200

24

18

250×250×28

104

133

250

28

18

250×250×35

128

163

250

35

18

Note

The length of angles can be customized.

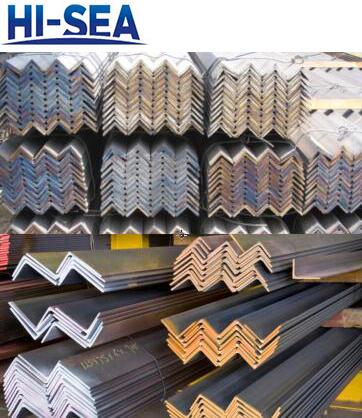

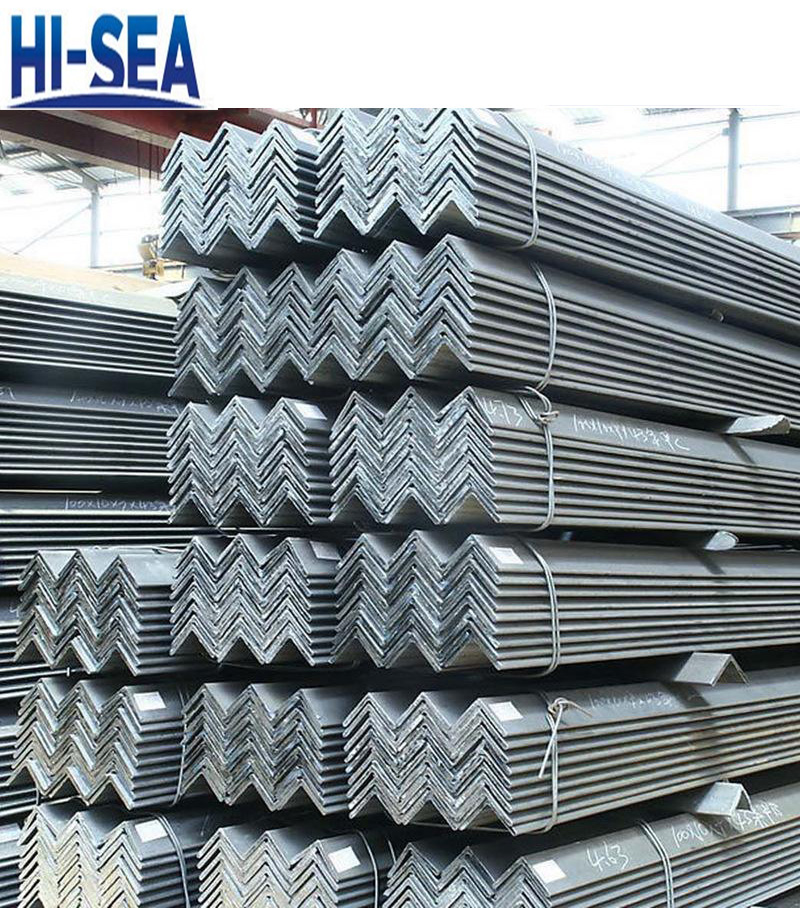

Steel angles in factory:
