Elevator Steel Wire Rope

Elevator Steel Wire Rope

Description：

     Elevator Wire ropes apply to construct lifting systems and lifts. They are generally supplied as a pair. Right-hand regular lay ropes are generally used in elevator industry. In some special cases, right-hand Lang lay ropes are chosen. The  core of elevator wire rope can divide into three types: fiber core, steel core, mixed core. And an elevator wire rope is composed of six, eight or nine strands. A variety of materials can adapt to various needs in life. Elevator steel wire rope equipped with durable, various, reliable safety, bending fatigue resistance.

Detailed Information:

1. Common structure: 6×19(a)class, 6×19(b)class, 8×19(a)class, 8×19(b)class, 9×19 class, etc.

2.Surface treatment: galvanized, oiled (as requirements)

3.Material: high carbon steel wires ,bright steel wires, galvanised steel wires, stainless sieel wires, etc.

4.Diameter：Customized according to customer needs.

5.Breaking load：1570,1670,1770,1870 Mpa (customized according to customer needs.)

6.Strand construction：Seale(1＋9＋9), Warrington（1＋6＋6/6), Filler(1＋6＋6F＋12), Warring-Seale(1＋7＋7/7＋14)

7.Certificate & Standard:

Certificate：ABS，LR，CE，CCS，BV，DNV

Standard：GB8919，GB/T 20067, ISO, ASTM, EN, JIS, etc.

Superiority:

1.Wear resistance.

2.Bending fatigue resistance.

3.Good softness and abrasion resistance

4.We have advanced and fully comprehensive specified lengths service in the wire rope industry.

5.We provide the speified lengths of fiber core service in the whole wire rope manufacturing process.

6.We have advanced and standardized packaging system.

7.We adopt the high quality sisal as the fiber core,and acording to the customer request.

8.Low structural elongation and high bending fatigue resistance performance.

9.The lubrication adopts the good quality grease oil.With the professional greasing process,make the grease coating evenly and the lubrication more uniform.

Safety Notice:

1.In steady speed.

2.Never overload .

3.Inspect regularly.

4.Clean and replace lubricant to wire rope periodically.

Rope selection of application:

Rope Construction		Application	Remarks
Class and type of core	Construction
6×19FC	6×19S＋SFC 6×19W＋SFC 6×25Fi＋SFC	Governor ropes	Recommendation: NFC for suspension ropes; SFC for governor ropes
	6×19S＋NFC 6×19W＋NFC 6×25Fi＋NFC	Suspension ropes for low-rise, low-speed elevators
8X19FC	8X19S＋SFC 8X19W＋SFC 8X25Fi＋SFC	Governor ropes
	8X19S＋NFC 8X19W＋NFC 8X25Fi＋NFC	Suspension ropes for elevator speed≤2m/s, building height ≤60m	Please specify when ordering if elevator speed ＞2m/s
8X19 Steel core	8X19S＋8×7＋1×19W 8X19W＋8×7＋1×19W 8X25Fi＋8×7＋1×19W	Suspension ropes for elevator speed ﹤4m/s, building height ≤100m	Q/320205KABW02-2009 A technical agreement needs to be singed for ordering these ropes. Products comply to Q/320205KAW02-2009
8×19Mixed core	8X19S＋8×7＋FC 8X19W＋8×7＋FC 8X25Fi＋8×7＋FC 8X19S＋5×7＋FC	Suspension ropes for elevator speed﹤4m/s, building height ≤100m
9X19 Steel core	9X17S＋9×7＋1×19W 9X19S＋9×7＋1×19W 9X19W＋9×7＋1×19W 9X21Fi＋9×7＋1×19W 9X25Fi＋9×7＋1×19W	Suspension ropes for elevator speed≥4m/s， building height＞100m
9X19Mixed core	9X17S＋9×7＋FC 9X19S＋9×7＋FC 9X19W＋9×7＋FC 9X21Fi＋9×7＋FC 9X25Fi＋9×7＋FC
6X36FC	6X29Fi＋FC 6X36WSi＋FC	Compensating ropes

Comparison of performance characteristics of NFC, SFC,Independent wire rope core with fiber core and IWRC elevator rope:

Typical cross sections of wire ropes
Type	NATURAL FIBER CORE (NFC)	SYNTHETIC FIBER CORE (SFC)	INDEPENDENT WIRE ROPE CORE WITH FIBER CORE	INDEPENDENT WIRE ROPE CORE (IWR)
Diameter uniformity	Poor Affected by the quality of the fiber core	About good Fiber core diameter is relatively uniform	Good	Very good
Dimensional stability	Poor	About good	Good	Very good
Structural elongation	≯0.25%	≯0.25%	≯0.20%	≯0.15%
Percentage of total elongation	≯0.50%	≯0.50%	≯0.30%	≯0.25%
Elasticity modulus	74700-80400	74700-80400	82900-98700	82900-98700
Breaking load	Relatively small	Similar to NFC	Large More than 23% larger than the same diameter fiber core rope	Large More than 25% larger than the same diameter fiber core rope
Fatigue life	Relatively short steel core	Relatively short steel core	Long Under the same load condition, its fatigue life is 1 times longer than that of fiber core rope	Long Under the same load condition, its fatigue life is 1 times longer than that of fiber core rope
Oil content	Good oil storage. Less maintenance	Poor oil immersion ability, and can not work at too low or too high temperature	Less maintenance and filling oil	Poor oil immersion ability. Need regular maintenance, fill oil.
Extrusion resistance	The diameter is easy to deform under extrusion	About good	The diameter deformation is small, not suitable for V-groove	Diameter is not easy to deform, not suitable for V-groove
Anti-wear	Good	——	Poor	Poor
Flexibility	Good	Good	A little poor	Poor
Cost	Relatively cheap cost	Higher cost	High cost	High cost

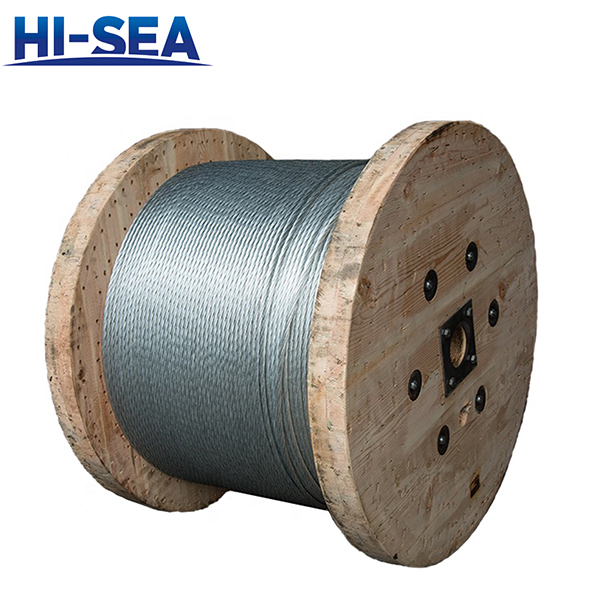

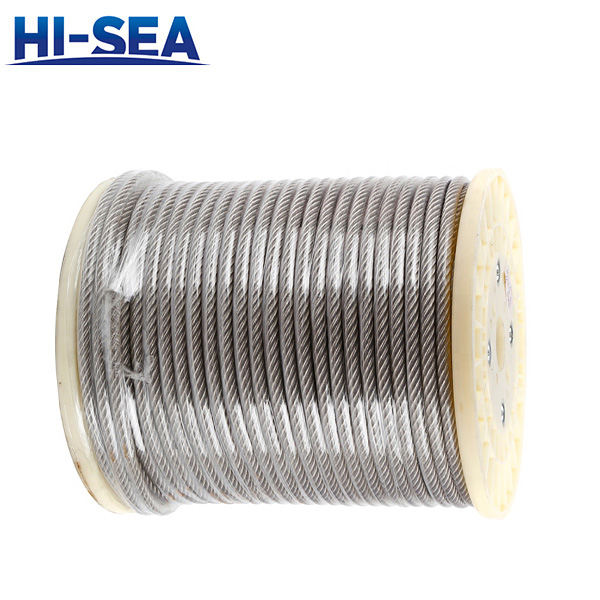

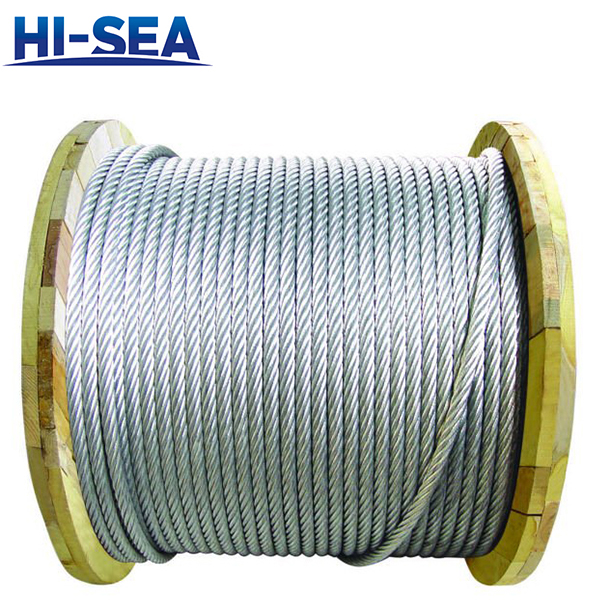

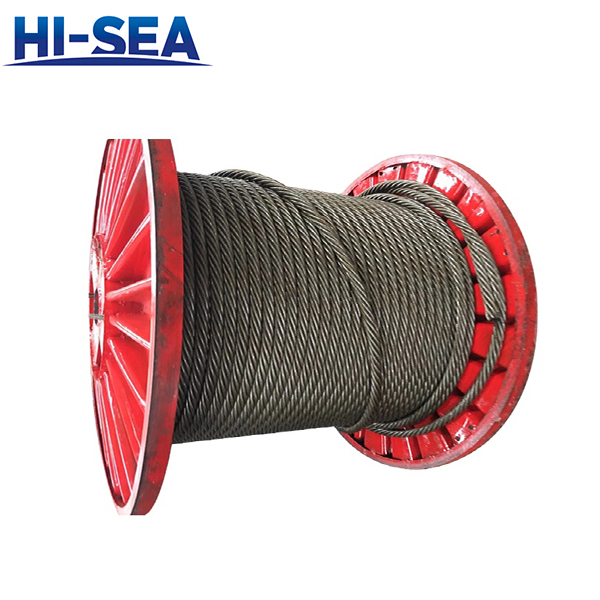

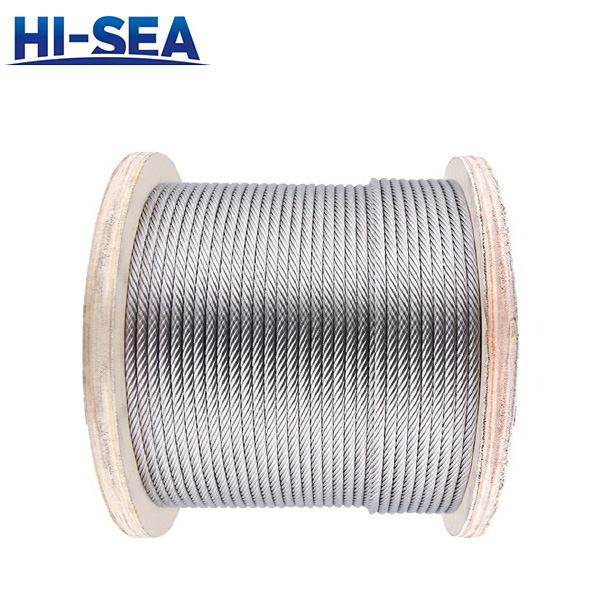

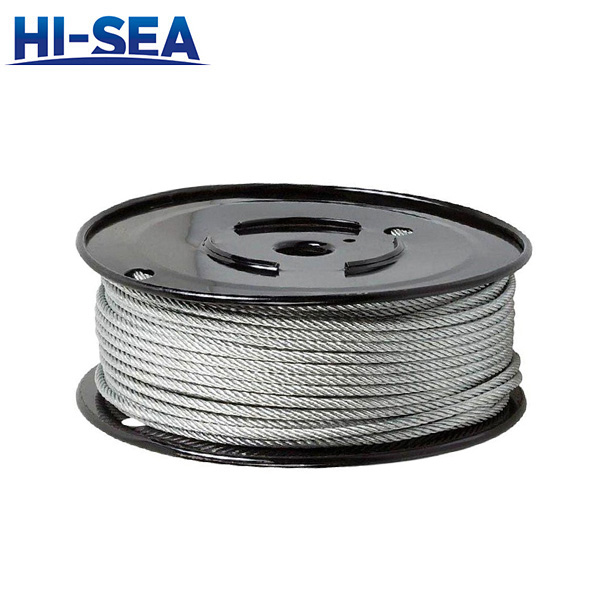

Picture of elevator steel wire rope:
