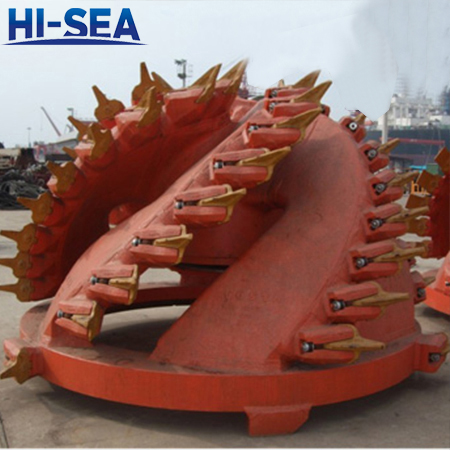

Dredge Cutter Head

Dredge Cutter Head

Dredge Cutter Head

Application
Dredge cutter head of cutter suction dredger is mainly used to cooperate with the dredger for homework. Dredge is a very common device in the clearing operations. Dredger are in charge of dredging work and so on. The cutter head is multi-use and can be used for slurry, mud, sand, compacted sand, gravel, rocks and minerals.

Advantages
The work efficiency is very high. However, the dredge cutter head is an important part of cutter suction dredger. It is available for cutting and stirring sediment. And it largely determines the dredging efficiency.

Features
1.Low cost, low spill.
2.Various cutter heads.
3.Number of blade:5 or 6.
4.Cutter shaft, cutter bearing, blade and others can be optional.
5.We can modify the parameters, according to your requirements.

Technical Parameters
InnerRing No.ofBlade RotatedSpeed(rpm) OutputTorque(kN-m) Max ShaftPower(kW) SuctionPipe Dia.(mm) Capacity(m3/h) WaterOverflow ofPump(m3/h)
Dia.(mm)
830 5 0-34 9.7 35 250-300 200 800
955 5 0-35 17 62 350-400 350 1200-1400
955 5 0-30 21 66 350-400 350 1200-1400
1330 5 0-30 32 101 400-450 650 2000-2500
1550 5 0-30 56 176 500-550 900 3000-3500
1750 5 0-32 75 251 600-650 1200 4000-4500
1750 5 0-30 84 264 600-650 1200 4500-5000
1750 5 0-24 90 226 600-650 1200 4500-5000
1830 5 0-30 119 375 600-650 1600 5000-6000
2000 5 0-30 175 550 650-700 1800 6000-6500
2150 6 0-30 180 750 700-750 2000 6500-8000
2260 6 0-30 186 900 800-850 3000 8500-11000
2330 6 0-30 350 1100 850-900 4000 12000-15000
2400 6 0-30 446 1400 900-950 4500 14000-16000

Product Display
