Double Braid Nylon Line

Double Braided Nylon Line

Double Braid Nylon Line

Features:

1. Material: nylon(polyamide), double braid, outside braided cover and inside braided core

2.Specification: Φ 4mm-120mm. Specific density of this kind of rope can reach 1.14 and it’s non-floating

3. Applications: boat dock and mooring lines, fishing or house decoration

4. Advantages:it has perfect abrasion, chemicals and UV resistance. And its’ melting point can be up to 215℃ so it can be used in the high temperature

5. Certifications: ABS, CCS, ISO, NK, BV, LR, RS, etc.

6. Notes: Special specification and marks can be made according to customers requirements


Parameter table:

Nominal diameter Size(circ in.) Approximate weight Minimum tensile strength
inch mm lbs/100ft lbs/100m lbs kn
1/4 6 3/4 1.7 2.5 1900 8.5
5/16 8 1 2.6 3.9 2900 12.9
3/8 9 1-1/8 3.7 5.5 4200 18.7
7/16 11 1-1/4 5.1 7.6 5700 25.4
1/2 12 1-1/2 6.6 9.8 7400 32.9
9/16 14 1-3/4 9 13.4 10200 45.4
5/8 16 2 11.6 17.2 14800 65.8
3/4 18 2-1/4 14.7 21.9 19000 84.5
7/8 22 2-3/4 21.8 32.4 28300 125.9
1 24 3 26 38.7 33500 149
1-1/16 26 3-1/4 31 46.1 39000 173.5
1-1/8 28 3-1/2 35.4 52.7 44900 199.7
1-1/4 30 3-3/4 40.7 60.6 52300 232.6
1-5/16 32 4 46.3 68.9 58800 261.6
1-1/2 36 4-1/2 58.4 86.9 74000 329.2
1-5/8 40 5 72.3 107.6 92400 411
1-3/4 44 5-1/2 87.7 130.5 110900 493.3
2 48 6 103.9 154.6 131500 584.9
2-1/8 52 6-1/2 122 181.6 152800 679.7
2-1/4 56 7 141.2 210.1 181000 805.1
2-1/2 60 7-1/2 162.6 242 201000 894.1
2-5/8 64 8 185.1 275.5 222000 987.5
2-3/4 68 8-1/2 201.2 299.4 248000 1103.2
3 72 9 234.3 348.7 277000 1232.2
3-1/4 80 10 288.9 430 341000 1516.8
3-5/8 88 11 349.9 520.7 409000 1819.3
4 96 12 416.2 619.4 475000 2112.9
4-1/4 104 13 481.5 716.6 549000 2442.1

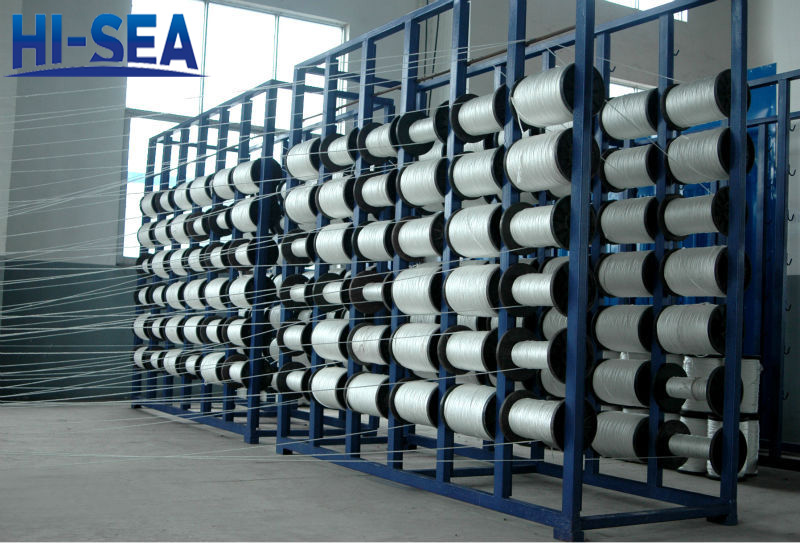

Mooring rope in factory:

Mooring Rope

IACS Certificates:
