Diesel Marine Air Compressor

Diesel Marine Air Compressor

Diesel Marine Air Compressor


Product Description

Diesel marine air compressors may also be designed for specific pressure and flow rate requirements, depending on the needs of the application. They may include features such as air filters, moisture separators, and pressure regulators to ensure that the compressed air is clean and of the correct pressure and quality. Overall, diesel marine air compressors are a reliable and efficient solution for providing compressed air on board marine vessels. Their self-contained design, reliability, and versatility make them a popular choice for many marine applications, and they are used extensively in the shipping, oil and gas, and other industries.

Advantages

We are able to provide high quality marine air compressor.our high-tech manufacture and considerate service will help minimize customers' operation and maintenance costs to reach the goal of high efficiency,reliability,energy-saving and environmental protection.If you are interested in our products,please do not hesitate to contact us directly for any information.

Features

1.Diesel drive and hand drive.
2.High efficiency,light weight,small volume,low noise and reliable running safety and reliably.
3.Easy for starting and maintenance.
4.Mainly used for starting the main engine of ships in emergency situation.

Main Technical Parameters
Product NO. Capacity Pressure Speed Motor Power Weight Dimension
m³/h Mpa r/min kg L*W*H mm)

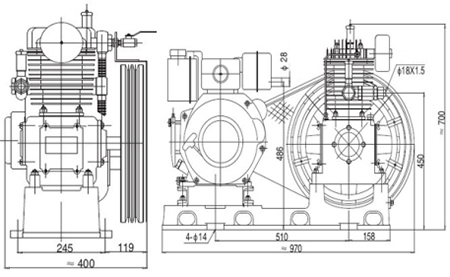

HS107-AC201 10 3.0 500 Diesel-engine Model KM178F 140 970*400*700
HS107-AC202 20.4 3.0 600 Diesel-engine Model KM186F 170 1000*500*780
Diesel Drive Emergency Air Compressor
Model Pressure Stages Speed Capacity Power of Diesel Kind of Drive Dimension
Mpa m³/h kw mm
HS107-AC101 3.0 2 1150-1750 18-22 6.3 Belt 850×730×700
HS107-AC102 3.0 2 1150-1450 20-24.5
Hand Drive Emergency Air Compressor
Model Stages Pressure Capacity Speed Weight Dimension
Mpa m³/h kg mm
HS107-AC103 2 3.0 1.6 50 double strokes/min 20 450×200×235
Note:The models in stylebook are part of our products.
