DN600 Dredge Gate Valve

DN600 Dredge Gate Valve

DN600 Dredge Gate Valve

Application
DN600 dredge gate valves are available in various sizes and configurations to accommodate different pipeline diameters and flow requirements. They are often equipped with additional features such as seals and linings to enhance their performance and extend their service life. The operation of a dredge gate valve involves raising the gate to allow materials to flow through the pipeline or lowering it to restrict or stop the flow. This control mechanism enables operators to regulate the volume and velocity of the material being discharged, ensuring efficient dredging operations and preventing pipeline clogging.

Material
1.Hydraulic cylinder: body steel 45,pistion rod 1Cr17Ni2
2.Valve body:Q235,16Mn.
3.Valve gate:stainless steel.
4.Seal:NBR,NR.
5.Fastener:Q235,Steel45,Stainless steel.

Features
1.The driving type:hydraulic cylinder and sealed by rubber.
2.Main mediums are sewage,water and oil.
3.Types:switch type and contious display type.
4.Pressure up to 2.5Mpa.

Technical Parameters

1.Working Pressure PN≤1.6Mpa
DN H1(mm) H2(mm) b(mm) d(mm) K(mm) D(mm) n-Th
600 470 2483 770 280 725 780 20-M27
we can modify the parameters,according to your requirements.
2.Working Pressure PN≤2.5Mpa
DN H1(mm) H2(mm) b(mm) d(mm) K(mm) D(mm) n-Th
600 485 2520 770 480 770 840 20-M33
we can modify the parameters,according to your requirements.

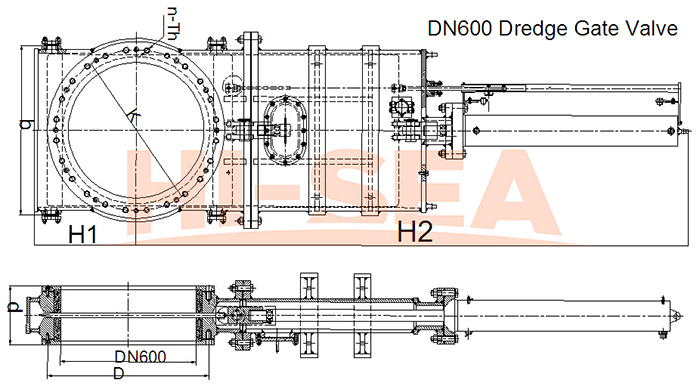

Drawing Of Product
