DIN 81915 Marine Chock Type C

[Search Related Products]

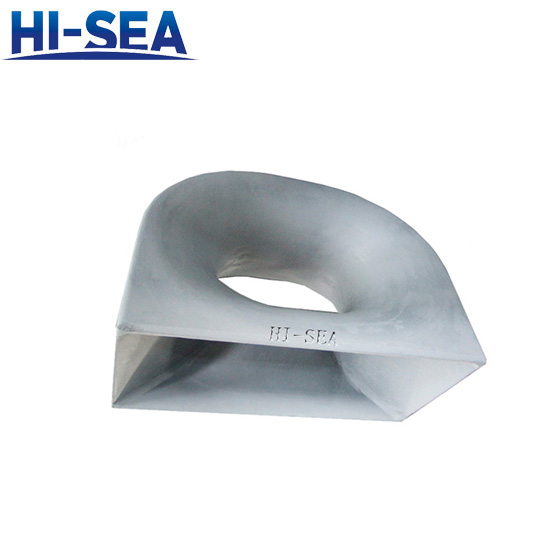

DIN 81915 Marine Chock Type C

DIN 81915 Marine Chock Type C

Application:DIN 81915 Chock has several types, type A and type B and type C, type D,type E.Mounted on deck or bulwark,it can control the position of the rope and meanwhile protect the rope from breaking.It was made by German standard.It is with high quality.For more information please contact us without any hesitation.we are always here for you.

Features:

Model Type: DIN 81915 Chock Type C

Material: Casting Steel/Casting Iron

Certificates: CCS,ABS,BV,LR,NK,RINA,etc.

Standard: DIN 81915

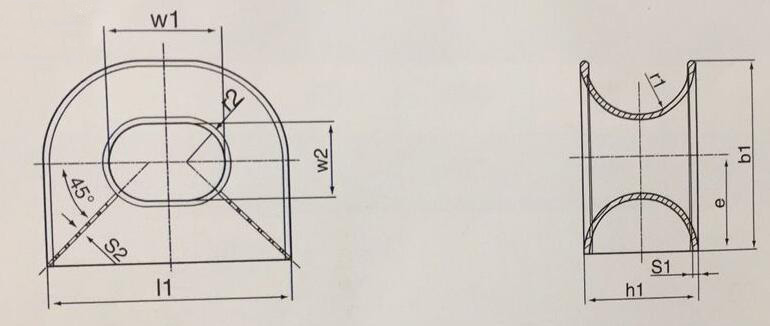

Drawing of DIN 81915 Marine Chock Type C:

DIN 81915 Marine Chock Type C

Type Wire W.L.(Kn) e b1 h1 l1 r1 r2 s1 s2 w1 w2 Weight(Kg)
c2 20 157.5 315 200 360 100 57.5 12 6 160 115 29
c3 30 195 390 250 450 125 70 14 7 200 140 48
c5 50 240 480 300 550 150 90 16 8 250 180 84.5
c8 80 292.5 585 360 680 180 112.5 18 9 320 225 135.8
c12 125 355 710 440 840 220 135 20 10 400 270 211.1
c20 200 420 840 520 1020 260 160 22 11 500 320 325.2
c32 320 550 1100 700 1300 350 200 35 20 600 400 840

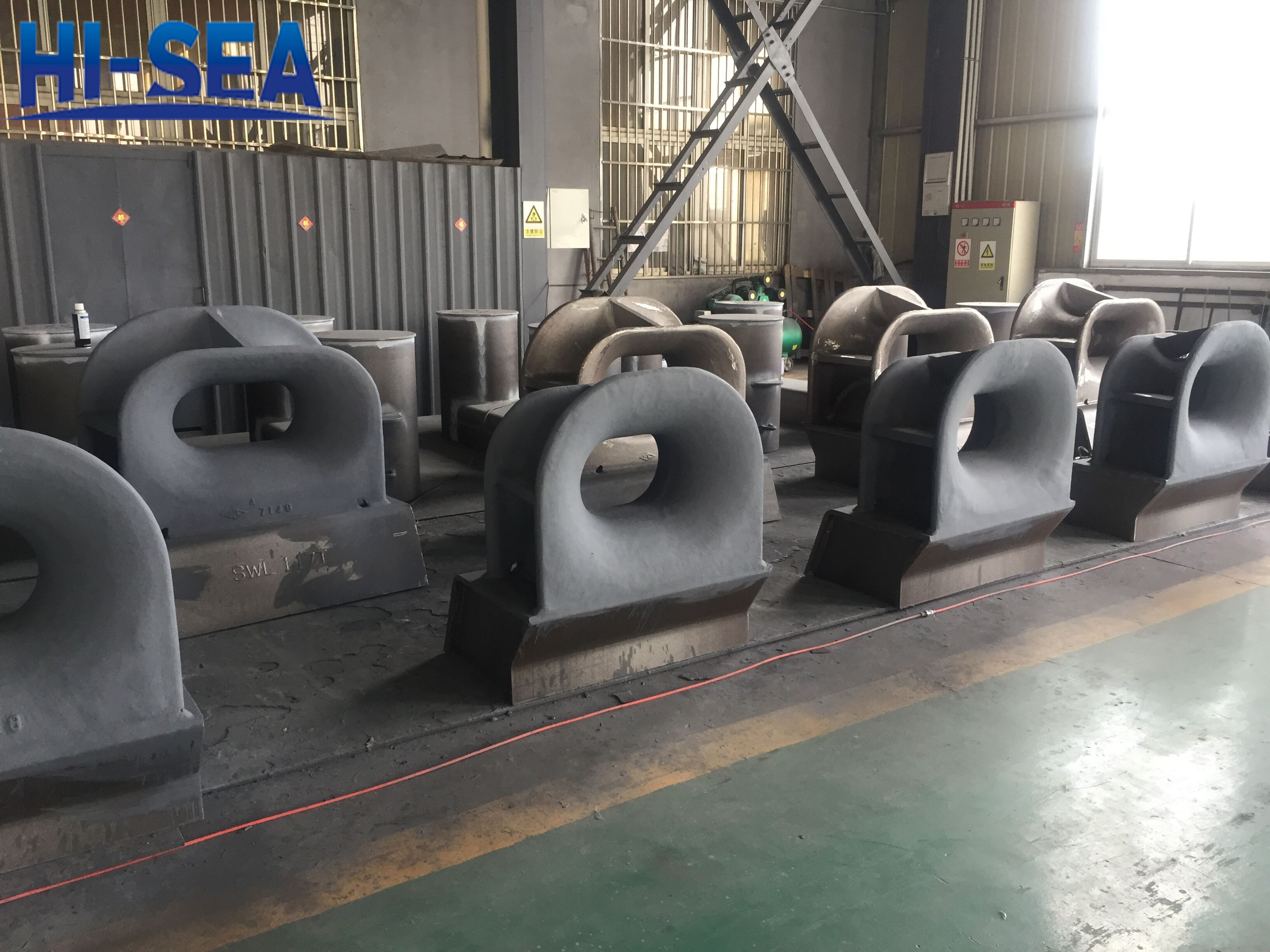

Chock in Factory:

Marine Chock
