Ceiling-type Work Light - Maine Incandescent Light - Hi-sea

Ceiling-type Work Light

Ceiling-type Work Light

The Scope of Application:

This series lights fit for the ships with water dripping, water spattering, water coagulating and weather place, such as oven cabin room, dry cabin, tunnel, pipeline and weather deck, the lampshade is bolt blocking device, and convenient to connect.

Products Characteristic

ceiling-type installation

Production Authentication:

Approved by the CCS

Approved by the authentication of CE

Adopt the Japanese standard JISF8414-2003

Specification:

code
type
Power
Voltage
lamp holder
Material
color
protection class
Weight
792053
DS7-1M
15W
24V
FE12,FE14
synthetic resin

transparent

red

green

yellow

blue

IP56
1.1kg
792054
DS7-1M
15W
24V
FB15
IP56
1.1kg
792057
DS7-2M
60W
220V
FE26
IP56
1.2kg
792058
DS7-2M
60W
220V
FB22
IP56
1.2kg
792055
DS7-2M-A
60W
220V
FE26
IP56
2.0kg
792060
DS7-3M
100W
220V
FE26
Aluminium
IP56
2.5kg
792059
DS7-3M
100W
220V
FE26
synthetic resin
IP56
2.5kg
792062
DS7-4M
200W
220V
FE26
IP56
3.0kg
792066
W
60W
220V
FE26
transparent
IP56
2.7kg

Ceiling-type Work Light DS7-2M:


Drawing of Ceiling-type Work Light DS7-1M:

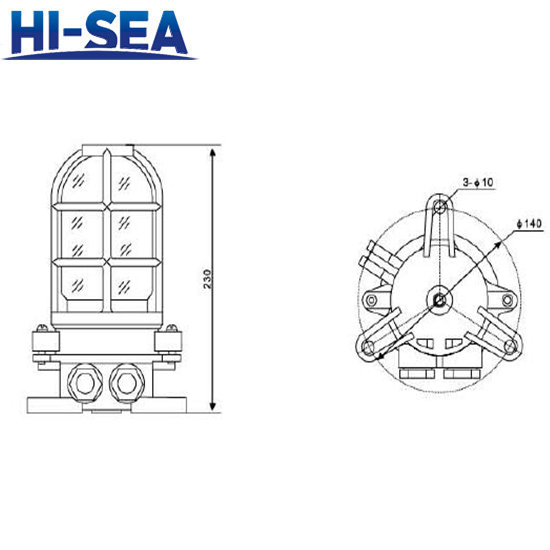

Drawing of Ceiling-type Work Light DS7-2M:
