CPT Series Marine Jet Pump

CPT Series Marine Jet Pump


CP Series Marine Jet Pump


Overview

The Series of various types of jet pump for ship drainage system drainage equipment, can also be used for conveying liquid, gas mixture, the mixture of gas and liquid, powder, more suitable for vacuum diversion, vacuum evaporation, vacuum filtration, vacuum drying, deodorizing. The basic working principle of jet pump by the main components of the first word is wraparound for "spray, suction, mixed, expansion of" four words. Namely: the injection pump is the use of high-voltage workflow body through the nozzle to produce 25 ~50m/s high-speed jet (Spray); formed in the suction chamber pressure, ejection of transported liquid (Suction); working fluid wrapped with the ejected fluid into the mixing chamber for mixing together with the energy exchange (Mixed); again diffuser chamber by converting kinetic energy into pressure energy discharge (Expanded).


Model Explanation CP (T)10-0.7

CP — Marine jet pump
10 — Capacity
0.7— Working water pressure 0.7Mpa
T  — Perpendicular type


Structural Specification

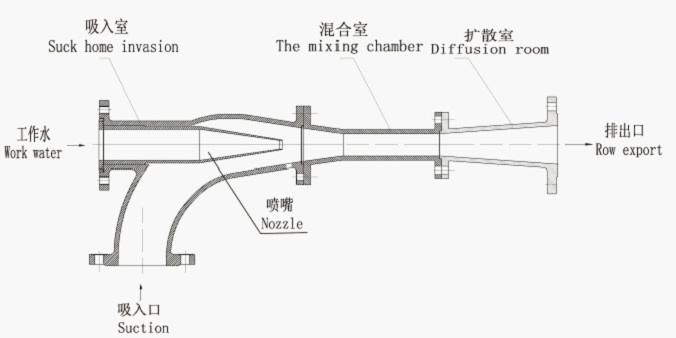

Structural Specification of CPT



Performance of Parameter

Type

Work water/ Intel/

Outlet flange

(mm)

Capacity

(m3/h)

Pressure

(Mpa)

Wastage

(m3/h)

Hs(m)

Deliver

y(m)

Weight(kg)
CP5-0.3T 32/50/50 5 0.3 6 4 5 19.5
CP10-0.3T 40/65/65 10 0.3 12 4 5 23.5
CP15-0.3 T 50/65/80 15 0.3 19 4 5 28
CP15-0.5T 50/65/80 15 0.5 24 7 11 28
CP20-0.3T 50/65/80 20 0.3 24 4 5 31
CP30-0.3T 65/100/100 30 0.3 36 4 5 50
CP40-0.3T 65/100/100 40 0.3 47 4 6 49.5
CP50-0.3T 80/125/125 50 0.3 55 3 6 75
CP100-0.3T 125/175/150 100 0.3 110 3 8 94.5
CP5-0.7T 25/50/32 5 0.7 3.6 4 8 14
CP10-0.7T 32/50/50 10 0.7 7 4 8 20
CP20-0.7T 50/65/80 20 0.7 14 4 8 28.5
CP30-0.7T 50/80/65 30 0.7 21 4 8 32
CP50-0.7T 65/100/80 50 0.7 35 4 8 48
CP60-0.7T 80/125/125 60 0.7 50 6 6 55.5
CP80-0.7T 80/125/125 80 0.7 90 5 10 75
CP100-0.7T 80/150/125 100 0.7 60 2 9 71.5
CP150-0.7T 80/150/150 150 0.7 100 2 9 77
CP200-0.7T 125/200/200 200 0.7 120 2 9 106
CP10-1.0T 50/50/65 10 1 16.7 5 2 16
CP50-1.0T 80/125/125 50 1 64 5 2 52
CP100-0.2T 200/200/250 100 0.2 305 3 7 120

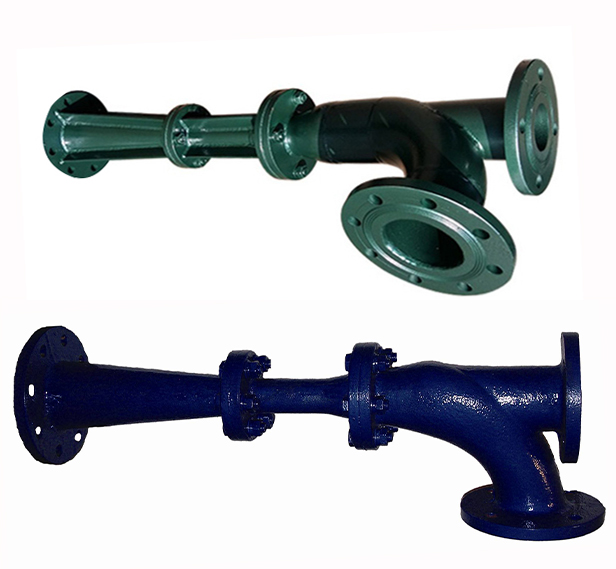

The Picture of CPT Series Marine Jet Pump

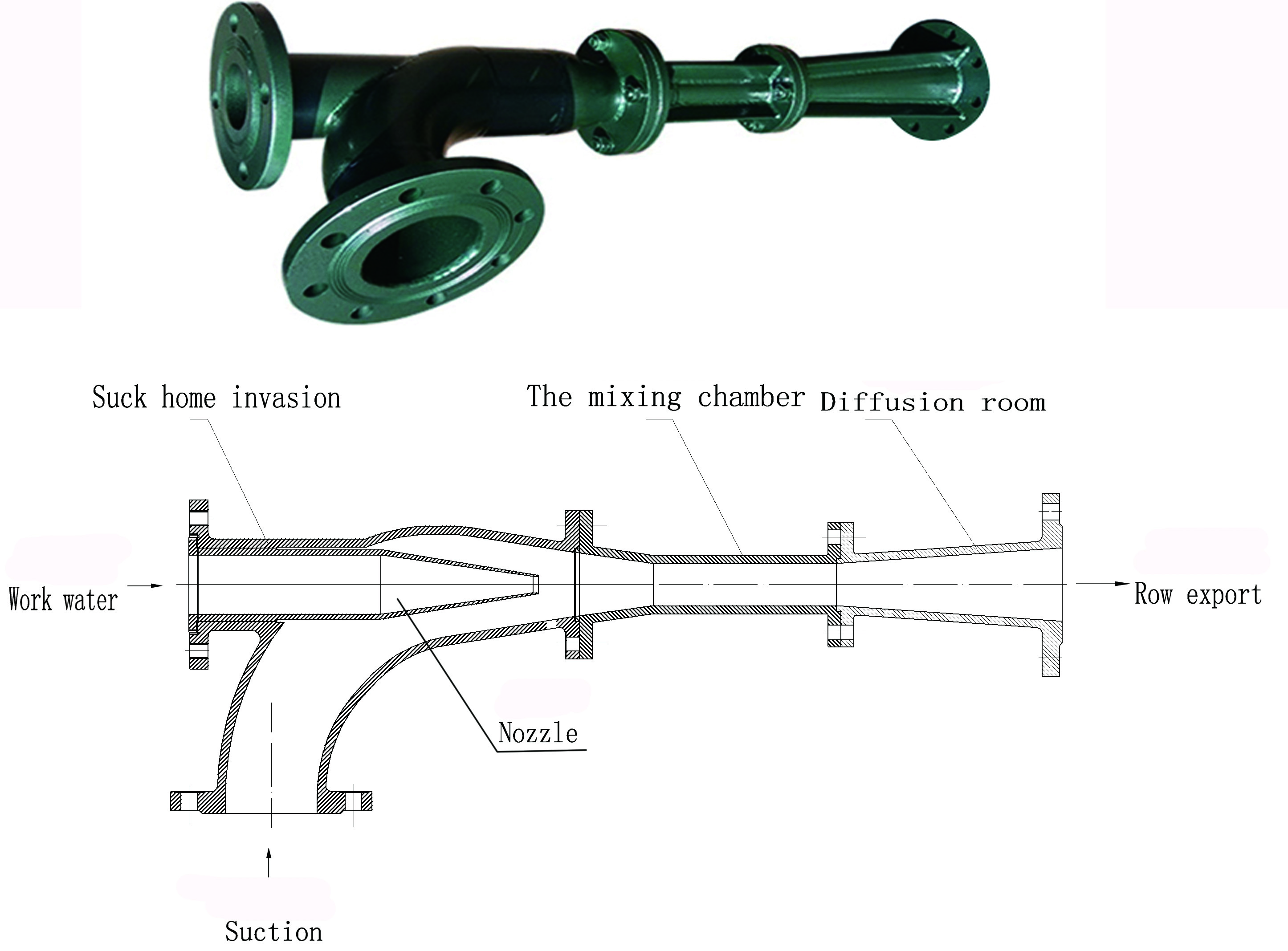

Picture of CP Jet Pump


Our Certification

The certification of CPT jet pump
