CPJ Series Marine Jet Pump

[Search Related Products]

CPJ Series Marine Jet Pump


CPJ Series Marine Jet Pump

Overview


The Series of various types of jet pump for ship drainage system drainage equipment, can also be used for conveying liquid, gas mixture, the mixture of gas and liquid, powder, more suitable for vacuum diversion, vacuum evaporation, vacuum filtration, vacuum drying, deodorizing. The basic working principle of jet pump by the main components of the first word is wraparound for "spray, suction, mixed, expansion of" four words. Namely: the injection pump is the use of high-voltage workflow body through the nozzle to produce 25 ~50m/s high-speed jet (Spray); formed in the suction chamber pressure, ejection of transported liquid (Suction); working fluid wrapped with the ejected fluid into the mixing chamber for mixing together with the energy exchange (Mixed); again diffuser chamber by converting kinetic energy into pressure energy discharge (Expanded).


Model Explanation CPJ40-50-65


CP—  Marine ejector pump
J—   Inlet form J
40—  Working water inlet diameter 40 mm
50—  Suction diameter 50 mm
65—  Discharge diameter 65 mm

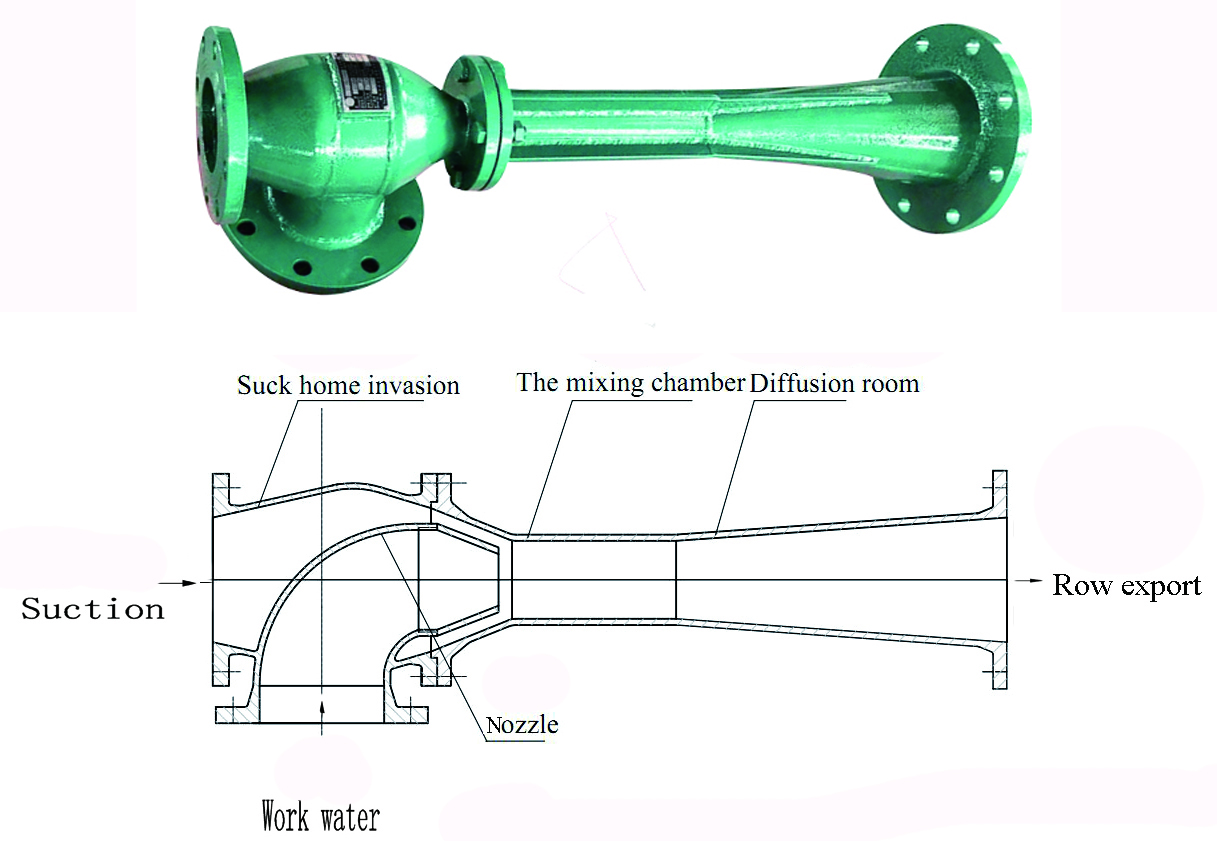

Structural Specification


Structural Specification of CPJ


Performance of Parameter
Type Capacity
m3/h
Working-pressure
MPa

Water-consumption
m3/h
Suction-head
m
Delivery
MPa
CPJ40-50-65 10 1.2 15 5 0.25
CPJ50-80-80 30 0.8 30 3 0.12
CPJ80-100-100 70 0.7 56 0.1
CPJ100-100-125 50 0.6 115 2.5 0.22
CPJ100-125-125 100 1 110 3 0.2
CPJ100-150-150 120 1 120 0.2
CPJ125-150-150 130 0.9 320 5 0.3
CPJ125-150-200 100 0.7 150 7 0.12
CPJ125-200-200 130 1 250 5 0.3
CPJ150-200-200 300 1.25 400 4 0.25
CPJ150-200-250 300 1.15 470 5 0.25
CPJ200-200-250 170 0.25 600 0.1
CPJ200-250-300 600 1.2 340 4 0.1
CPJ250-250-300 250 0.3 1050 0.15
CPJ250-300-350 630 1.3 750 5 0.25
CPJ300-300-350 400 0.3 1750 0.15

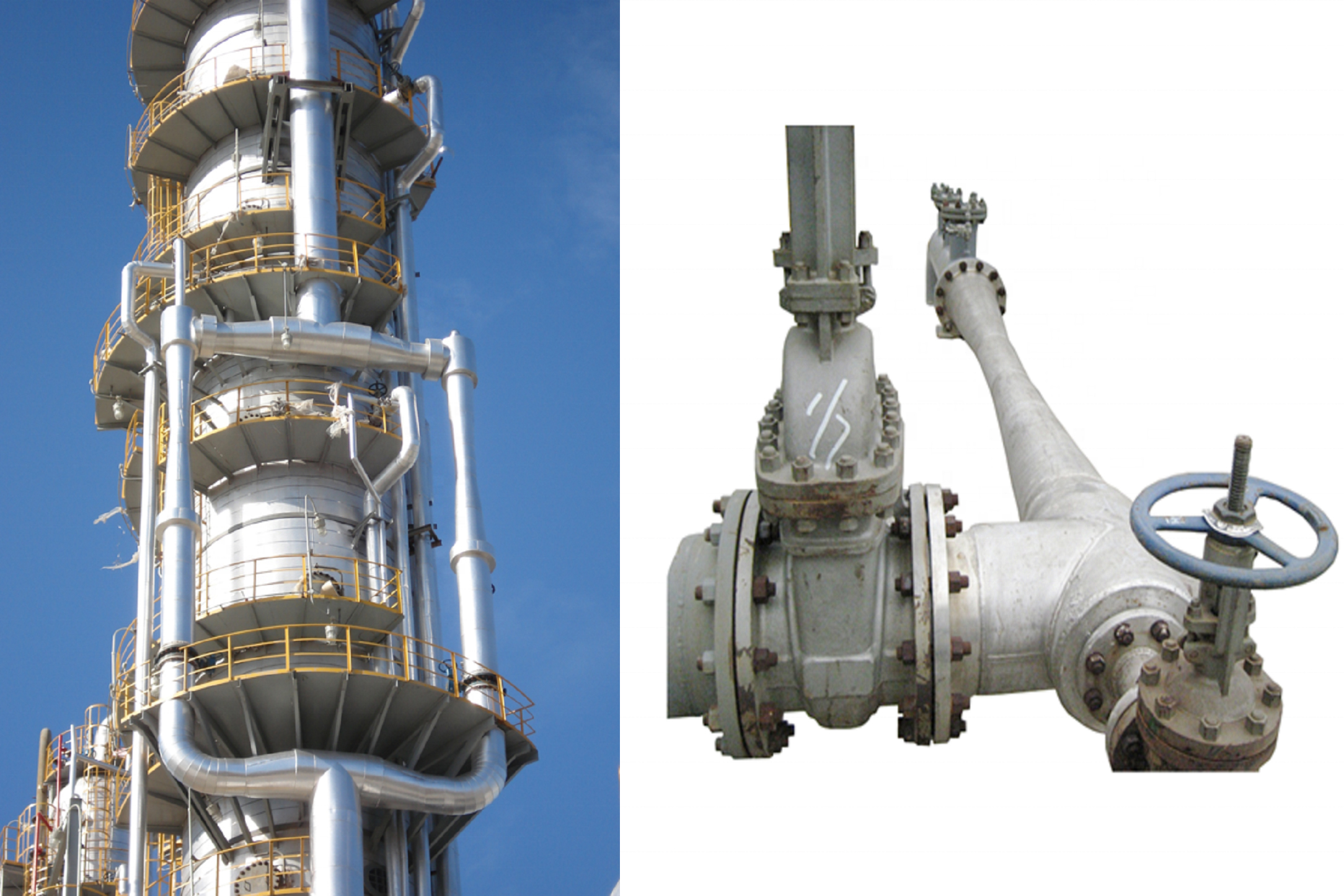

The Picture of CPJ Series Marine Jet Pump

Picture of CPJ Jet Pump

Picture of CPJ Jet Pump.
