CNFS Marine Hot-water Fan Heater

CNFS Marine Hot-water Fan Heater

1. Introduction:

The heating unit, with 90℃ hot water as the heating medium, is a critical equipment in main engine room, auxiliary machinery compartment and other compartments.

When the ship is pulled in and ambient temperature is close to 0℃, the unit must be started to keep the temperature in each compartment above 0℃ to avoid the damage of the equipment and pipelines inside due to low temperature and facilitate the preparation for next voyage of the ship.

This equipment is composed of heat radiation coil pipe and axial fan.

2. Features:

Good performance

Simple installation

Uniform temperature regulation

Cycle operation

Fast temperature rise

Durable

3. Main Parameters:

Type

Heating Capacity

Heating Water Temp.

(In/Out)

Heating Water

Consumption

Water Press.Drop

Air flow

Supply air temp.

Fan motor power

noise

weight

Power supply

CNFS324

15.81

90/70

678

326

2350

37.3

0.2

63

~33

AC380V/440V 3Ph 50/60Hz


AC220V/230V 1Ph 50/60Hz

CNFS334

18.72

90/70

805

340

2330

41.6

0.2

63

~39

CNFS524

28.37

90/70

1220

1280

5050

33.6

0.37

70

~50

CNFS534

41.28

90/70

1775

2000

4980

42.5

0.37

70

~60

4. Shape Diagram

Type

L(mm)

L1

H

W

B

B1

DN

CNFS324

600

490

600

450

240

140

DN25

CNFS334

600

490

600

450

240

140

DN25

CNFS524

750

590

750

550

280

215

DN32

CNFS534

750

590

750

550

280

215

DN32

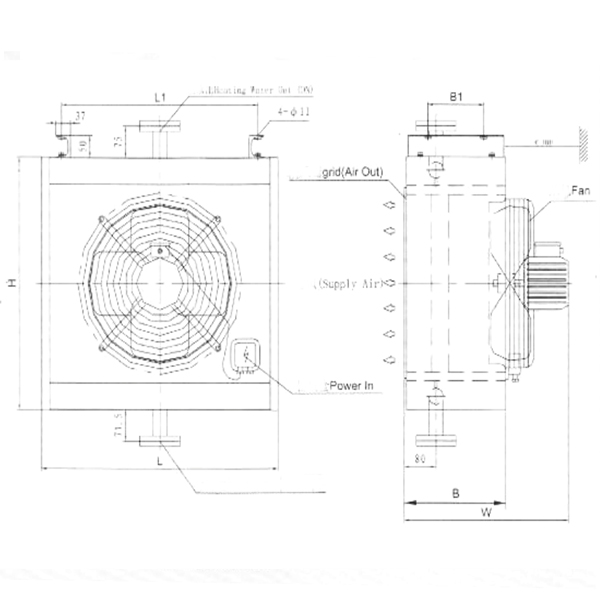

5. Outline Drawing:


6. Product Showing:
