CLZ Series Marine Vertical self-priming Centrifugal Pump

CLZ Series Marine Vertical self-priming Centrifugal Pump



Overview

CLZ Series marine vertical self-priming centrifugal pump, has the advantages of small volume, light weight, good self-priming performance, convenient installation and operation, etc.. Applicable to all kinds of ships for bilge pump, ballast pump, fire pump, cooling pump and other equipment supporting the use of. Transmission medium temperature is not higher than 80℃.

Model Explanation  100CLZ-13A

100 — Inlet and outlet diameter 100 mm

CLZ — Marine vertical self-priming centrifugal pump

12  — Specific speed divided by 10

A(B)— Impeller processed with 1(2)time cutting

CLZ Series Marine Vertical self-priming Centrifugal Pump Structure

Performance Parameter

Performance and parameter table for the power supply frequency of 50Hz 3φ 380V

Type (50Hz 3φ 380V) Main technical parameter Motor type & power (kW) Weight (Kg)
Capacity

(m3

/h)
Head(m) Speed(r/min) NPSH(rm) Shaft power (kW)
40CLZ-2 5 60 2900 3.5 3.9 Y132S1-2H, 5.5 170
40CLZ-2A 4 54 2900 3.5 3.2 Y132S1-2H, 5.5 170
40CLZ-4Z 5 32 2900 3.5 1.6 Y90L-2H, 2.2 126
40CLZ-4AZ 5 22 2900 3.5 1.2 Y90S-2H, 1.5 123
50CLZ-4Z 20 50 2900 3.2 6.1 Y132S2-2H, 7.5 175
50CLZ-4AZ 17 46 2900 3.2 5 Y132S2-2H, 7.5 175
50CLZ-4.5Z 12.5 32 2900 3.2 2.5 Y112M-2H, 4 155
50CLZ-4.5AZ 10 28 2900 3.2 1.8 Y100L-2H, 3 144
50CLZ-6 20 32 2900 3.2 3.2 Y112M-2H, 4 162
50CLZ-6S
50CLZ-6A 17 28 2900 3.2 2.5 Y112M-2H, 4 162
50CLZ-6AS
50CLZ-7AZ 10 17 2900 3.5 1.2 Y90L-2H, 2.2 135
50CLZ-9Z 25 14.5 2900 3.5 1.7 Y100L-2H, 3 144
65CLZ-4 35 70 2900 3.2 13.9 Y160L-2H, 18.5 438
65CLZ-4A 32 65 2900 3.2 12.1 Y160M2-2H, 15 413
65CLZ-4B 20 60 2900 3.5 9.2 Y160M1-2H, 11 398
65CLZ-5.5 35 50 2900 3.2 9.5 Y160M2-2H, 15 413
65CLZ-5.5Z 293
65CLZ-5.5A 30 48 2900 3.2 8.2 Y160M1-2H, 11 408
65CLZ-5.5AZ 288
65CLZ-6 25 32 2900 3.2 4.2 Y132S1-2H ,5.5 176
65CLZ-6S
65CLZ-6SZ
65CLZ-6A 21 28 2900 3.2 3.1 Y112M-2H, 4 150
65CLZ-6AS
65CLZ-6ASZ
65CLZ-8 35 32 2900 3.2 5.6 Y132S2-2H, 7.5 265
65CLZ-8A 32 28 2900 3.2 4.5 Y132S1-2H, 5.5 260
65CLZ-9Z 25 20 2900 3.5 2.3 Y100L-2H, 3 144
65CLZ-9AZ 21 17 2900 3.5 1.6 Y90L-2H, 2.2 135
80CLZ-3 50 120 2900 3.5 35.5 Y225M-2H, 45 668
80CLZ-3A 45 110 2900 3.5 29.3 Y200L2-2H, 37 583
80CLZ-4 50 80 2900 3.5 21.8 Y200L1-2H, 30 495
80CLZ-4A 50 70 2900 3.5 19.5 Y180M-2H, 22 460
80CLZ-4B 45 62 2900 3.5 16.2 Y160L-2H, 18.5 440
80CLZ-6 50 50 2900 3.5 11.7 Y160M2-2H, 15 355
80CLZ-6A 45 48 2900 3.5 10.3 Y160M2-2H, 15 355
65CLZ-8 35 32 2900 3.2 5.6 Y132S2-2H, 7.5 265
65CLZ-8A 32 28 2900 3.2 4.5 Y132S1-2H, 5.5 260
65CLZ-9Z 25 20 2900 3.5 2.3 Y100L-2H, 3 144
65CLZ-9AZ 21 17 2900 3.5 1.6 Y90L-2H, 2.2 135
80CLZ-3 50 120 2900 3.5 35.5 Y225M-2H, 45 668
80CLZ-3A 45 110 2900 3.5 29.3 Y200L2-2H, 37 583
80CLZ-4 50 80 2900 3.5 21.8 Y200L1-2H, 30 495
80CLZ-4A 50 70 2900 3.5 19.5 Y180M-2H, 22 460
80CLZ-4B 45 62 2900 3.5 16.2 Y160L-2H, 18.5 440
80CLZ-6 50 50 2900 3.5 11.7 Y160M2-2H, 15 355
80CLZ-6A 45 48 2900 3.5 10.3 Y160M2-2H, 15 355
80CLZ-6B 40 42 2900 3.8 8.5 Y160M1-2H, 11 346
80CLZ-6BS 42 2900
80CLZ-9 50 32 2900 3.5 5.6 Y160M1-2H, 11 345
80CLZ-9A 45 28 2900 3.5 5.6 Y132S2-2H, 7.5 300
80CLZ-9B 54 21 2900 3.5 5.1 Y132S2-2H, 7.5 300
80CLZ-13 45 21 2900 4.5 4.6 Y132S1-2H, 5.5 195
80CLZ-14S 60 20 2900 4 5.8 Y132S2-2H, 7.5 316
100CLZ-5 100 120 2900 4.5 62.8 Y280S-2H, 75 880
100CLZ-5A 95 110 2900 4.5 55.8 Y280S-2H, 75 880
100CLZ-5B 80 100 2900 4.5 43.6 Y250M-2H, 55 738
100CLZ-5C 75 95 2900 4.5 39.6 Y225M-2H, 45 668
100CLZ-6 80 80 2900 4 34.2 Y200L2-2H, 37 583
100CLZ-6A 72 75 2900 4.5 29.4 Y200L2-2H, 37 583
100CLZ-6B 75 62 2900 4.5 26.4 Y200L1-2H, 30 553
100CLZ-6.5 100 80 2900 4.5 39.6 Y225M-2H, 45 668
100CLZ-6.5A 95 75 2900 4.5 35.9 Y225M-2H, 45 668
100CLZ-8 80 50 2900 4 18.8 Y180M-2H, 22 495
100CLZ-8A 72 46 2900 4 15.8 Y160L-2H, 18.5 468
100CLZ-9 100 50 2900 4.5 22 Y200L1-2H, 30 593
100CLZ-9A 95 46 2900 4.5 19.5 Y180M-2H, 22 560
100CLZ-12 80 32 2900 4 11.6 Y160M2-2H, 15 468
100CLZ-12A 72 28 2900 4 9.3 Y160M1-2H, 11 459
100CLZ-13 100 32 2900 4.8 13.8 Y160L-2H, 18.5 492
100CLZ-13A 95 28 2900 4.8 11.7 Y160M2-2H, 15 468
100CLZ-17 80 20 2900 4 7.3 Y160M1-2H, 11 459
100CLZ-18.5 100 20 2900 4.8 9.1 Y160M1-2H, 11 459
100CLZ-18.5A 95 18 2900 4.8 8 Y160M1-2H, 11 459
125CLZ-6 160 120 2900 5.2 95.1 Y315S-2H, 110
125CLZ-6A 150 110 2900 5.2 83.2 Y315S-2H, 110
125CLZ-6B 140 110 2900 5.2 77.1 Y280M-2H, 90
125CLZ-8 160 80 2900 5.2 60.1 Y280S-2H, 75
125CLZ-8A 150 75 2900 5.2 52.8 Y280S-2H, 75
125CLZ-8B 140 68 2900 5.2 48.7 Y250M-2H, 55 742
125CLZ-12 160 50 2900 5.2 35.1 Y225M-2H, 45 672
125CLZ-12A 150 46 2900 5.2 30.8 Y200L2-2H, 37 587
125CLZ-16.5 160 32 2900 5.2 22.1 Y200L1-2H, 30 557
125CLZ-16.5A 150 28 2900 5.2 18.4 Y180M-2H, 22 522
125CLZ-23.5 160 20 2900 5.2 15.2 Y160L-2H, 18.5 502
125CLZ-23.5A 150 18 2900 5.2 12.9 Y160M2-2H, 15 477
150CLZ-14 250 50 2900 6 53.2 Y280S-2H, 75 913
150CLZ-14A 240 46 2900 6 47.7 Y250M-2H, 55 778
150CLZ-21 250 32 2900 6 33.5 Y225M-2H, 45 708
150CLZ-21A 240 28 2900 6 28.2 Y200L2-2H, 37 623
200CLZ-12 300 30 1450 5.5 40.9 Y225M-4H, 45 808
200CLZ-12A 280 25 1450 5.5 32.9 Y225S-4H, 37 774
200CLZ-24.5 450 15 1450 6 34 Y225S-4H, 37 774

Performance and parameter table for the power supply frequency of 60Hz 3φ 440V (continued):
Type (60Hz 3φ 440V) Main technical parameter Motor type & power(kW) Weight (Kg)
Capacity(

m3 /h)

Head(m) Speed(r/min) NPSH(r m) Shaft power (kW)
40CLZ1-2 6 85 3500 4 6.6 Y160M1-2H, 11

40CLZ1-2A 5 78 3500 4 5.5 Y132S2-2H, 7.5

40CLZ1-4Z 6 46 3500 4 2.8 Y112M-2H, 4

40CLZ1-4AZ 6 32 3500 4 2.1 Y100L-2H, 3

50CLZ1-4Z 24 72 3500 4 10.5 Y160M2-2H, 15

50CLZ1-4AZ 20 65 3500 4 8.2 Y160M1-2H, 11

50CLZ1-4.5Z 15 45 3500 4 4.3 Y132S1-2H, 5.5

50CLZ1-4.5AZ 12 40 3500 4 3.1 Y112M-2H, 4

50CLZ1-6 24 45 3500 4 5.5 Y132S2-2H, 7.5

50CLZ1-6S

50CLZ1-6A 20 40 3500 4 4.2 Y132S1-2H, 5.5

50CLZ1-6AS

50CLZ1-7Z 15 29 3500 4 3 Y112M-2H, 4

50CLZ1-7AZ 12 25 3500 4 2.1 Y100L-2H, 3

50CLZ1-9Z 30 21 3500 4 2.9 Y112M-2H, 4

65CLZ1-4 42 100 3500 4 23.9 Y200L1-2H, 30

65CLZ1-4A 38 93 3500 4 20.5 Y200L1-2H, 30

65CLZ1-4B 24 86 3500 4 15.6 Y180M-2H, 22

65CLZ1-5.5 42 72 3500 4 16.5 Y180M-2H, 22

65CLZ1-5.5A 36 69 3500 4 14.1 Y160L-2H, 18.5

65CLZ1-6 30 45 3500 4 7.1 Y160M1-2H, 11

65CLZ1-6S

65CLZ1-6SZ

65CLZ1-6A 25 40 3500 4 5.3 Y132S2-2H, 7.5

65CLZ1-6AS

65CLZ1-6ASZ

65CLZ1-8 42 45 3500 4 9.4 Y160M2-2H, 15

65CLZ1-8A 38 40 3500 4 7.7 Y160M1-2H, 11

65CLZ1-9Z 30 29 3500 4.2 4 Y132S1-2H, 5.5

65CLZ1-9AZ 25 25 3500 4.2 3 Y112M-2H, 4

80CLZ1-4 60 115 3500 4.2 37.6 Y225M-2H, 45

80CLZ1-4A 60 100 3500 4.2 33.4 Y200L2-2H, 37

80CLZ1-4B 54 89 3500 4.2 27.9 Y200L2-2H, 37

80CLZ1-6 60 72 3500 4.2 20.3 Y200L1-2H, 30

80CLZ1-6A 54 69 3500 4.2 17.8 Y180M-2H, 22

80CLZ1-6B 48 60 3500 4.5 14.5 Y160L-2H, 18.5

80CLZ1-9 60 45 3500 4.2 11.9 Y160M2-2H, 15

80CLZ1-9A 54 40 3500 4.2 9.6 Y160M2-2H, 15

80CLZ1-9B 65 30 3500 4.2 8.9 Y160M1-2H, 11

80CLZ1-13 54 30 3500 5 8 Y160M1-2H, 11

80CLZ1-14S 72 28 3500 4.5 9.8 Y160M2-2H, 15

100CLZ1-6 95 115 3500 45 58.3 Y280S-2H, 75

100CLZ1-6A 85 108 3500 5 50 Y250M-2H, 55

100CLZ1-6B 90 89 3500 5 45.4 Y250M-2H, 55

100CLZ1-6.5 120 115 3500 5 68.3 Y280M-2H, 90

100CLZ1-6.5A 114 108 3500 5 62.1 Y280S-2H, 75

100CLZ1-8 95 72 3500 4.5 32.1 Y200L2-2H, 37

100CLZ1-8A 85 65 3500 4.5 26.4 Y200L2-2H, 37

100CLZ1-9 120 72 3500 5 38 Y225M-2H, 45

100CLZ1-9A 114 65 3500 5 33.1 Y225M-2H, 45

100CLZ1-12 95 45 3500 4.5 19.4 Y200L1-2H, 30

100CLZ1-12A 85 40 3500 4.5 15.7 Y160L-2H, 18.5

100CLZ1-13 120 45 3500 5.3 23.3 Y200L1-2H, 30

100CLZ1-13A 114 40 3500 5.3 20 Y200L1-2H, 30

100CLZ1-17 95 28 3500 4.5 12.1 Y160M2-2H, 15

100CLZ1-18.5 120 28 3500 5.3 15.3 Y180M-2H, 22

100CLZ1-18.5A 114 25 3500 5.3 13.4 Y160L-2H, 18.5

125CLZ1-8 192 115 3500 6.5 103.7 Y315M-2H, 132

125CLZ1-8A 180 108 3500 6.5 91.3 Y315S-2H, 110

125CLZ1-8B 180 95 3500 6.5 81.7 Y280M-2H, 90

125CLZ1-12 192 72 3500 5.8 60.7 Y280S-2H, 75

125CLZ1-12A 180 65 3500 5.8 52.2 Y280S-2H, 75

125CLZ1-16.5 192 45 3500 5.8 37.4 Y225M-2H, 45

125CLZ1-16.5A 180 40 3500 5.8 31.6 Y200L2-2H, 37

125CLZ1-23.5 192 28 3500 5.8 22.5 Y200L1-2H, 30

125CLZ1-23.5A 180 25 3500 5.8 19.2 Y200L1-2H, 30

150CLZ1-14 300 72 3500 7 91.9 Y315S-2H, 110

150CLZ1-14A 288 66 3500 7 82.2 Y280M-2H, 90

150CLZ1-21 300 46 3500 7 57.8 Y280S-2H, 75

150CLZ1-21A 288 40 3500 7 48.3 Y250M-2H, 55

200CLZ1-12 360 43 1740 6.5 70.3 Y280M-4H, 90

200CLZ1-12A 336 36 1740 6.5 56.8 Y280S-4H, 75

200CLZ1-24.5 540 21 1740 7 57.2 Y280S-4H, 75

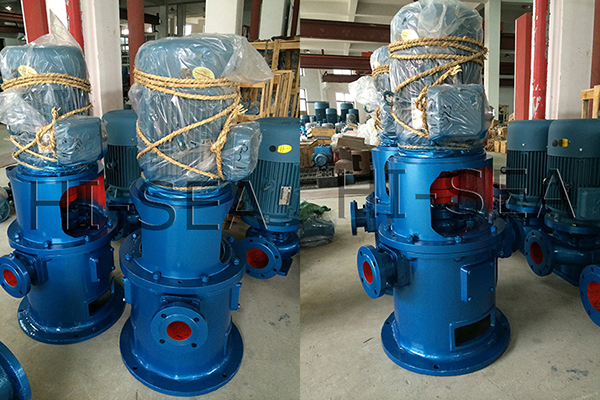

CLZ Series Marine Vertical self-priming Centrifugal Pump in Factory
