Introduction:

The CBZ-80B Marine Fan is a high-performance axial fan designed for marine ventilation systems. It is manufactured by Zhejiang Dun'an Artificial Environment Co., Ltd., a leading supplier of marine ventilation equipment in China.

The CBZ-80B Marine Fan is constructed with a die-cast aluminum alloy casing, which makes it lightweight and corrosion-resistant. The impeller blades are made of high-strength aluminum alloy, which provides superior airflow and minimizes noise levels.

The CBZ-80B Marine Fan has a maximum airflow rate of 4000m³/h, making it suitable for use in various marine environments, including cargo holds, engine rooms, and other confined spaces. It is also designed to operate under harsh conditions, with a temperature range of -25°C to 50°C.

The CBZ-80B Marine Fan is easy to install and maintain. It has a compact design, making it suitable for use in limited spaces. Additionally, it comes with a range of safety features, such as overload protection, overheat protection, and phase failure protection, which ensures safe and reliable operation.

Overall, the CBZ-80B Marine Fan is a high-quality ventilation solution for marine applications, providing superior performance, durability, and safety features.

Main Property Parameters and Dimensions:

Type

Flow rate m³/h

Total pressure

Pa

Static pressure

Pa

Speed r/min

Motor

Dimensions

Weight

Freq

Hz

Power

Kw

Type

D

D

D

D

H

H

H

L

T

n*d

CBZ-80B

18000

520

460

1460

50

5.5

YB132

S-4H

Ø800

Ø870

Ø910

Ø1356

380

665

945

780

12

16*19

240

225

21000

450

270

24000

380

280

27000

290

160

21000

740

660

1750

60

7.5

YB132

M-4H

985

255

240

25000

640

530

28000

540

400

32000

420

230

Outline Drawing:

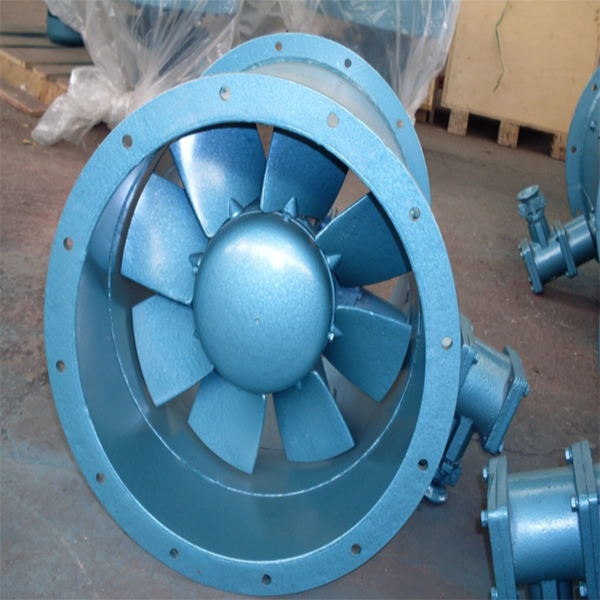

Product Showing:
