CB T3885-99 Deck drain

CB T3885-99 Deck drain


CB T3885-99 Deck drain

1. Application
CB T3885-99 Deck drain is used for ship deck and indoor drainage.
2. Details
Product model: CB/T3885-99 Scupper
Working circumstance: indoor deck and indoor draining pipe
Flange connection standard: GB 2501-89
Material: q235-a for body, flase floor, QA19-2 for stem
3. Main external and connection dimension

Y type

DN

Flange

Height

Length

D

C

n

d

H1

H2

D2

32

120

90

4

14

70

110

88.5

40

130

100

4

14

70

110

88.5

50

140

110

4

14

70

110

114

65

160

130

4

14

70

110

133

T type

DN

Flange

Height

Length

D

C

n

d

H1

H2

A

80

190

150

4

18

110

150

210

100

210

170

4

18

110

150

250

125

240

200

8

18

110

150

300

150

265

225

8

18

110

150

350

SA TYPE

DN

Flange

Height

Length

D

C

n

d

H

D2

40

130

100

4

14

120

114

50

140

110

4

14

120

114

65

160

130

4

14

120

140

80

190

150

4

18

170

165

100

210

170

4

18

170

203

SB type

DN

Flange

Height

Length

D

C

n

d

H

D2

40

130

100

4

14

100

133

50

140

110

4

14

100

133

65

160

130

4

14

100

159

80

190

150

4

18

150

180

100

210

170

4

18

150

203

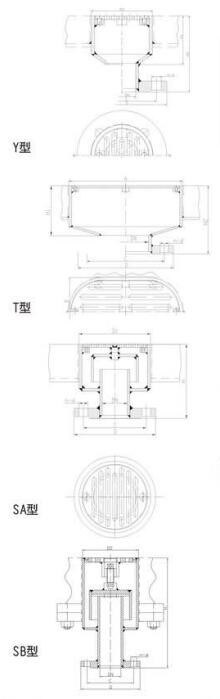

4. Outline drawing


CB T3885-99 Deck drain
